Firing Order & Timing Marks

WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford Econoline, 1995 Ford Club Wagon, and 1995 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For firing order and timing marks, See Fig 1.

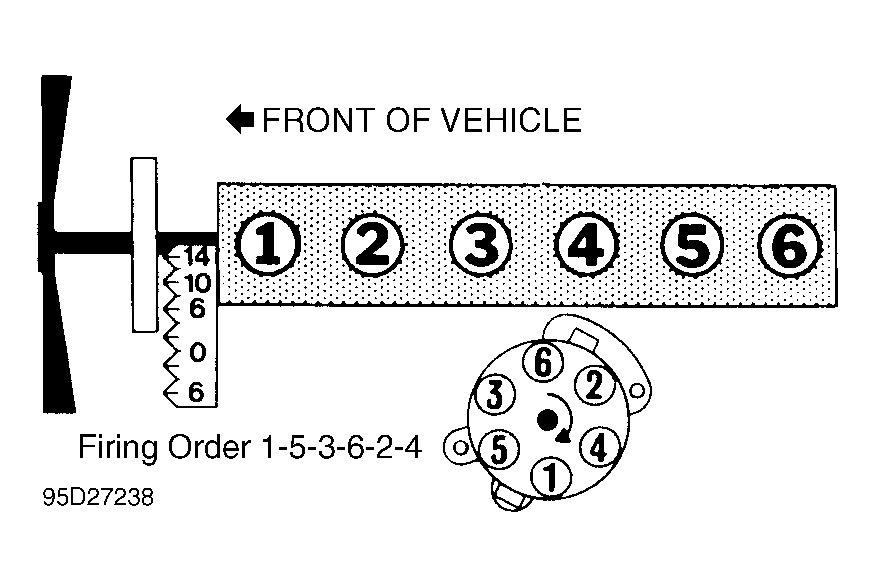

Fig 1: Identifying Firing Order & Timing Marks (4.9L)
G95D27238
