Section 122 (Engine Controls - Tests W/Codes - EEC-V (4.0L))
>>
Diagnostic Trouble Code (DTC) Reference Charts
>>
DTC Reference Chart 5 & 6 (Code P1355-P1787)
DTC Reference Chart 5 & 6 (Code P1355-P1787)
WARNING:
This page is about a different car, the 1995 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

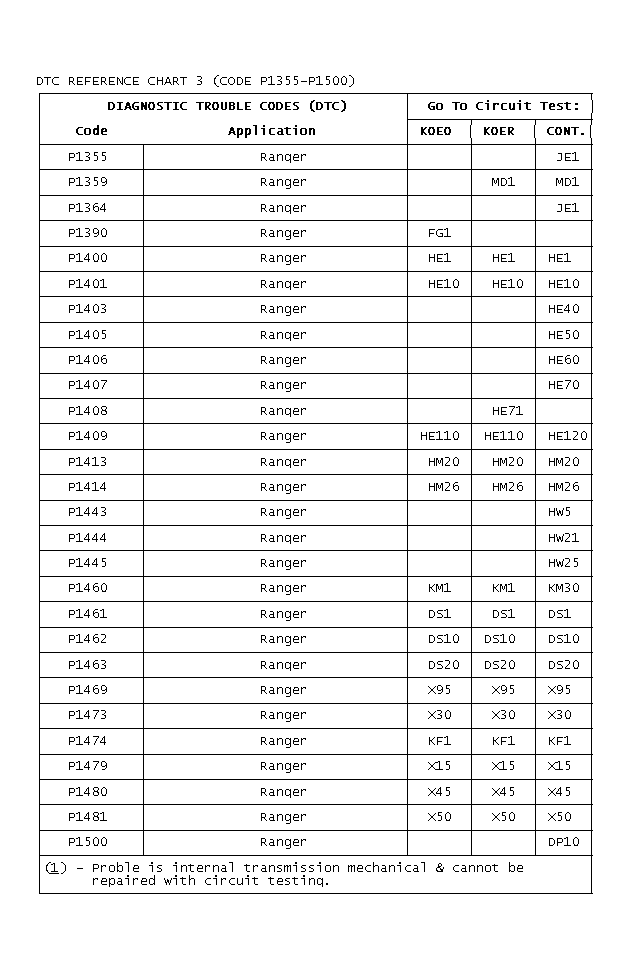

Fig 1: DTC REFERENCE CHART 5 (CODE P1355-P1500)

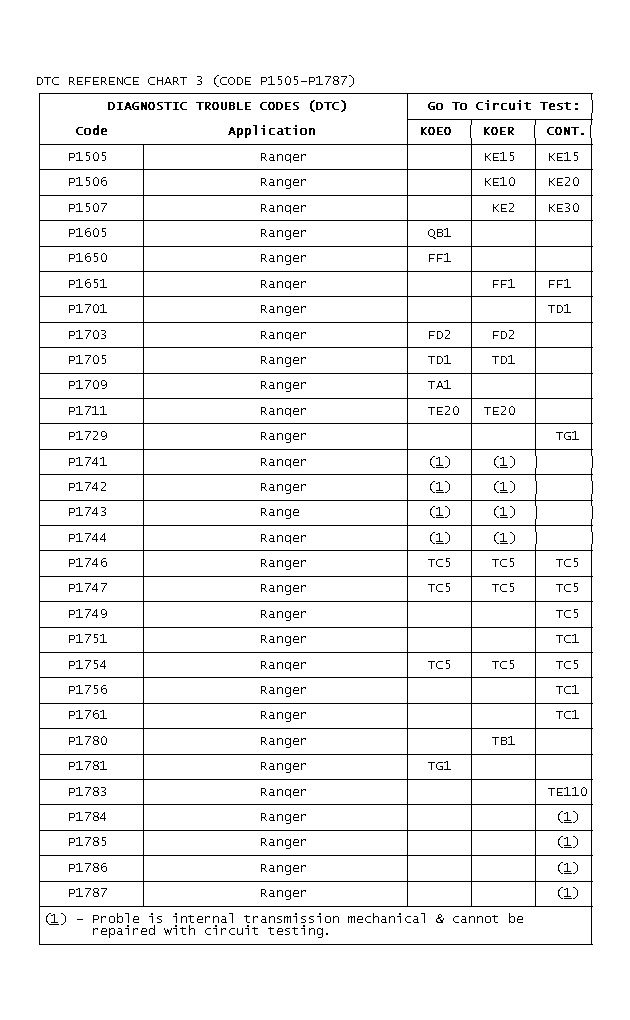

Fig 2: DTC REFERENCE CHART 6 (CODE P1505-P1787)
