Diagnostic Trouble Code Definition Charts

WARNING: This page is about a different car, the 1995 Ford Explorer and 1995 Ford Aerostar. However, it is still accessible from the selected car via links, so may be relevant.

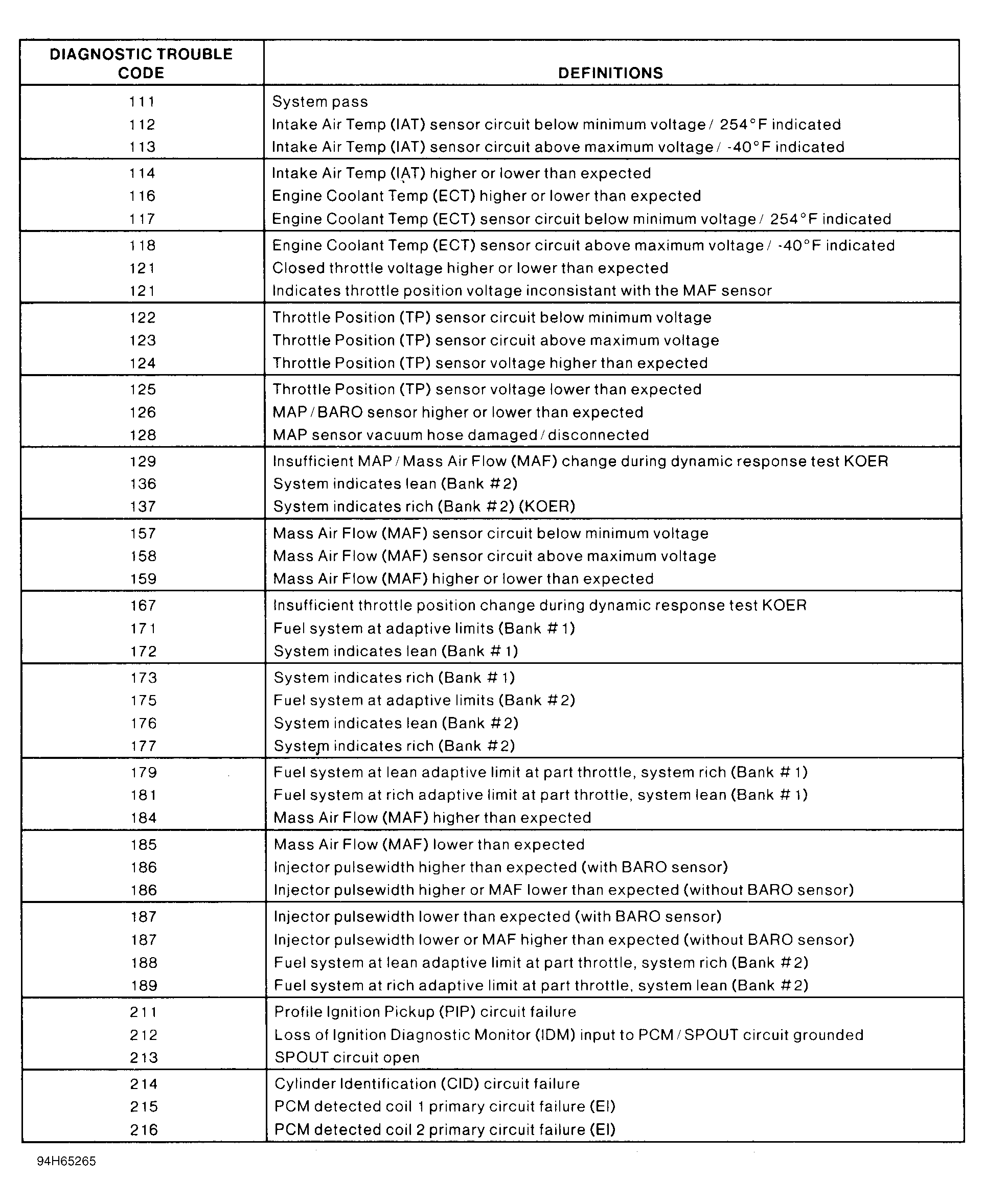

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 2)
G94H65265Courtesy of FORD MOTOR CO.

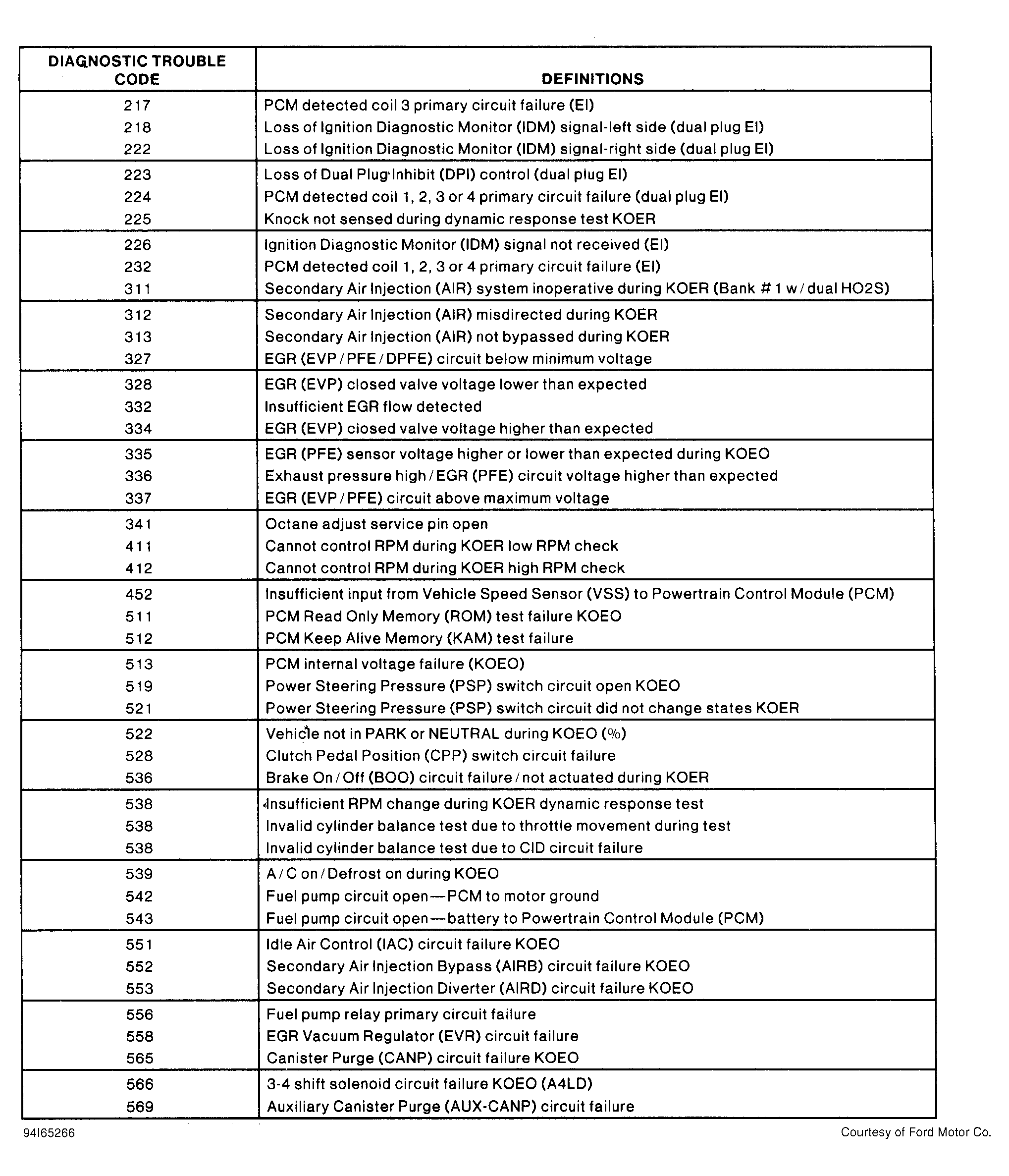

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 2)
G94I65266Courtesy of FORD MOTOR CO.

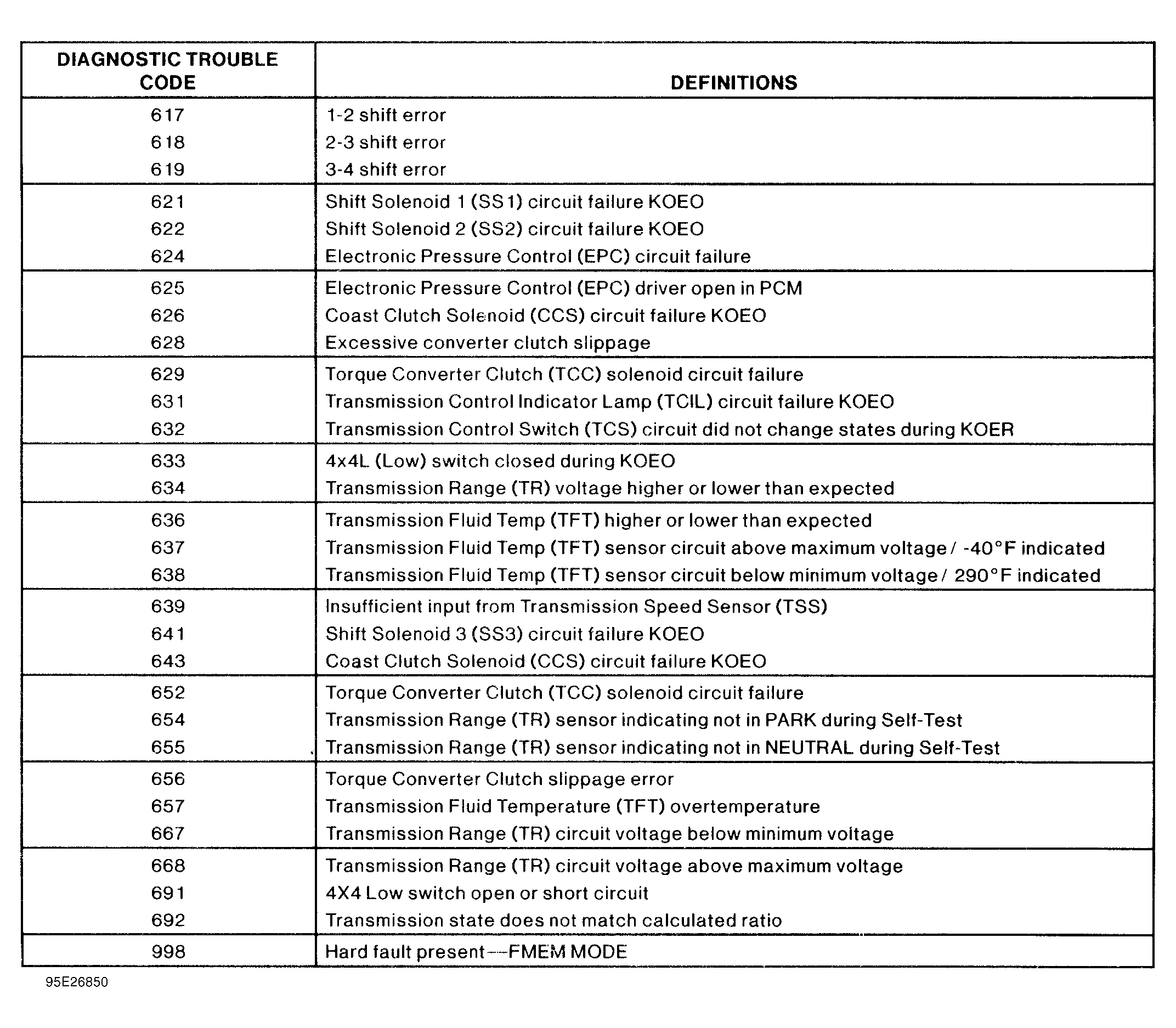

Fig 3: Diagnostic Trouble Code Definition Chart (3 Of 2)
G95E26850Courtesy of FORD MOTOR CO.
