Fuel Pump Relay
WARNING: This page is about a different car, the 1995 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

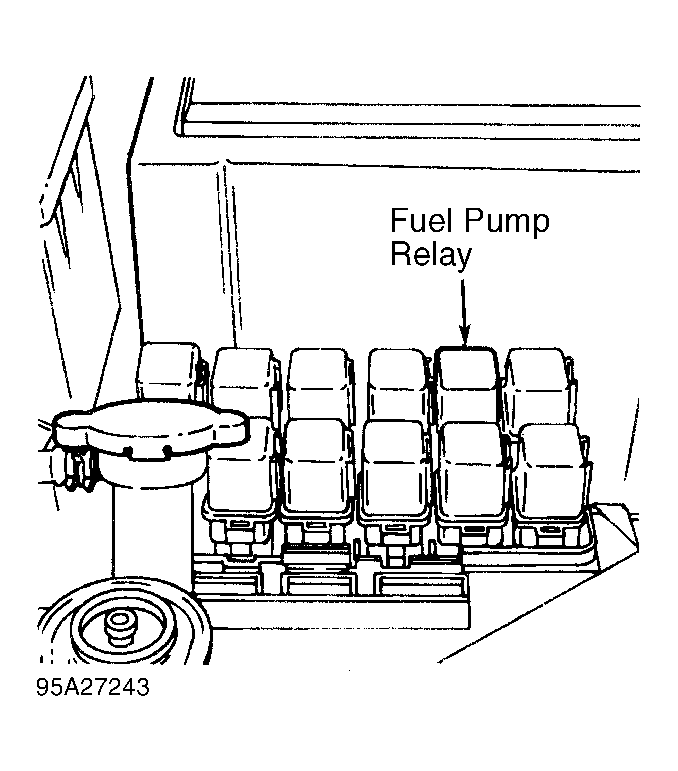

Fuel pump relay is activated while cranking. After cranking, a switch ground closes (if engine is running) and completes ground circuit to relay. Relay ground circuit is controlled by the PCM. Fuel pump relay is located in left front engine compartment relay panel. See Fig 1 .
