Fuel Pump
WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford F-Super Duty, and 1995 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

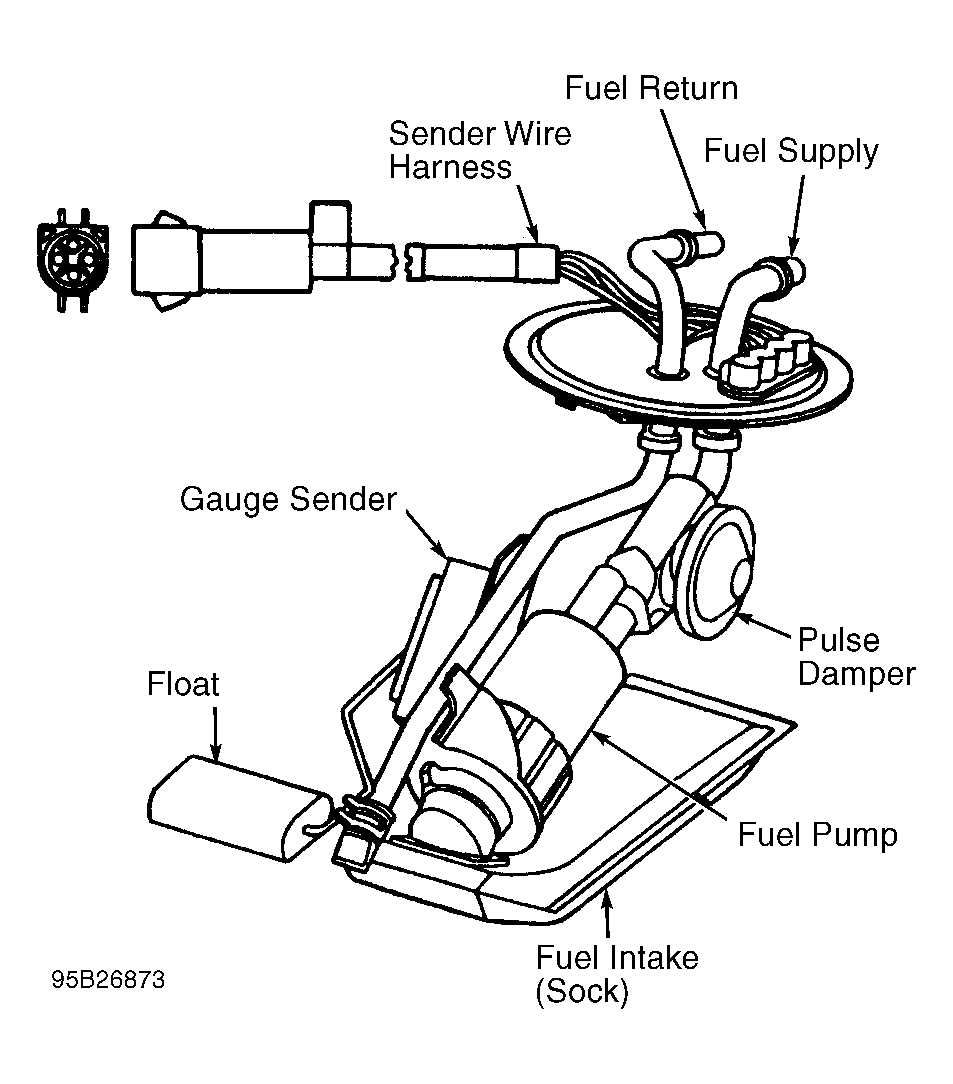

Fuel is supplied by an in-tank electric fuel pump. See Figure . Pump has a discharge check valve to maintain system pressure during shutdown and minimize starting problems.
Pump delivers fuel from fuel tank through fuel filter to fuel charging manifold assembly (fuel rail). Fuel charging manifold assembly incorporates electrically actuated fuel injectors directly above each intake port. Injectors spray metered quantity of fuel into intake air stream. Constant fuel pressure to injector nozzles is maintained by fuel pressure regulator.
