DTC P1650 & P1651: Power Steering Pressure Switch Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

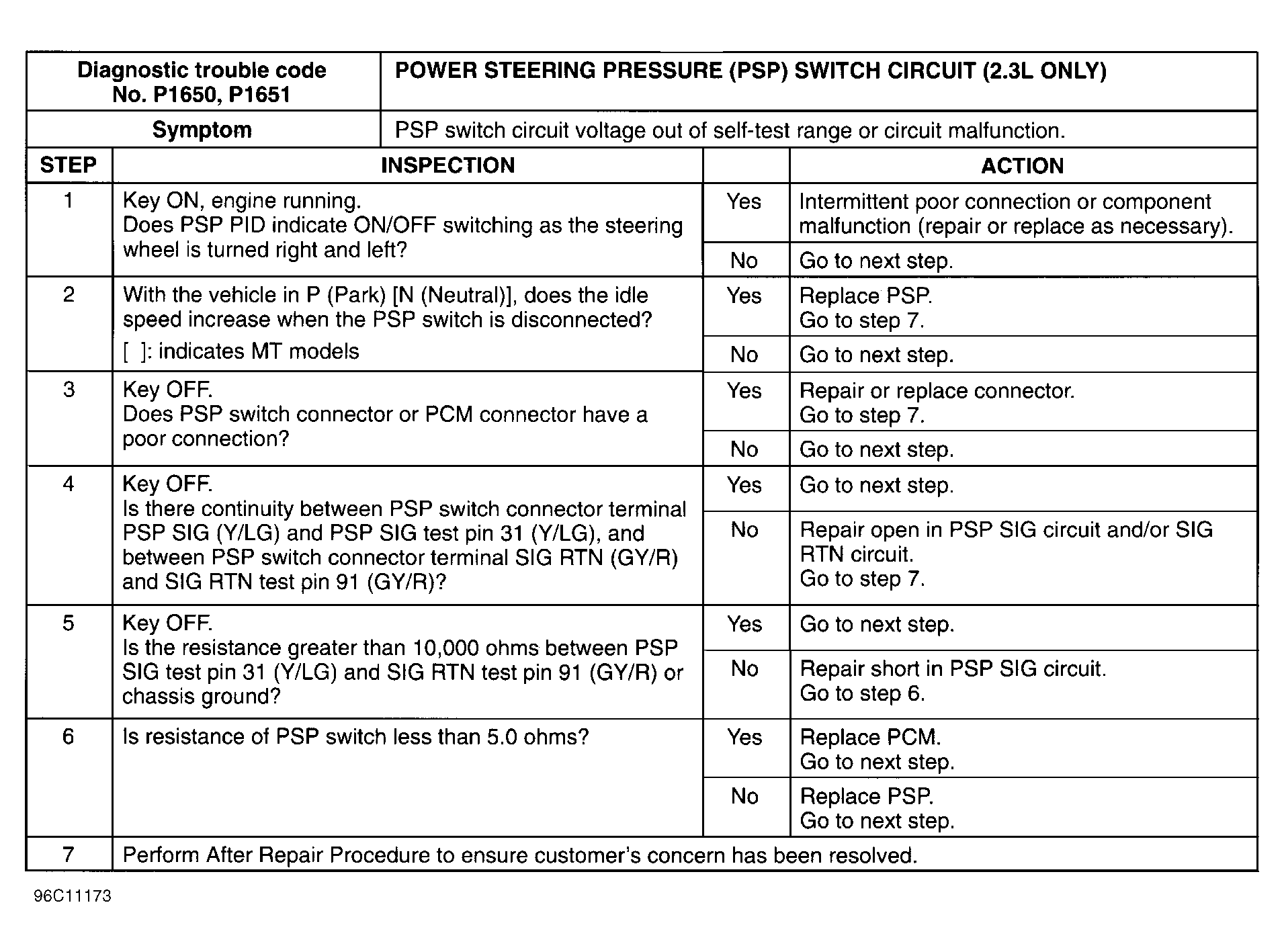

Fig 1: DTC P1650 & P1651 P/S PRES. Switch CIRCUIT Malfunction

Fig 2: P/S PRES. (PSP) Switch CIRCUIT Diagram
