DTC P1460: Wot Cut-Off Relay Circuit/DTC P1464 A/C Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

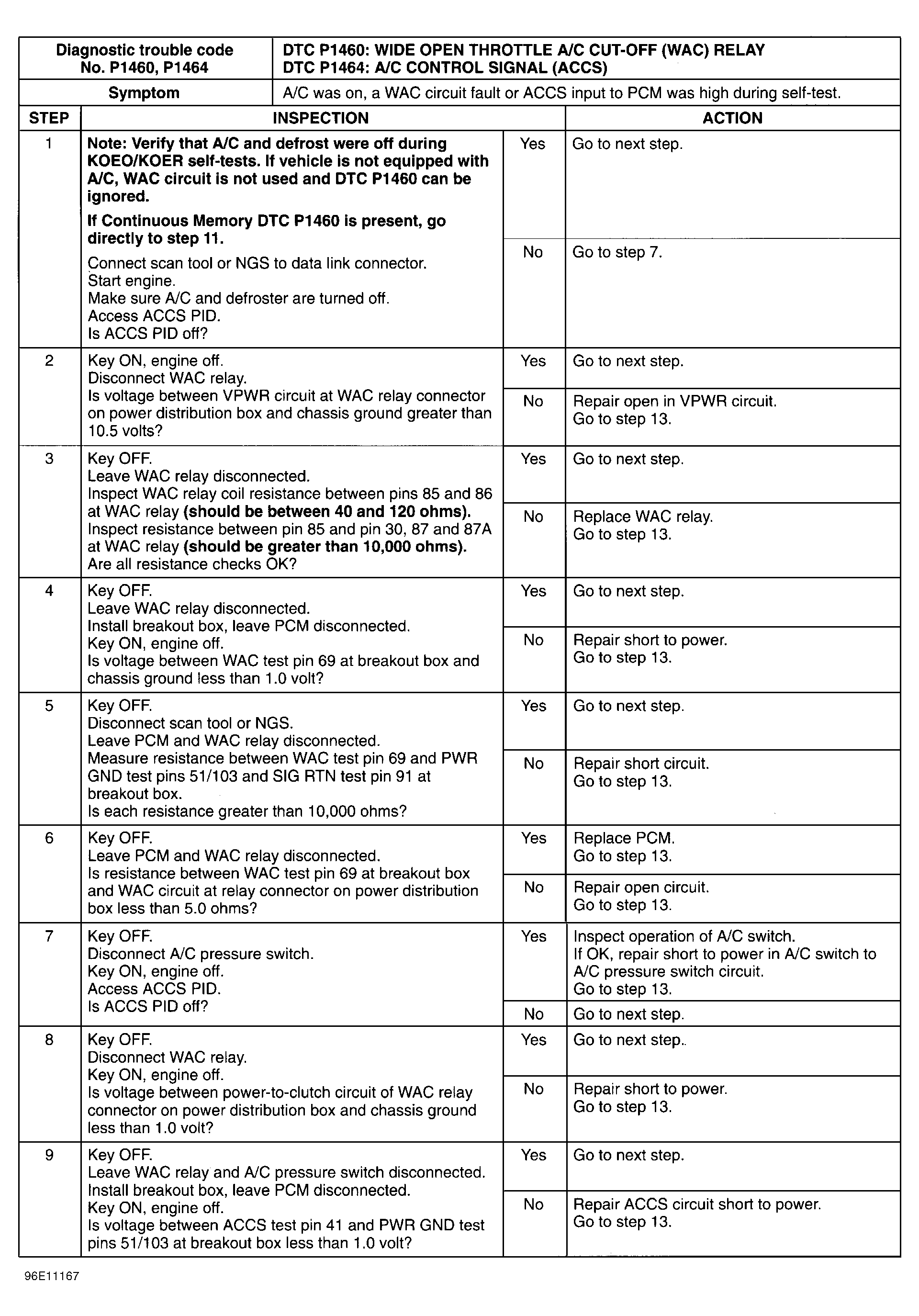

Fig 1: DTC P1460 & P1464 (1 OF 2)

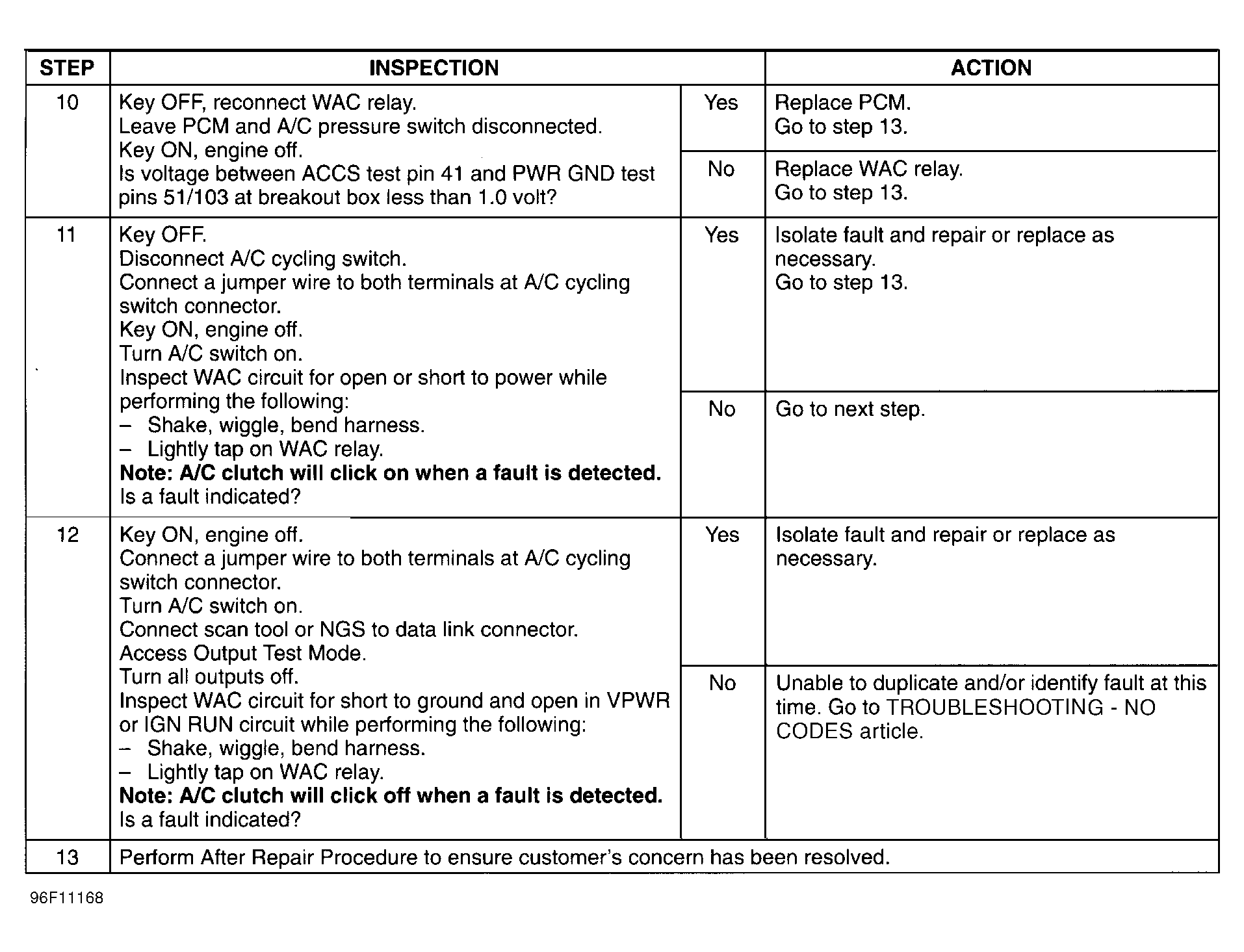

Fig 2: DTC P1460 & P1464 (2 OF 2)

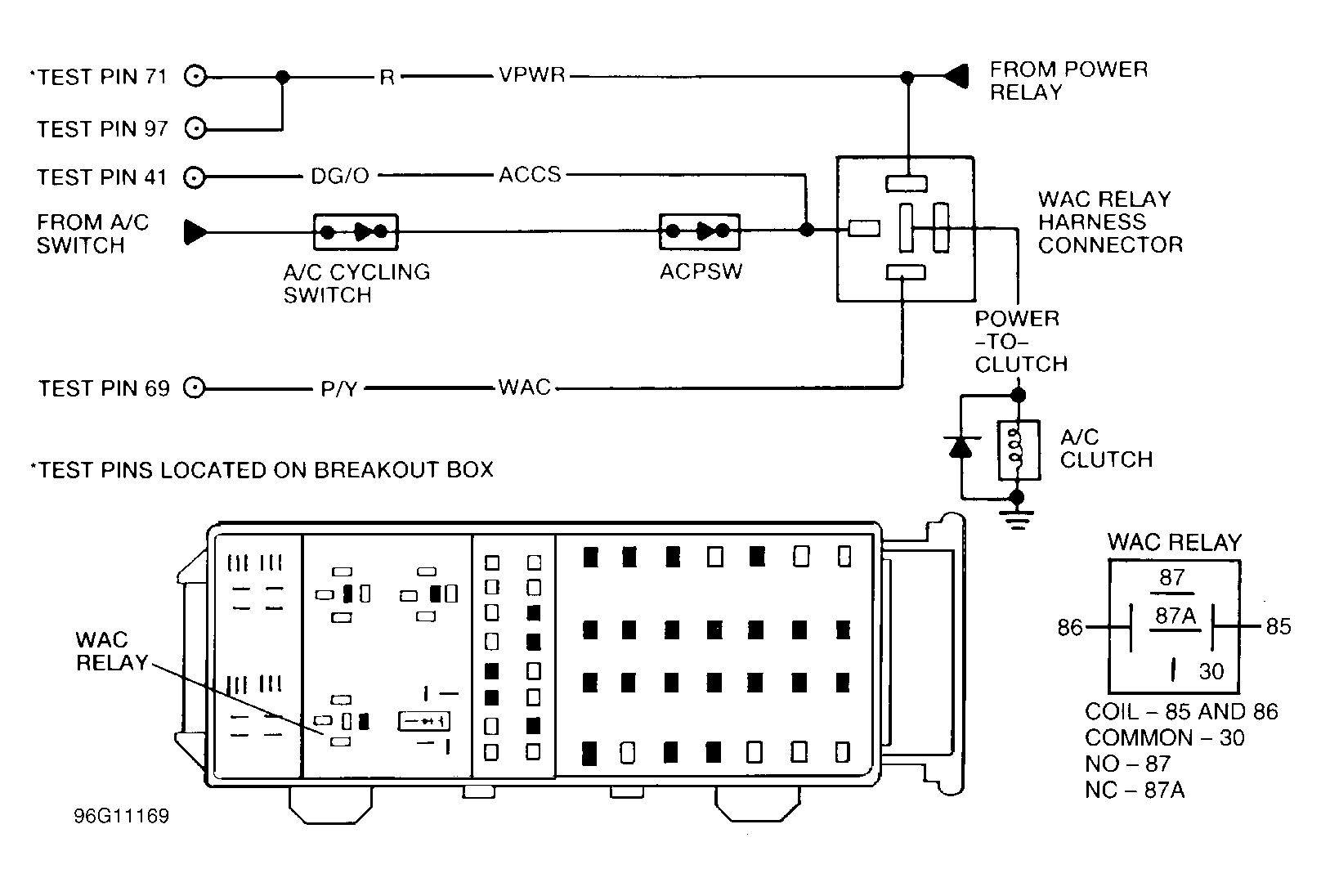

Fig 3: WOT CUT-OFF WAC RELAY & A/C CIRCUIT DIAGRAM
