DTC P1444 & P1445: Purge Flow Sensor Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

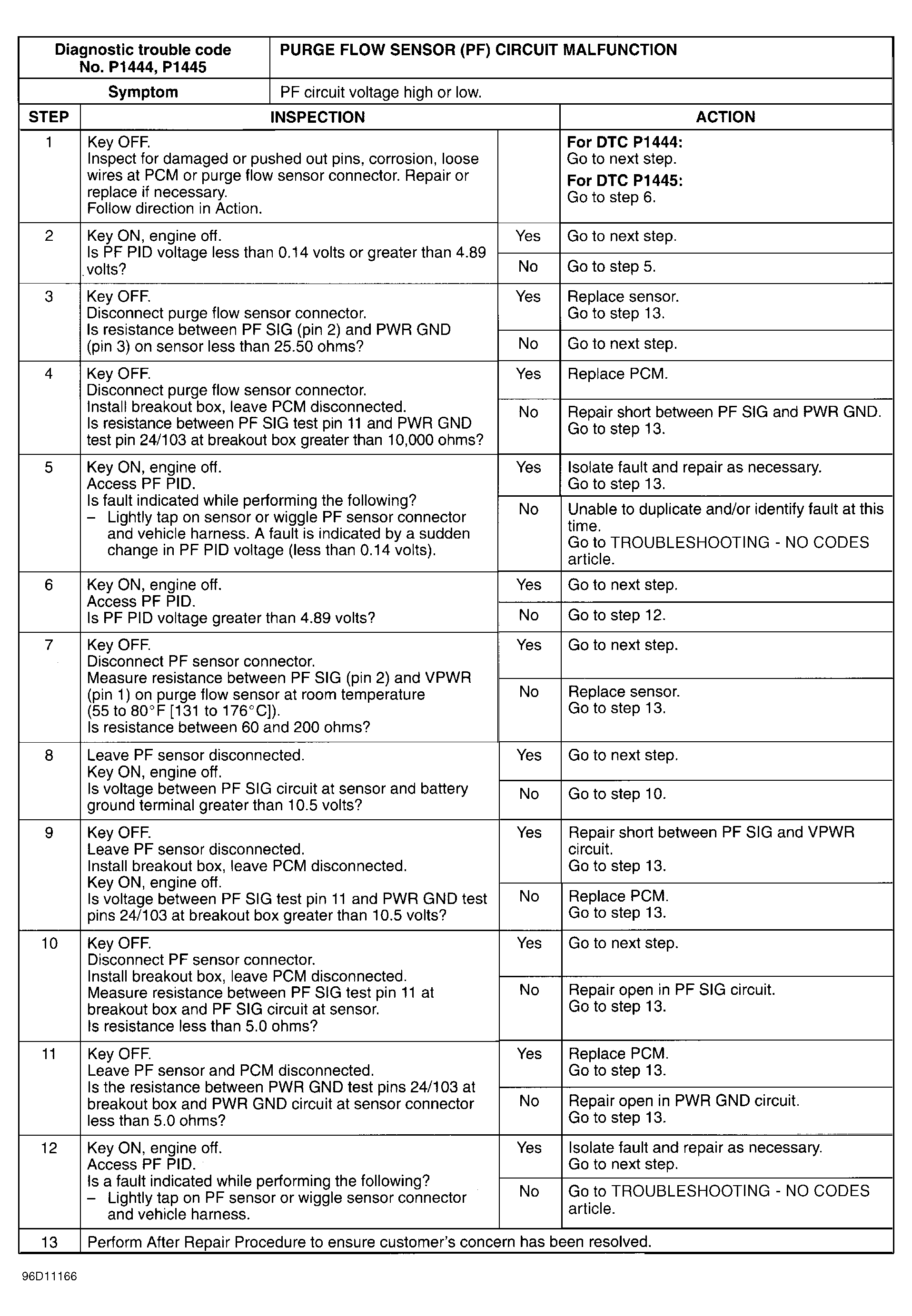

Fig 1: DTC P1444 & P1445 Purge Flow Sensor CIRCUIT Malfunction
G96D11166
Fig 2: Purge Flow (PF) Sensor CIRCUIT Diagram
G95A34637
