DTC P1390: Octane Adjust Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

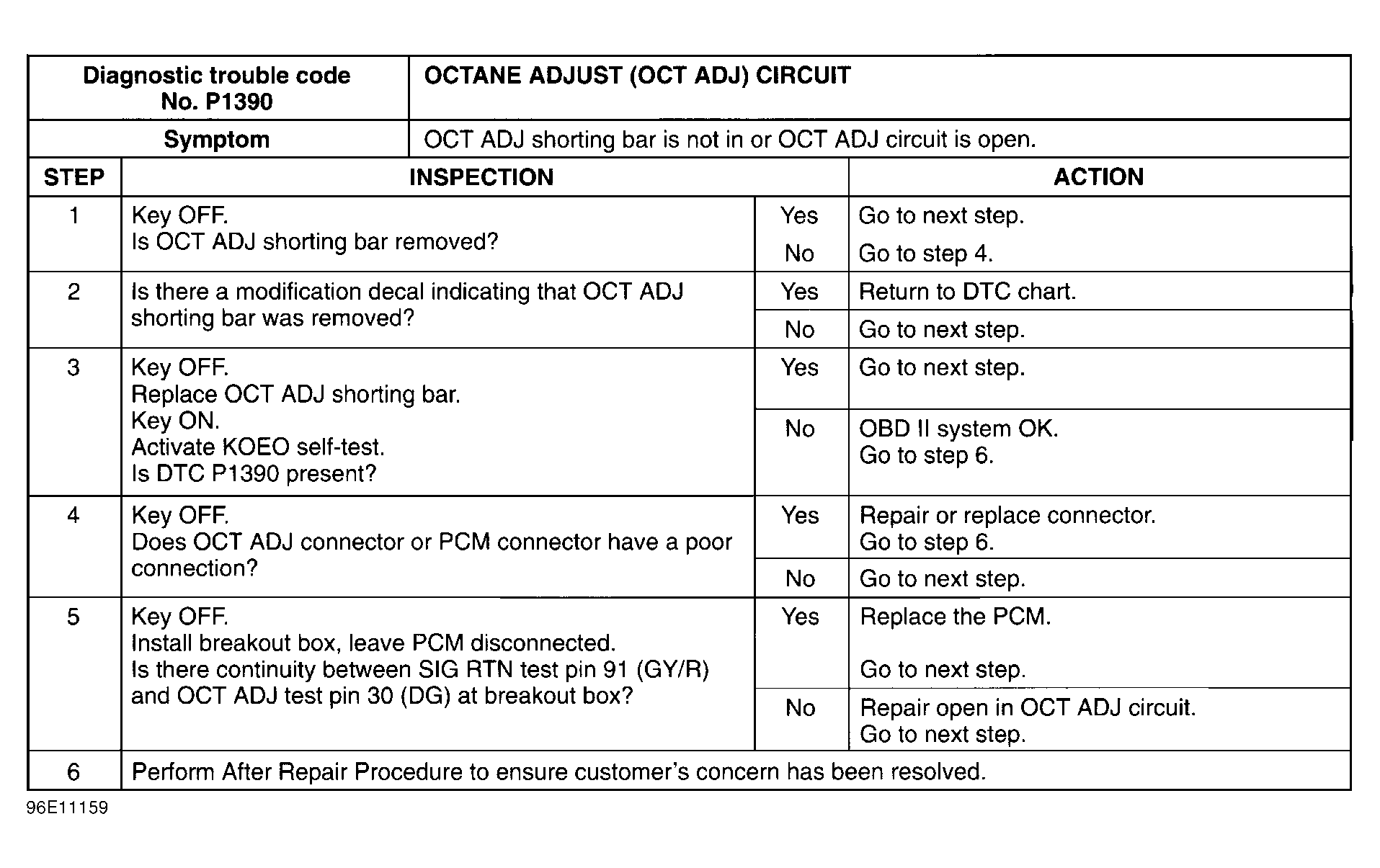

Fig 1: DTC P1390 Octane Adjust CIRCUIT Malfunction
G96E11159

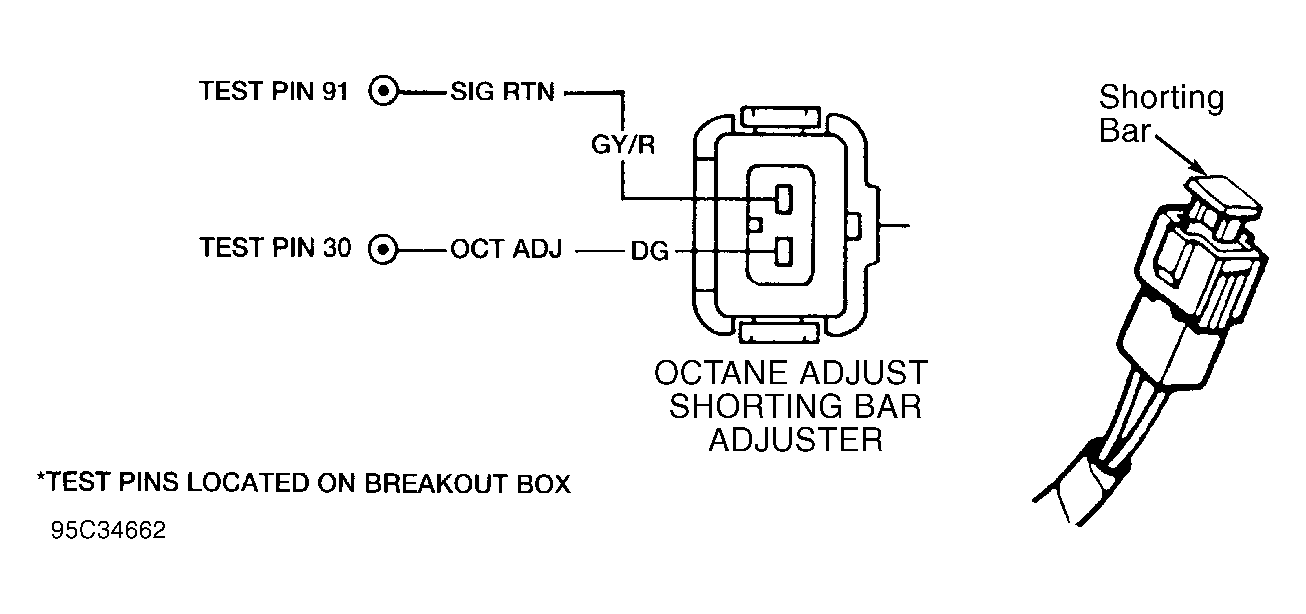

Fig 2: Octane Adjust (OCT ADJ) CIRCUIT Diagram
G95C34662
