DTC P0704 & P1709: Clutch Pedal Pos. Switch Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

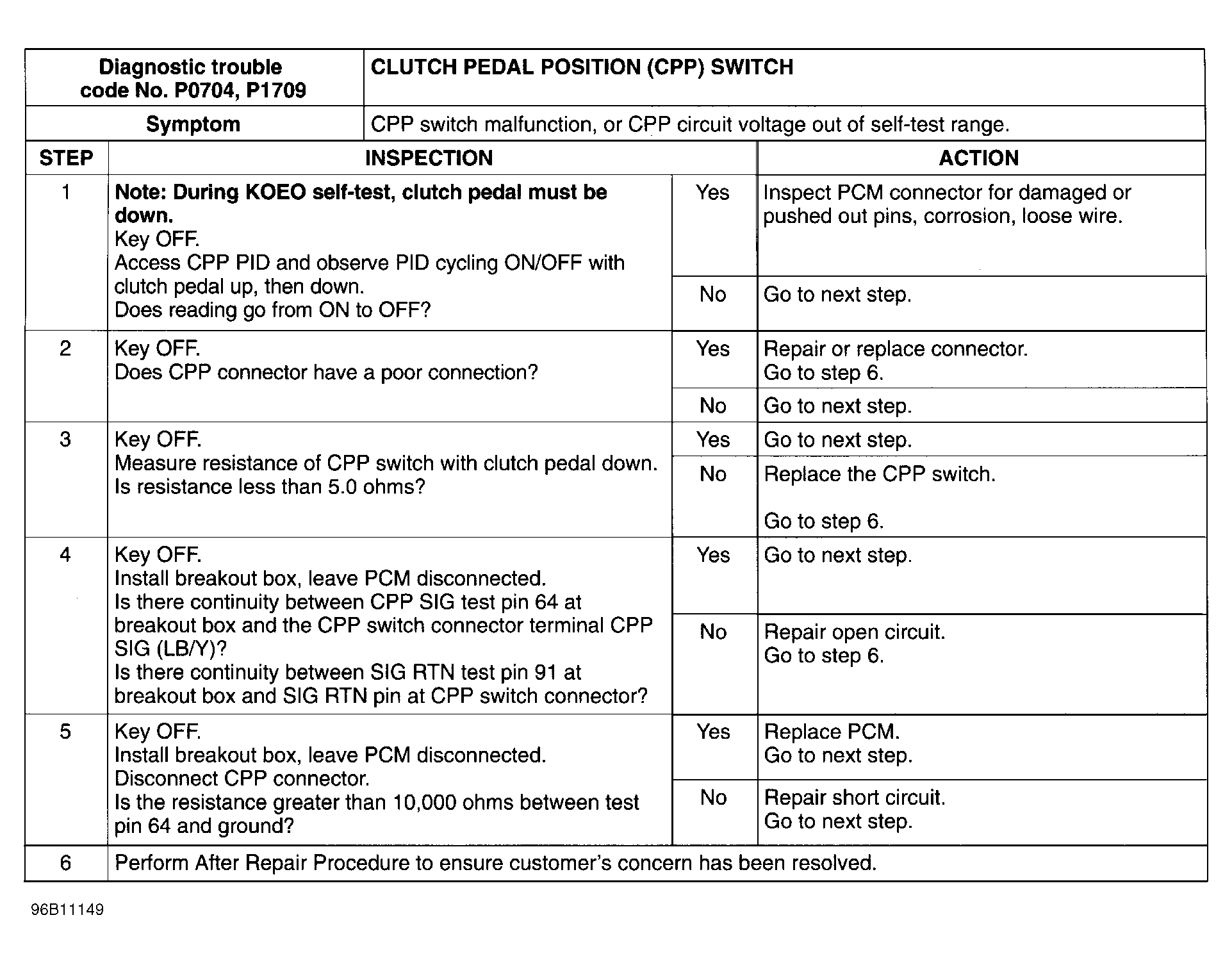

Fig 1: DTC P0704 & P1709 CPP Switch CIRCUIT Malfunction
G96B11149
Fig 2: CLUTCH PEDAL POSITION (CPP) SWITCH CIRCUIT DIAGRAM
G95C34647
