Section 106 (Engine Controls - Tests W/Codes)
>>
Diagnostic Trouble Code Charts
>>
DTC P0402: EGR System Malfunction
DTC P0402: EGR System Malfunction
WARNING:
This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

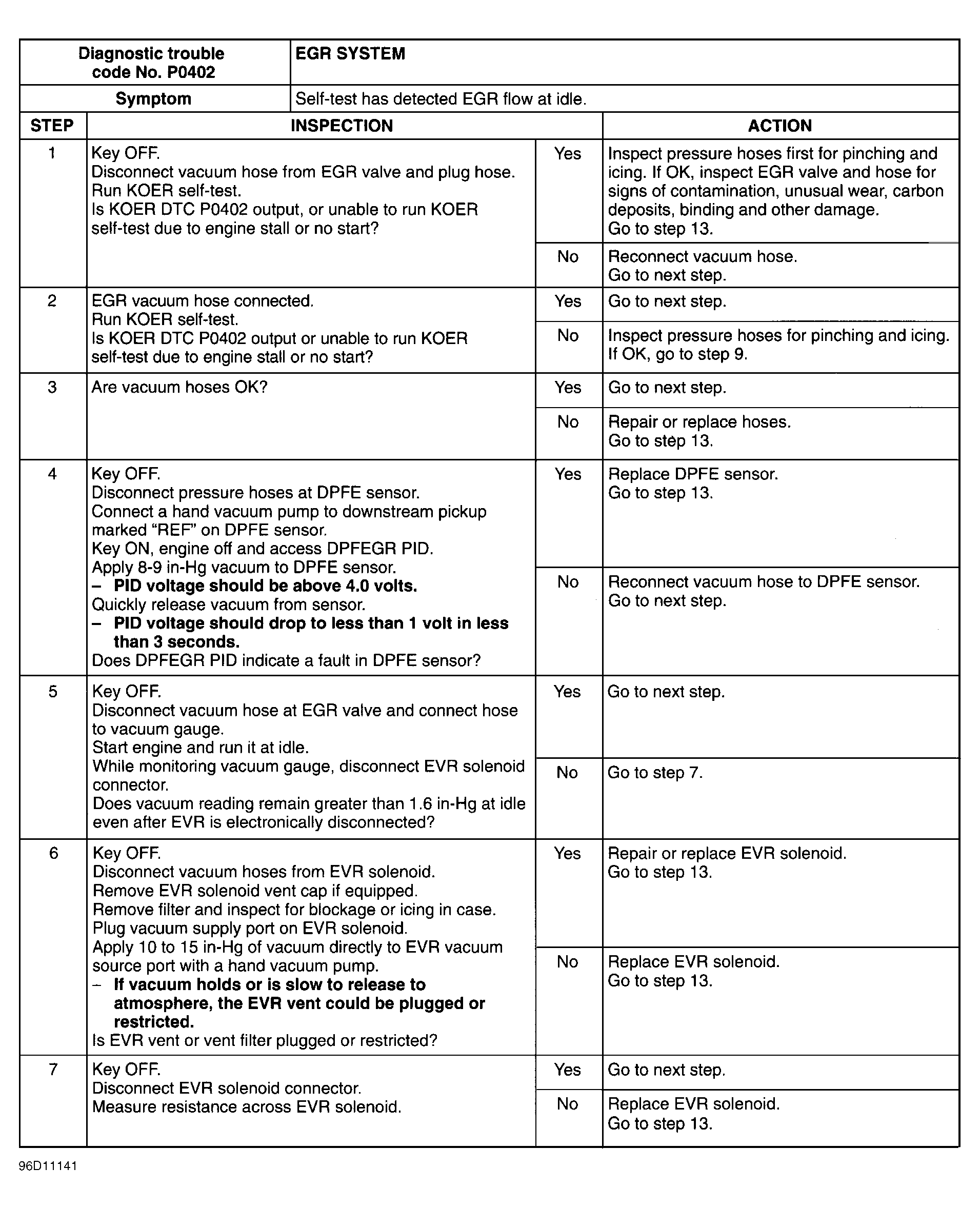

Fig 1: DTC P0402 EGR System Malfunction (1 OF 2)

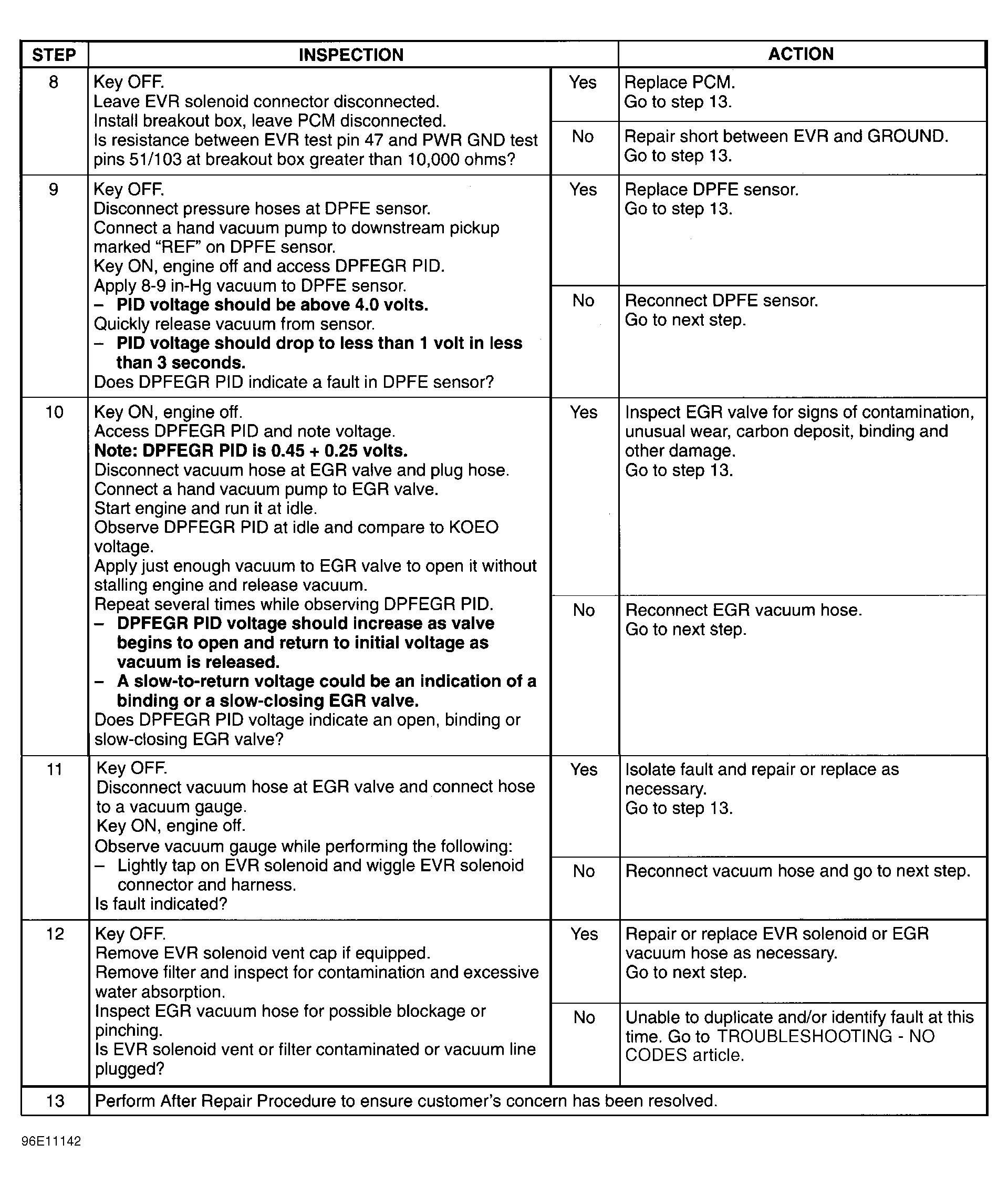

Fig 2: DTC P0402 EGR System Malfunction (2 OF 2)
