DTC P0230, P0231 & P0232: Fuel Pump Primary Or Secondary Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

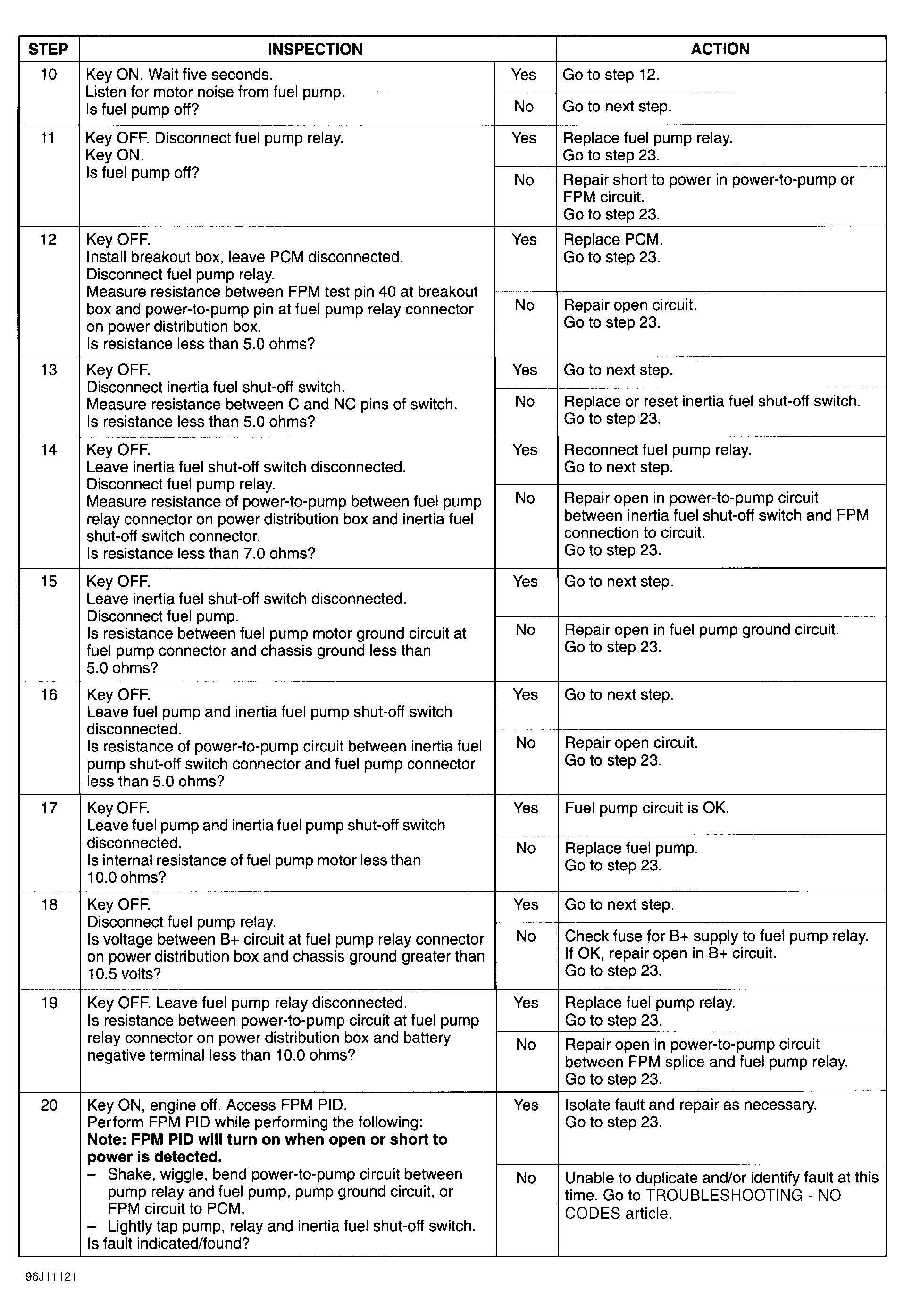

Fig 1: DTC P0230, P0231 & P0232 Fuel Pump PRI. OR SEC. CIRCUIT Malfunction (1 OF 3)

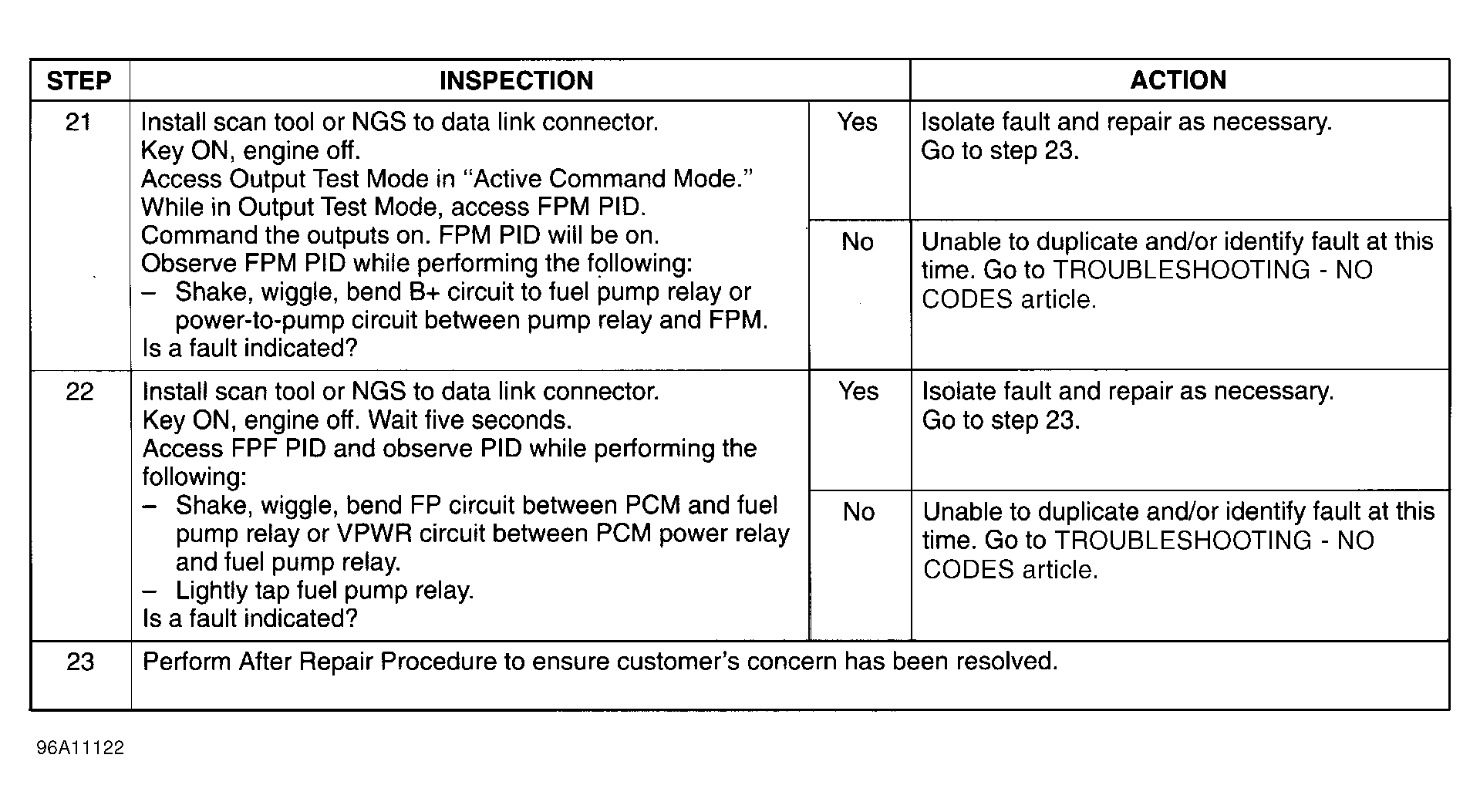

Fig 2: DTC P0230, P0231 & P0232 Fuel Pump PRI. OR SEC. CIRCUIT Malfunction (2 OF 3)

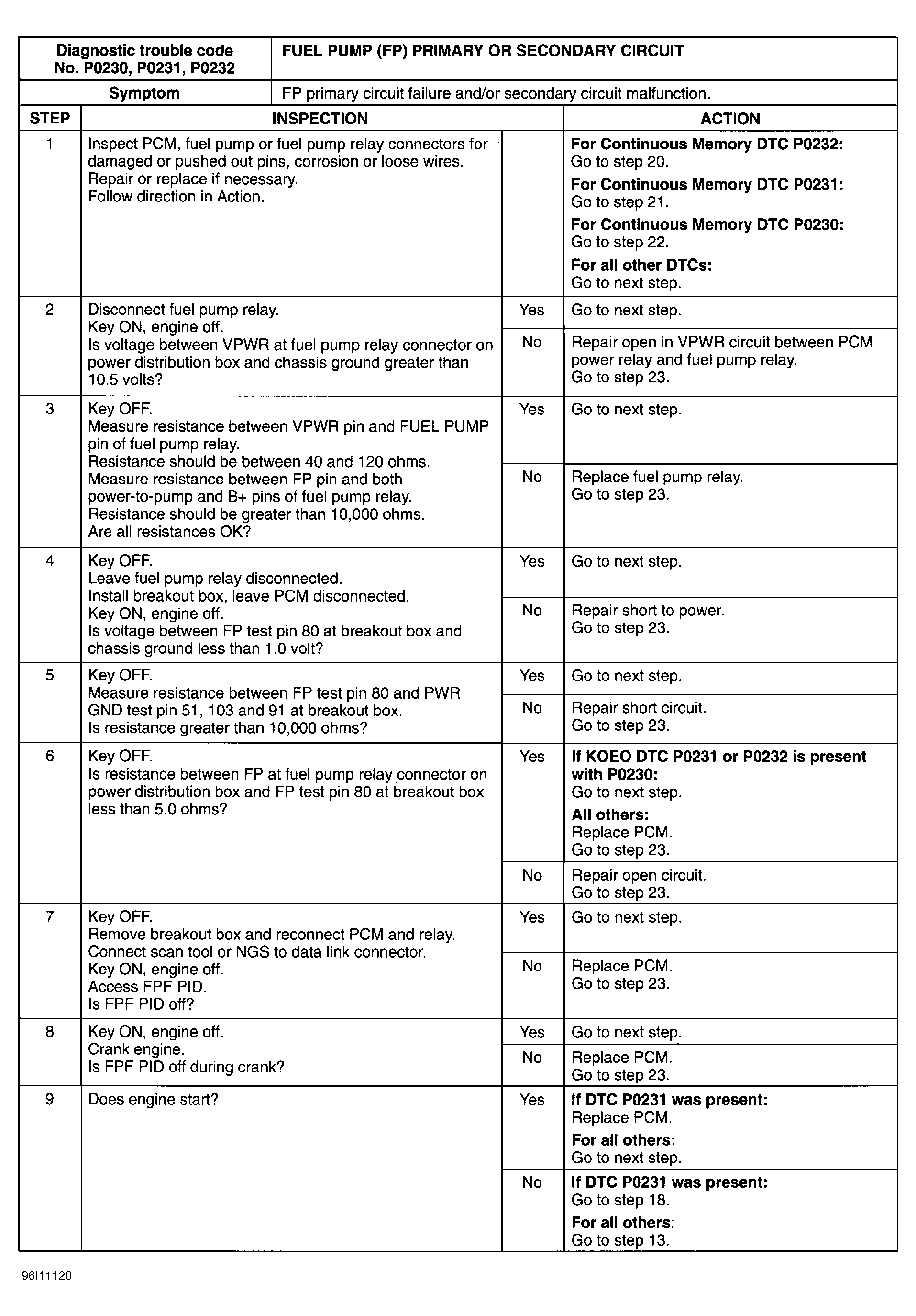

Fig 3: DTC P0230, P0231 & P0232 Fuel Pump PRI. OR SEC. CIRCUIT Malfunction (2 OF 3)

Fig 4: FUEL PUMP CIRCUIT DIAGRAM
