DTC P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152: Adaptive Fuel Control Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

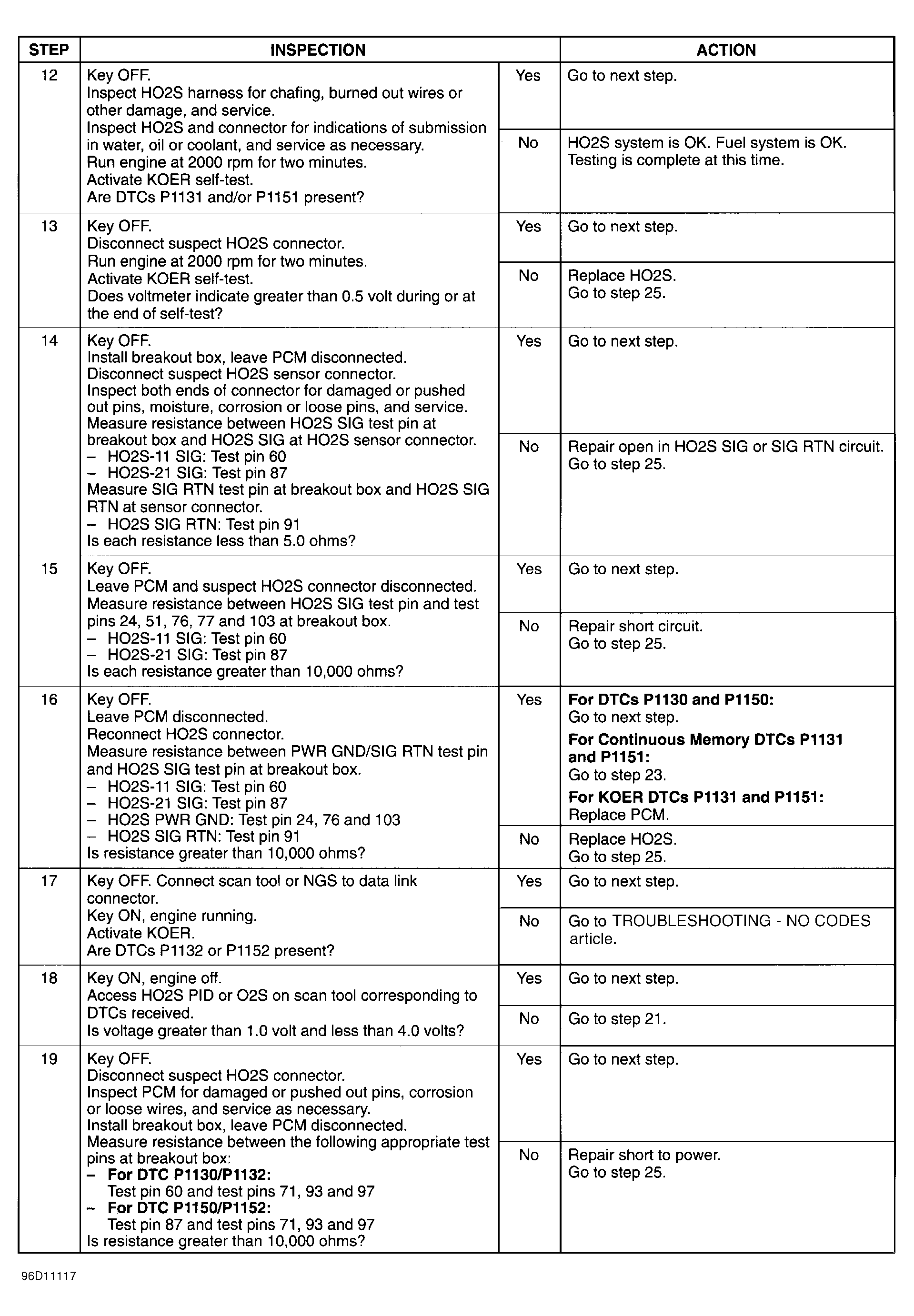

Fig 1: DTC P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152 Adaptive Fuel Control CIRCUIT Malfunction (1 OF 4)

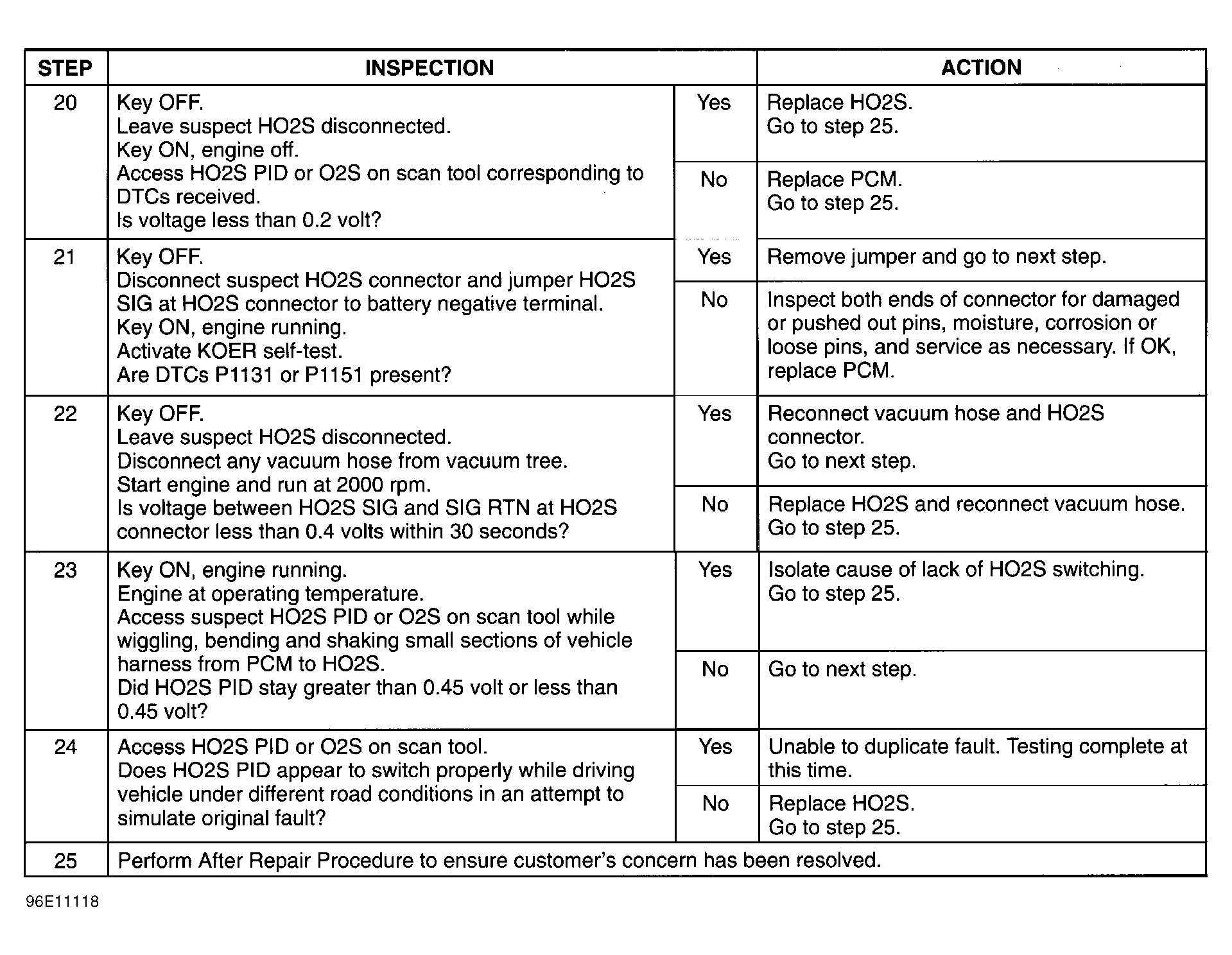

Fig 2: DTC P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152 Adaptive Fuel Control CIRCUIT Malfunction (2 OF 4)

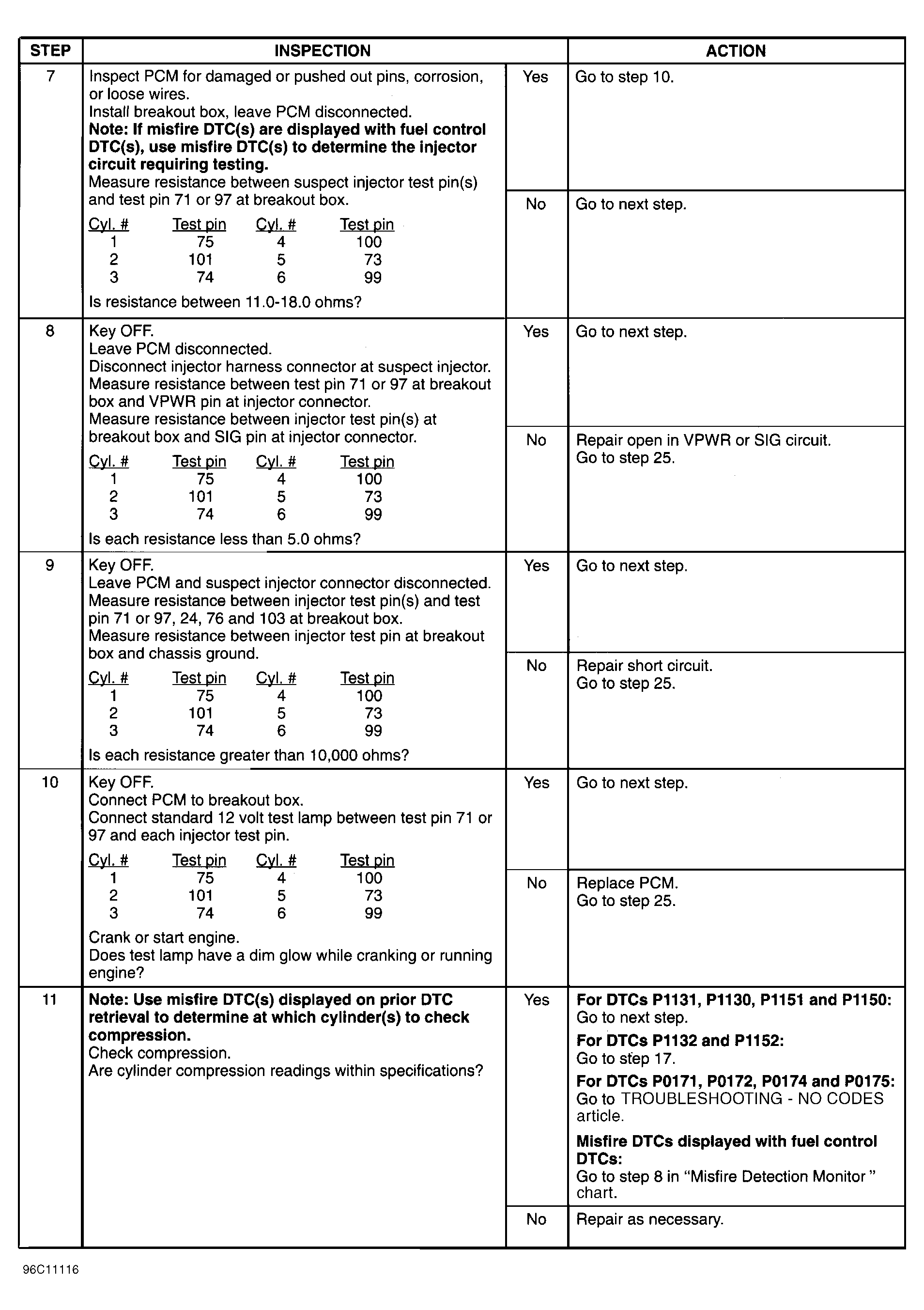

Fig 3: DTC P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152 Adaptive Fuel Control CIRCUIT Malfunction (3 OF 4)

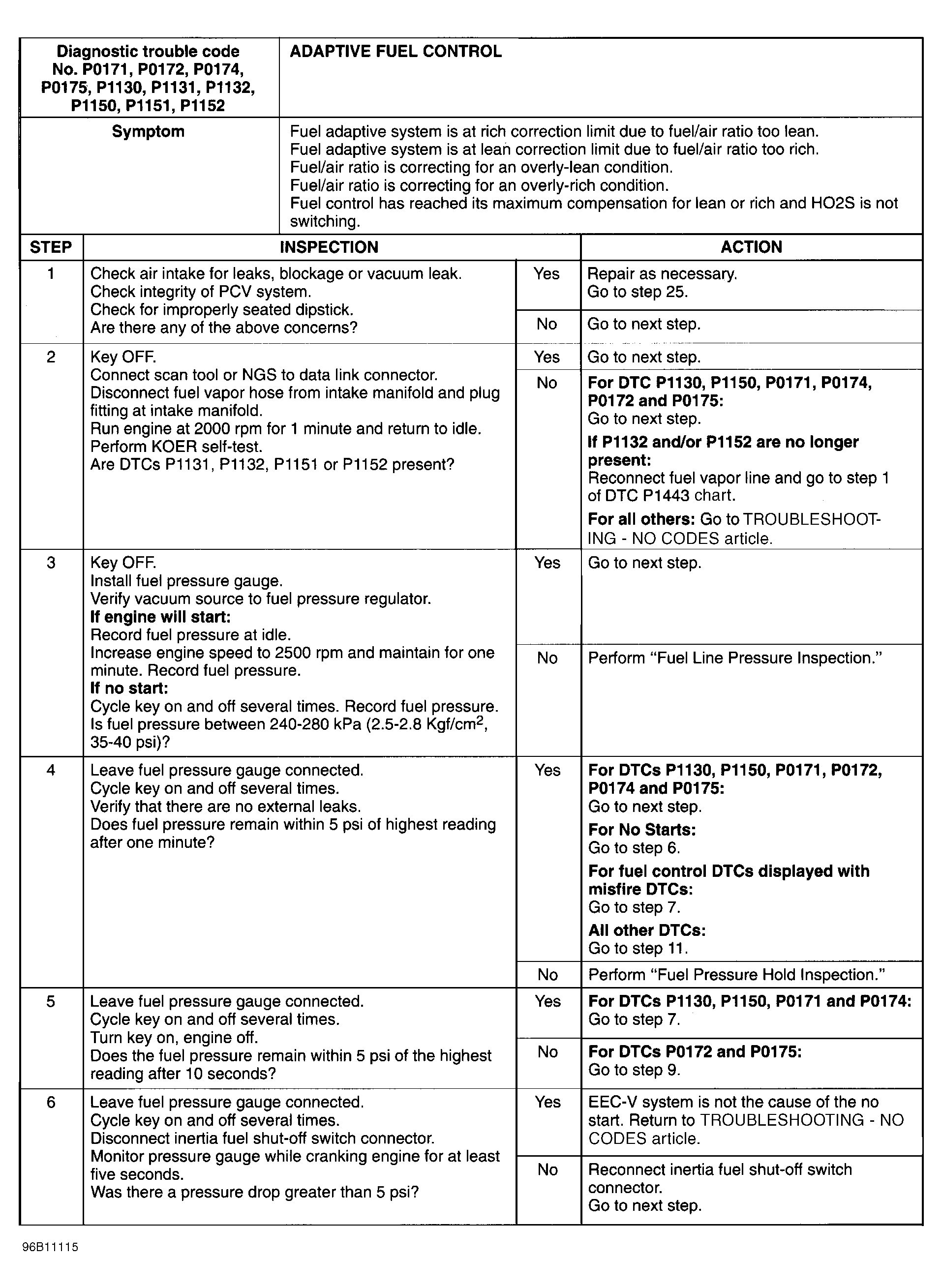

Fig 4: DTC P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152 Adaptive Fuel Control CIRCUIT Malfunction (4 OF 4)

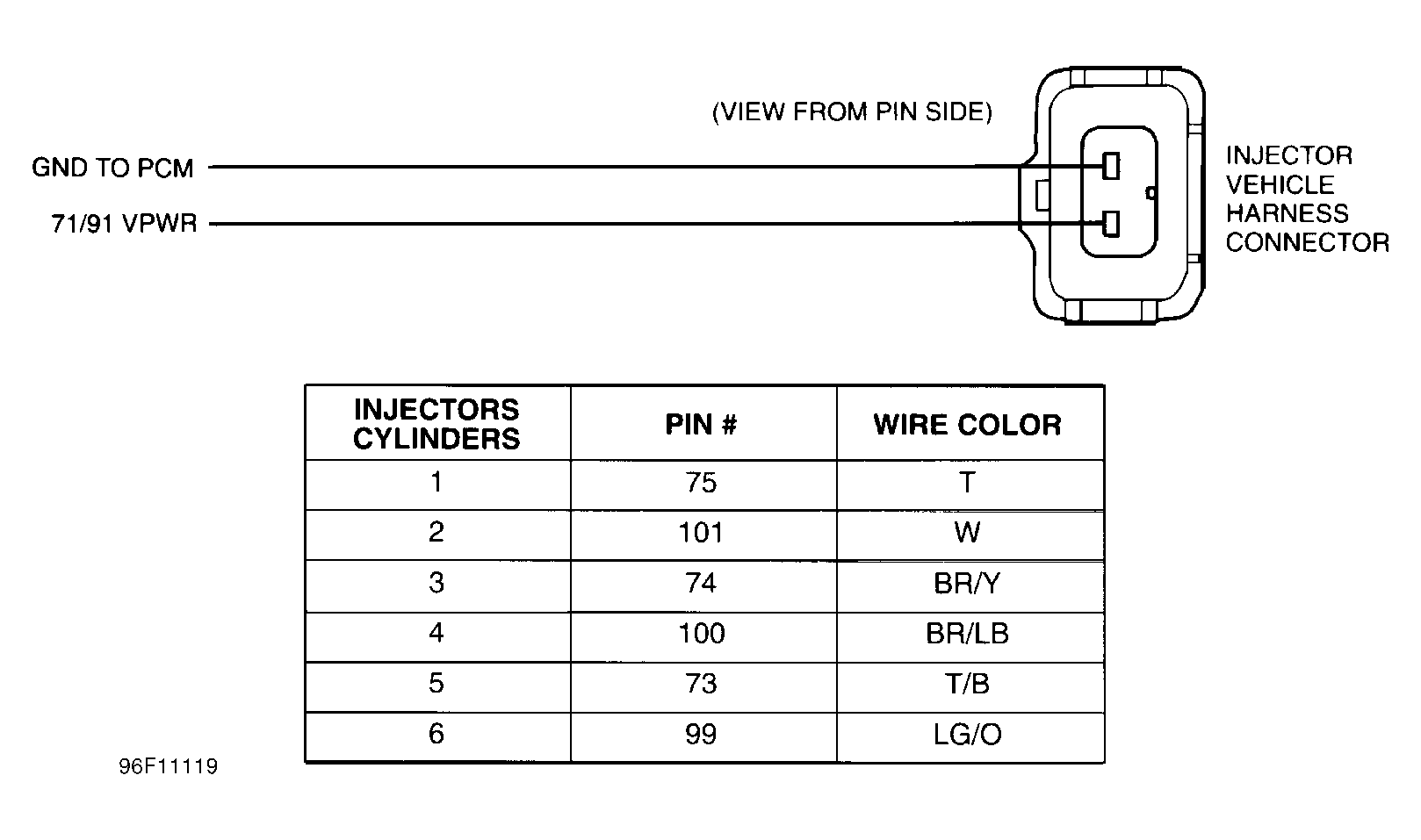

Fig 5: INJECTOR CIRCUIT DIAGRAM
