DTC P0121, P0122, P0123, P1120, P1121, P1124 & P1125: TP Sensor Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

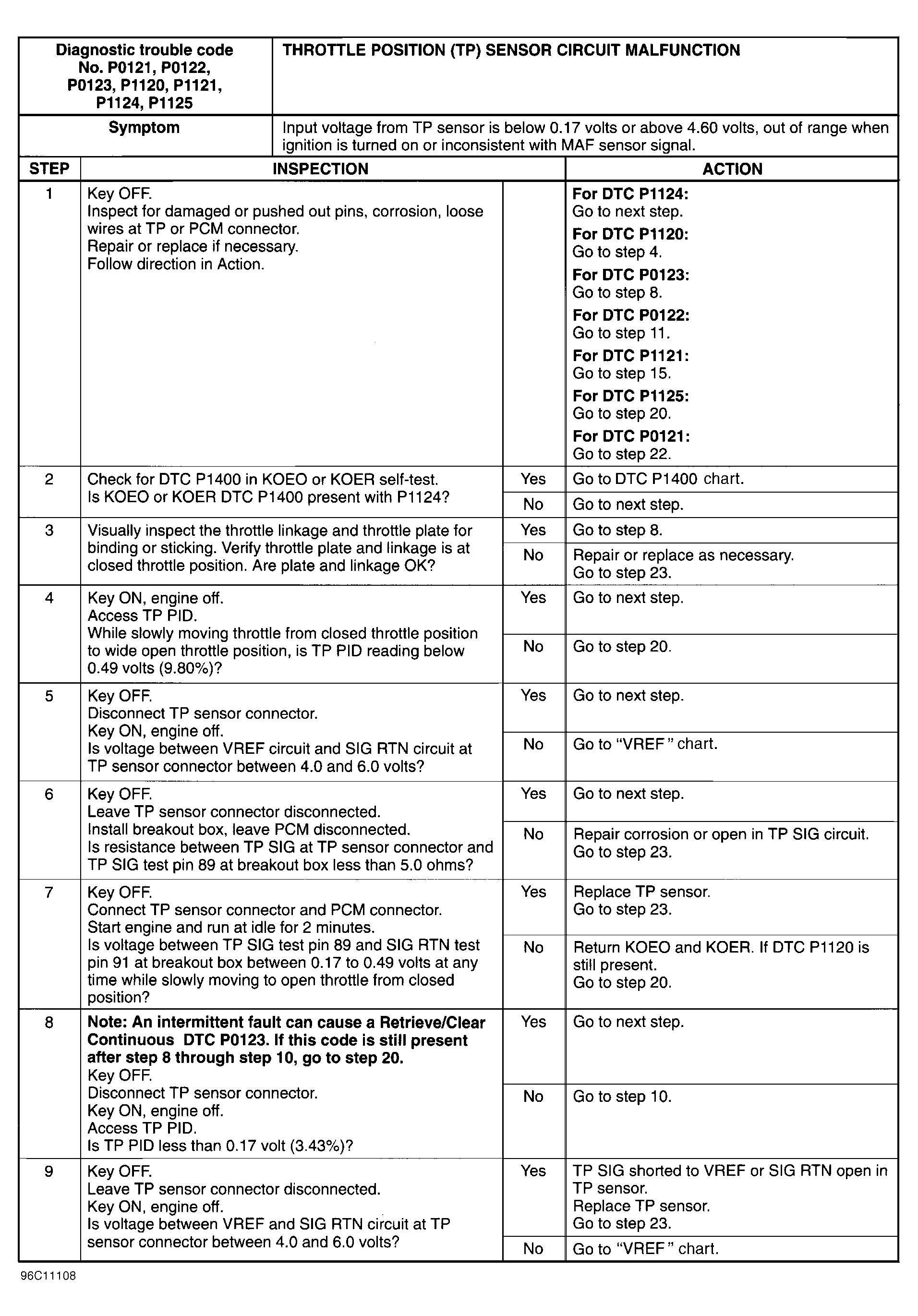

Fig 1: DTC P0121, P0122, P0123, P1120, P1121, P1124 & P1125 TP Sensor CIRCUIT Malfunction (1 OF 3)

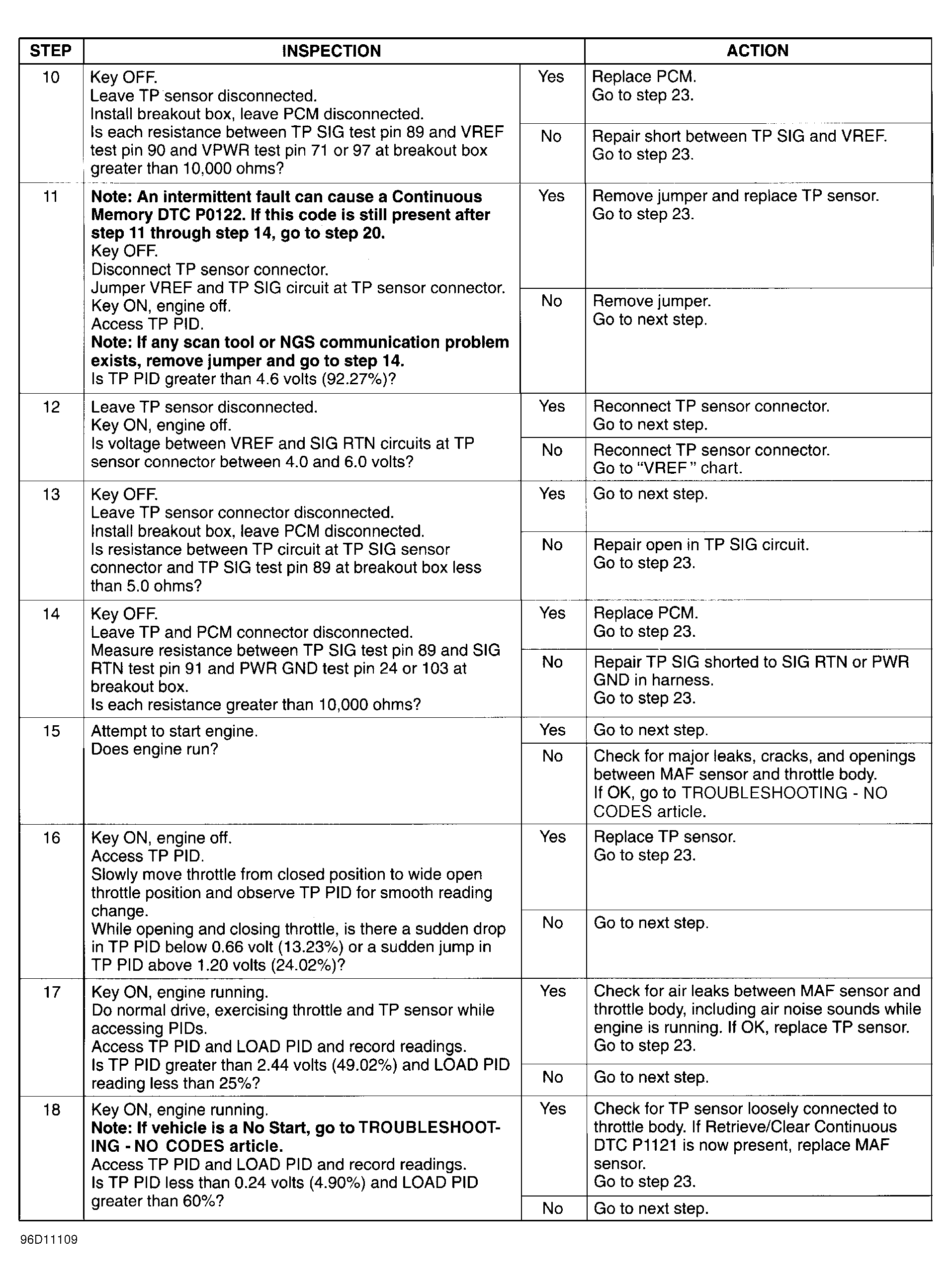

Fig 2: DTC P0121, P0122, P0123, P1120, P1121, P1124 & P1125 TP Sensor CIRCUIT Malfunction (2 OF 3)

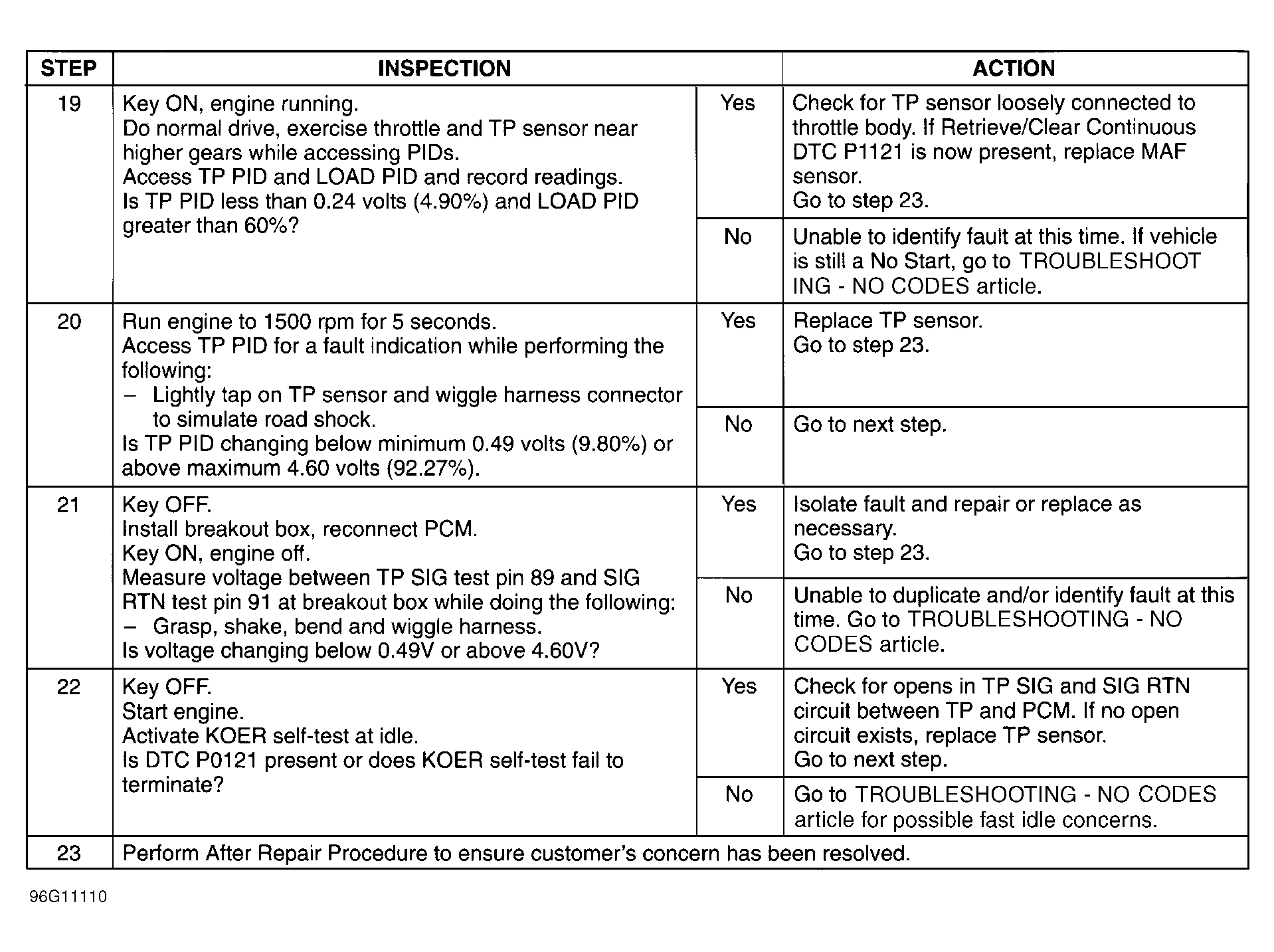

Fig 3: DTC P0121, P0122, P0123, P1120, P1121, P1124 & P1125 TP Sensor CIRCUIT Malfunction (3 OF 3)

Fig 4: TP SENSOR CIRCUIT DIAGRAM
