DTC P0102, P0103, P1100 & P1101: MAF Sensor Circuit Malfunction

WARNING: This page is about a different car, the 1996 Mazda B4000, 1996 Mazda B3000, and 1996 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

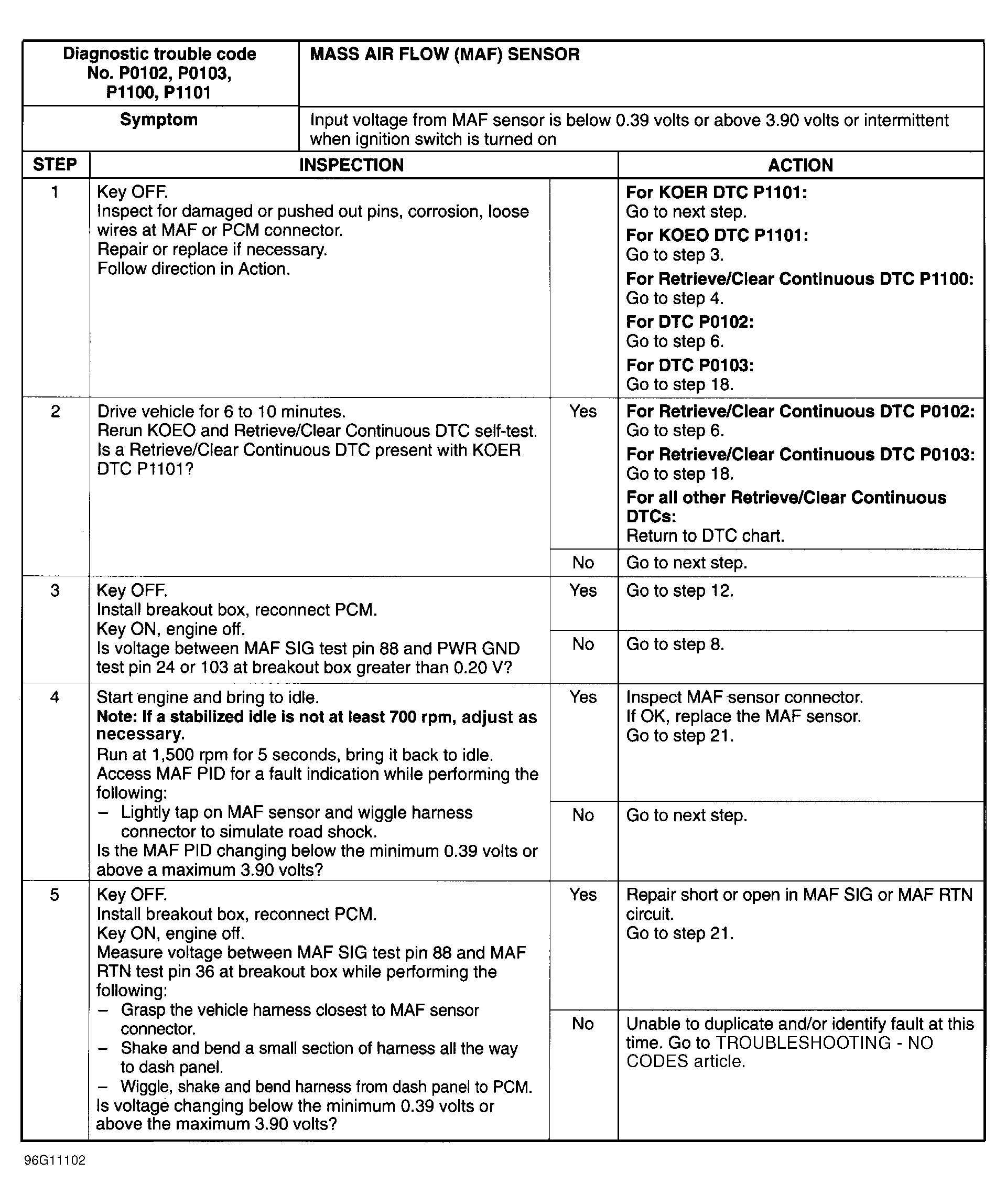

Fig 1: DTC P0102, P0103, P1100 & P1101 (1 OF 3) MAF Sensor CIRCUIT Malfunction

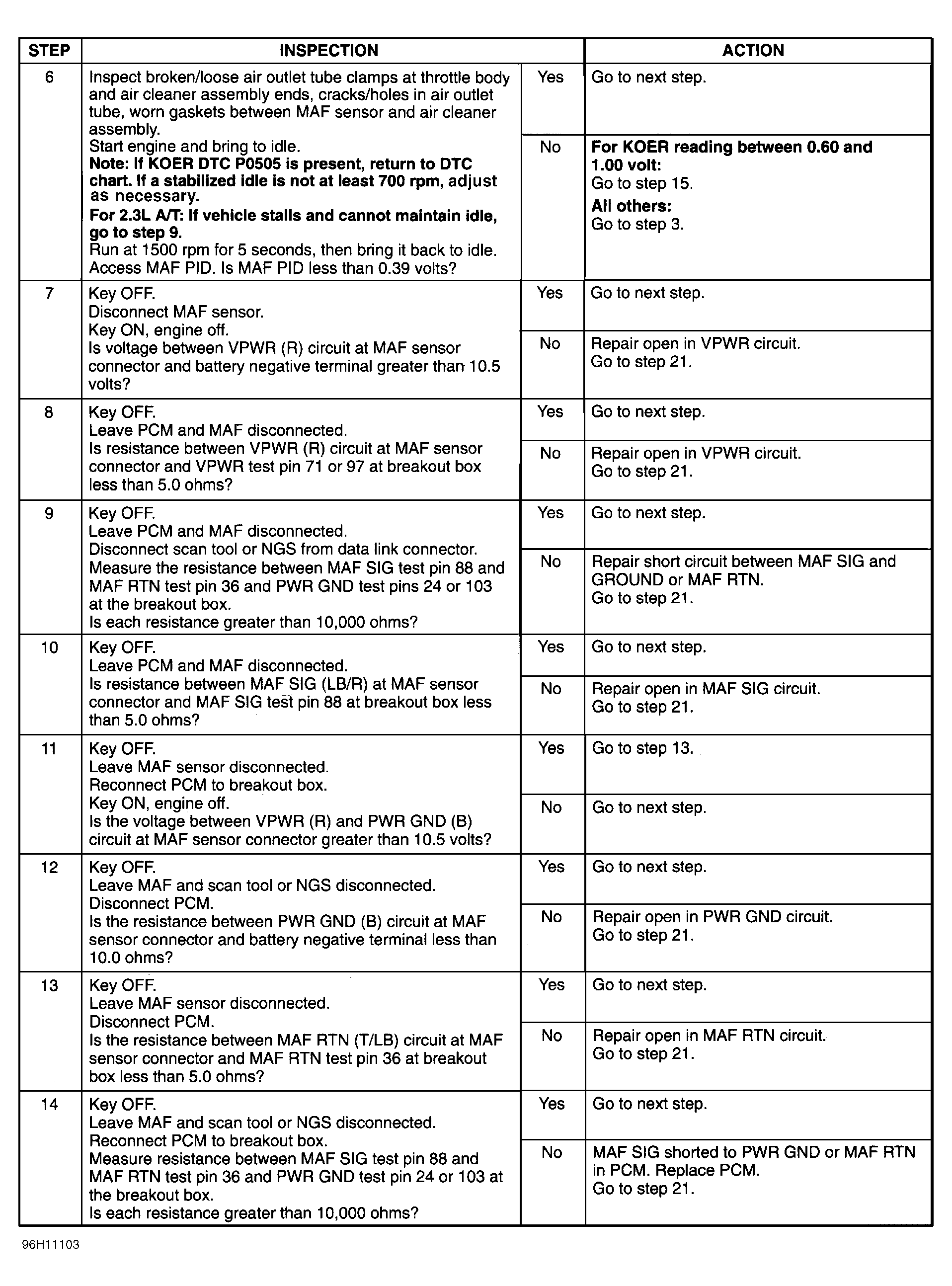

Fig 2: DTC P0102, P0103, P1100 & P1101 (2 OF 3) MAF Sensor CIRCUIT Malfunction

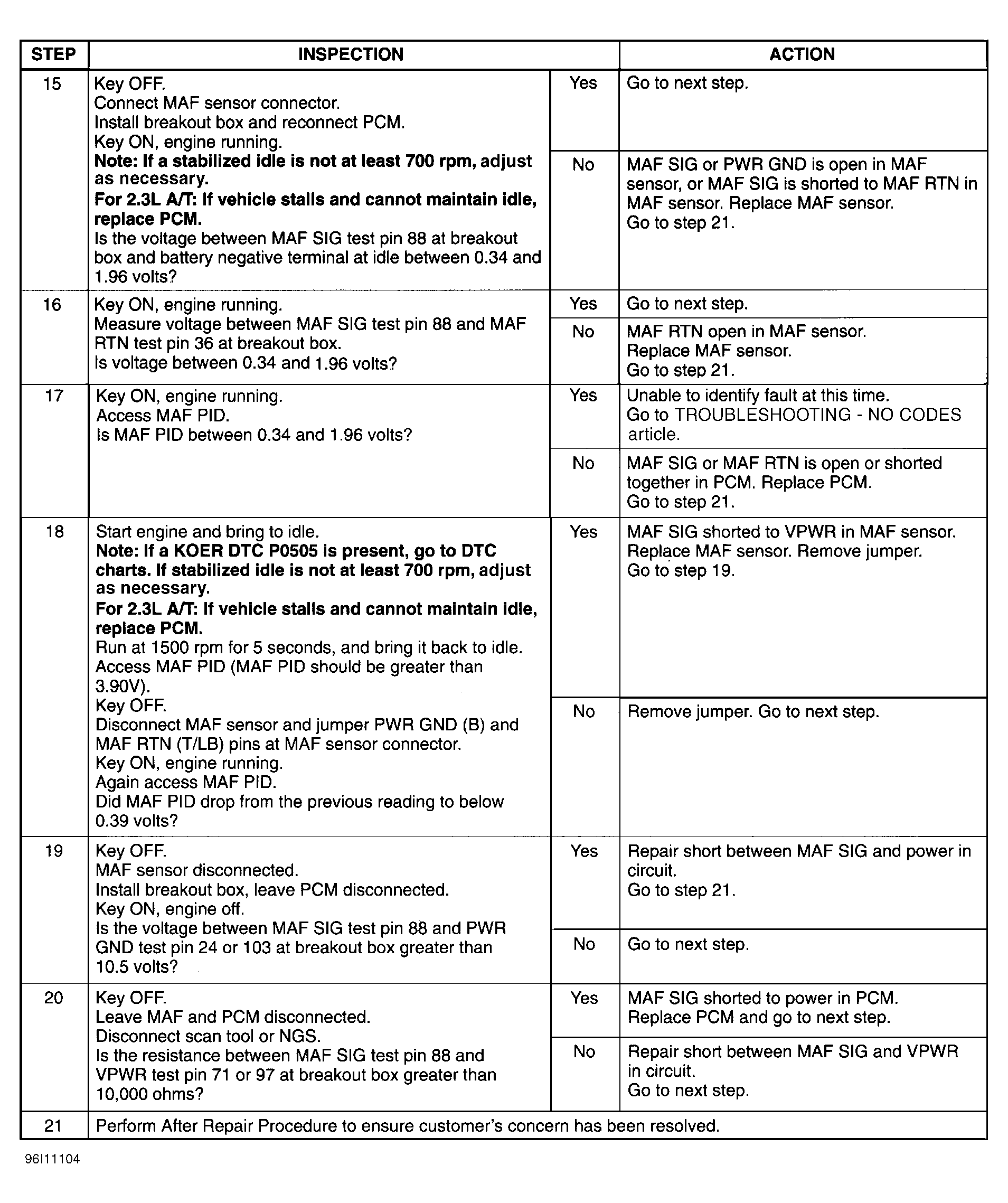

Fig 3: DTC P0102, P0103, P1100 & P1101 (3 OF 3) MAF Sensor CIRCUIT Malfunction

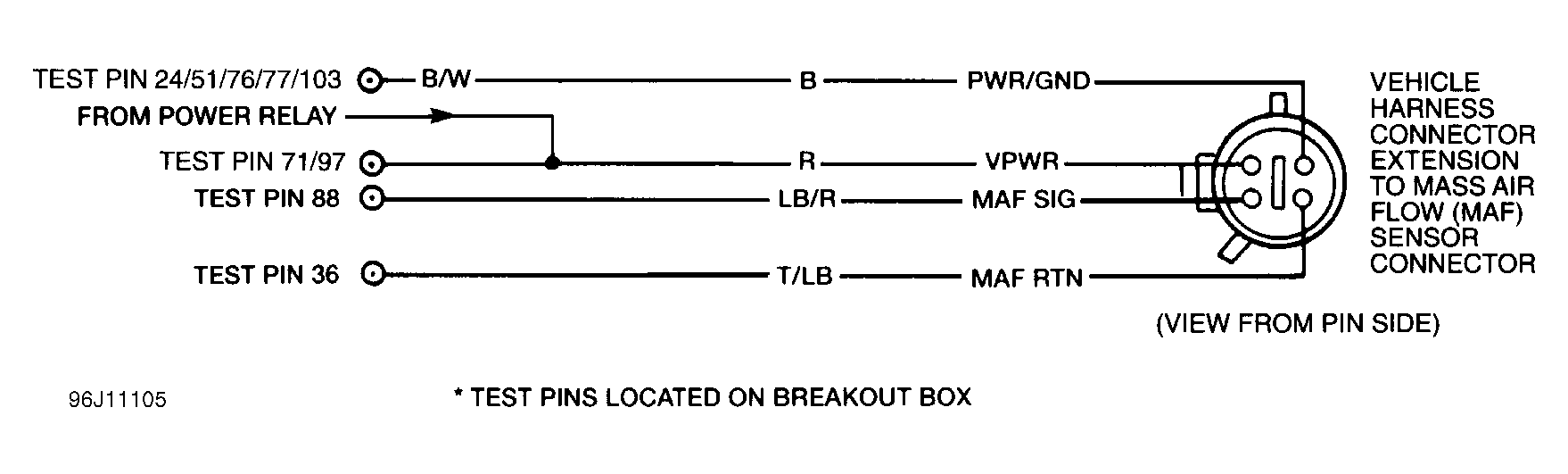

Fig 4: MASS AIR FLOW (MAF) SENSOR CIRCUIT DIAGRAM MAF Sensor CIRCUIT Malfunction
