Removal & Installation (B3000 & B4000)
WARNING: This page is about a different car, the 1995 Mazda B4000, 1995 Mazda B3000, and 1995 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

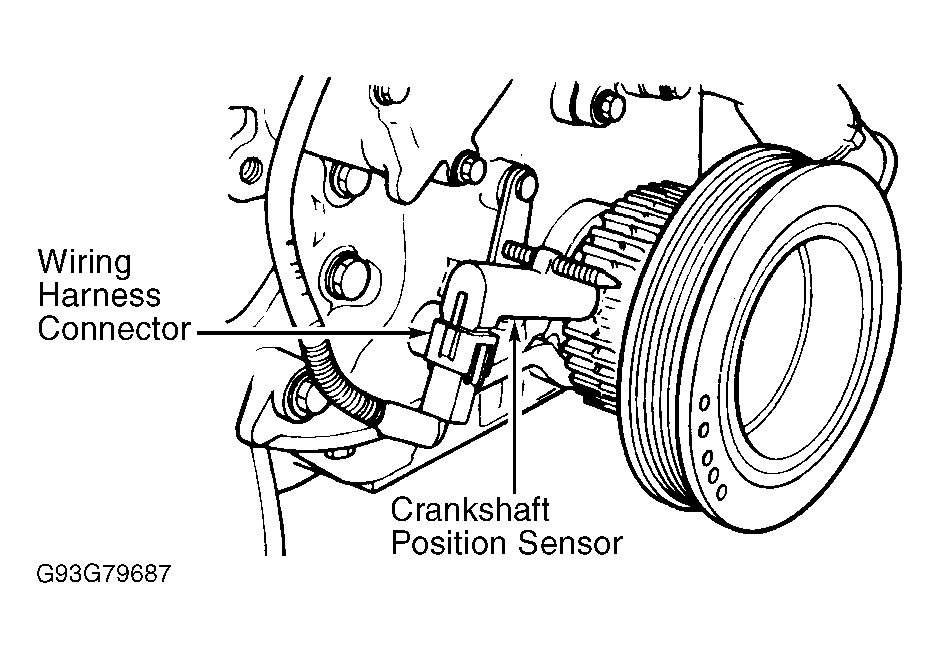

Disconnect negative battery cable. Disconnect crankshaft position sensor connector. See Fig 1 . Remove crankshaft position sensor mounting screws and remove sensor. To install, reverse removal procedure. Tighten screws to specification. See TORQUE SPECIFICATIONS .
