Removal & Installation: Thermostat: Installation

1. Make sure sealing surfaces are totally free of gasket material.
2. Install water thermostat into thermostat housing as illustrated.
3. Position gasket onto thermostat housing using bolts as hoding devices. Install water thermostat and tighten bolts to 14-21 lb.ft (20-30 N.m).
4. Install upper radiator hose. Tighten clamp securely.
5. Fill and bleed cooling system with proper amount and mixture.
6. Start engine (6007) and check for coolant leaks.

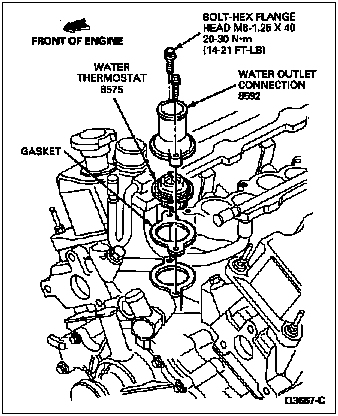

Fig 1: Removing/Installing Thermostat

Courtesy of FORD MOTOR CO.
