Piston & Rod Assembly

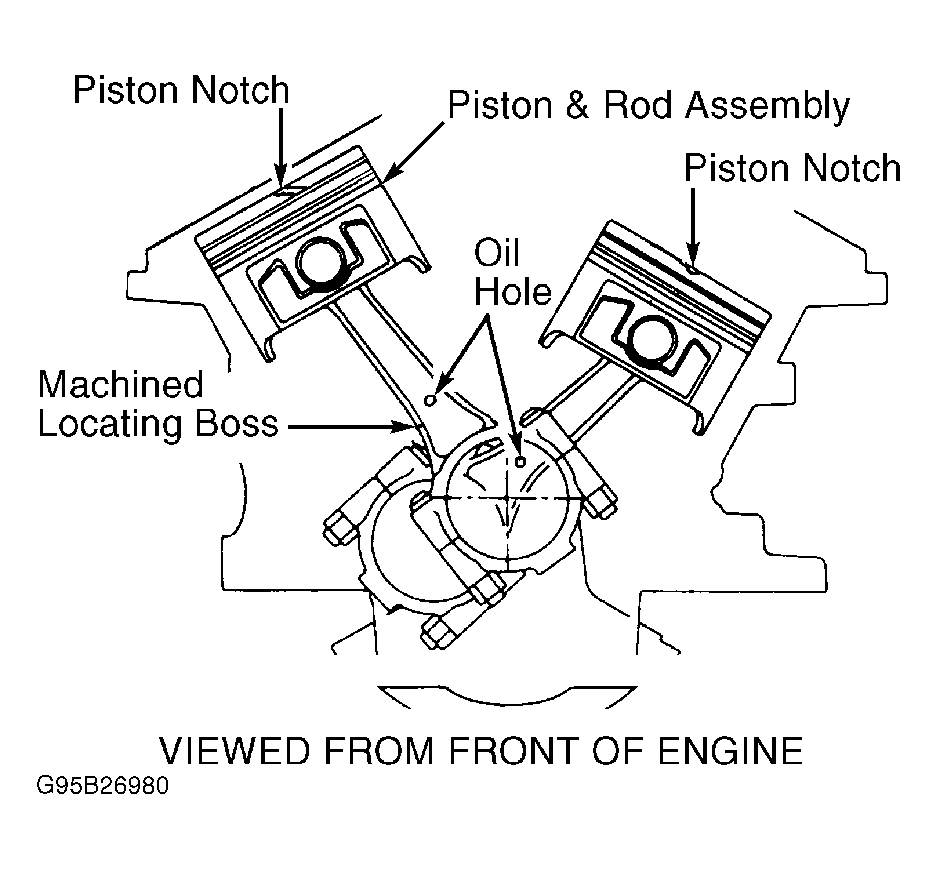

Install piston on connecting rod, with piston notch on the same side as the button on connecting rod. See Fig 1. Install piston and connecting rod in engine, with notch on top of piston toward front of engine.
Install piston on connecting rod, with piston notch on the same side as the button on connecting rod. See Fig 1. Install piston and connecting rod in engine, with notch on top of piston toward front of engine.
