Driveline Angularity

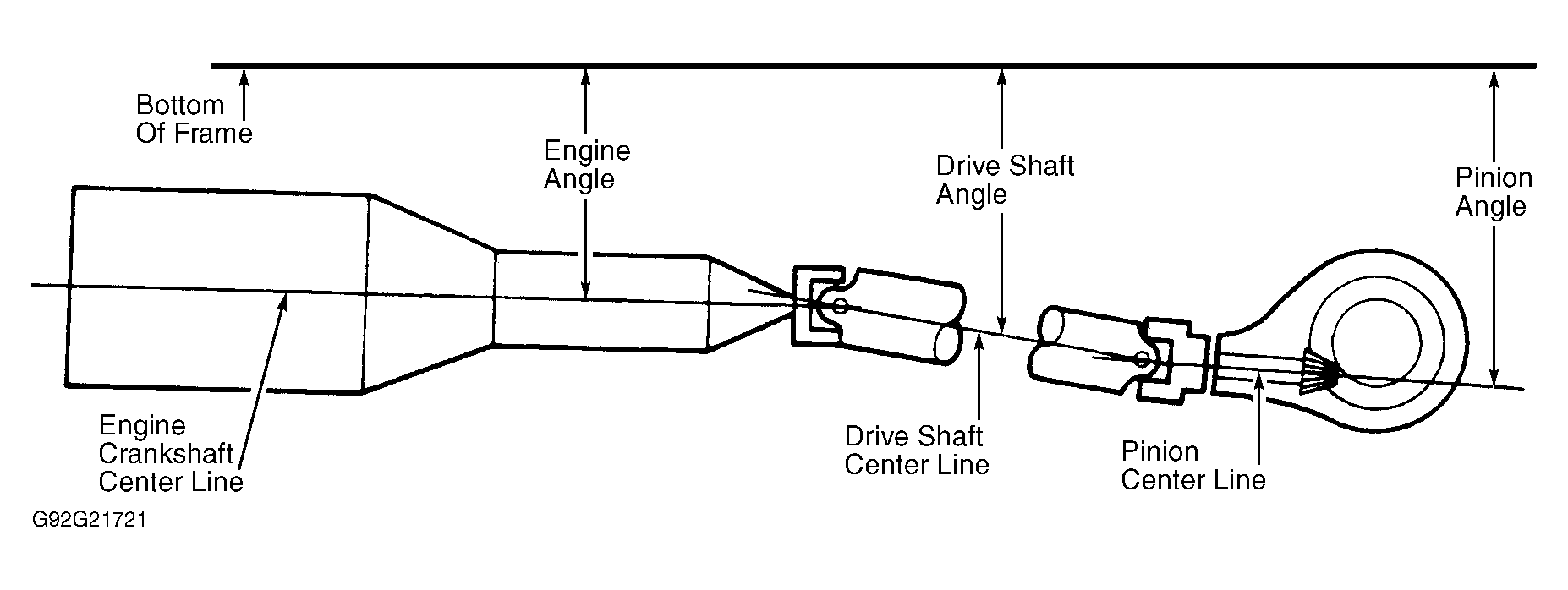

Driveline angularity is angular relationship between engine crankshaft, drive shaft, and drive axle pinion. Driveline angles are given in relation to a zero-degree frame rail angle and are specified for individual components and models. See Figure .
