2-Piece Shafts

This type drive shaft has a "blind" spline on the slip joint which makes it impossible to assemble shaft with incorrect phasing.

Fig 1: Identifying Drive Line Angles
G92G21721Courtesy of FORD MOTOR CO.

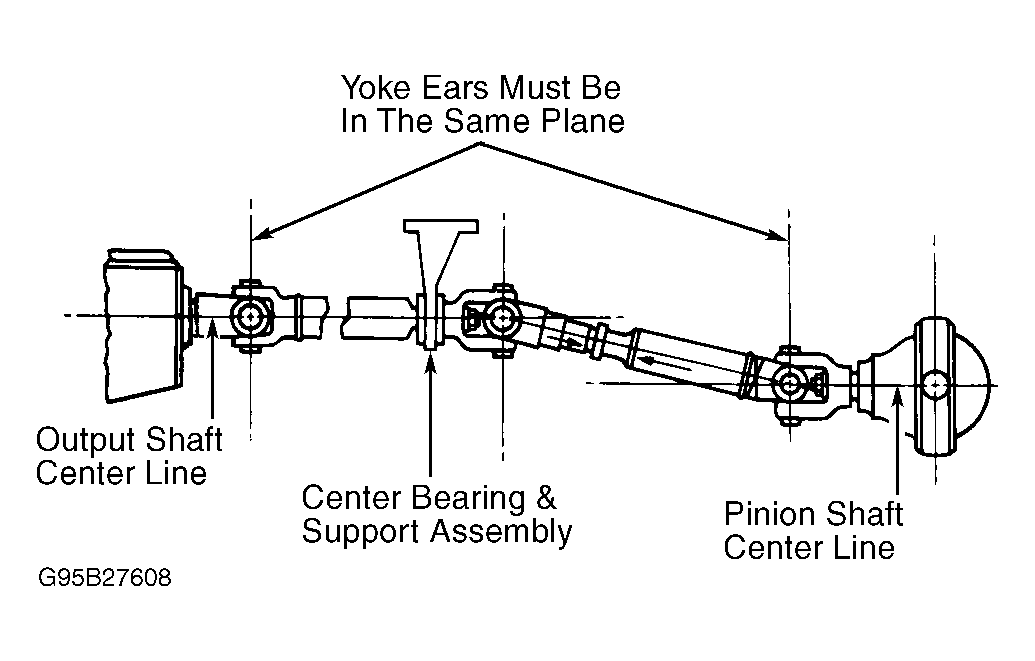

Fig 2: Aligning Typical Drive Shaft
G95B27608Courtesy of FORD MOTOR CO.
