7.5" & 8.8" Differential
- Install side gears and thrust washers into differential case. Place pinion gears and thrust washers 180 degrees apart on side gears and rotate into case.
- Use soft-faced hammer and drive "S"-shaped preload spring into position. Ensure spring is not damaged. Install pinion shaft and NEW pinion shaft lock bolt (use Threadlock (EOAZ-19554-AA) on lock bolt if new bolt is unavailable). Install bolt finger-tight at this time.

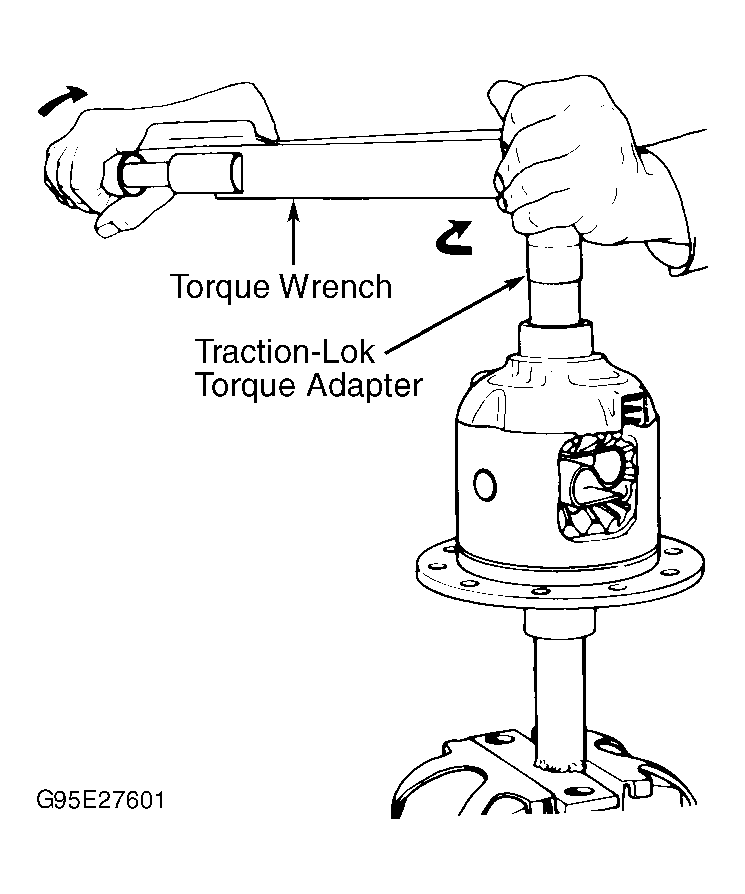

- Place Traction-Lok Torque Tool (205-022/T66L-4204-A) in a vise. Position carrier on Torque Tool and measure rotating torque. Rotating torque should be 20 ft. lbs. (27 N.m). See Fig 1
.
- This checks torque required to rotate one side gear while other is held stationary. If clutch plates are used, break-away torque should be at least 20 ft. lbs. (27 N.m) and rotation should be smooth. If clutch plates are new, break-away torque may vary and be slightly higher than specification.
- If break-away torque is as specified and rotation is smooth, tighten pinion shaft lock bolt to proper specification. See TORQUE SPECIFICATIONS
. If sensor ring has been removed, align notch on new sensor ring with notch on case flange and install new ring. Install side bearings and ring gear, if necessary.
