Drive Belt Routing (4.6L Expedition)

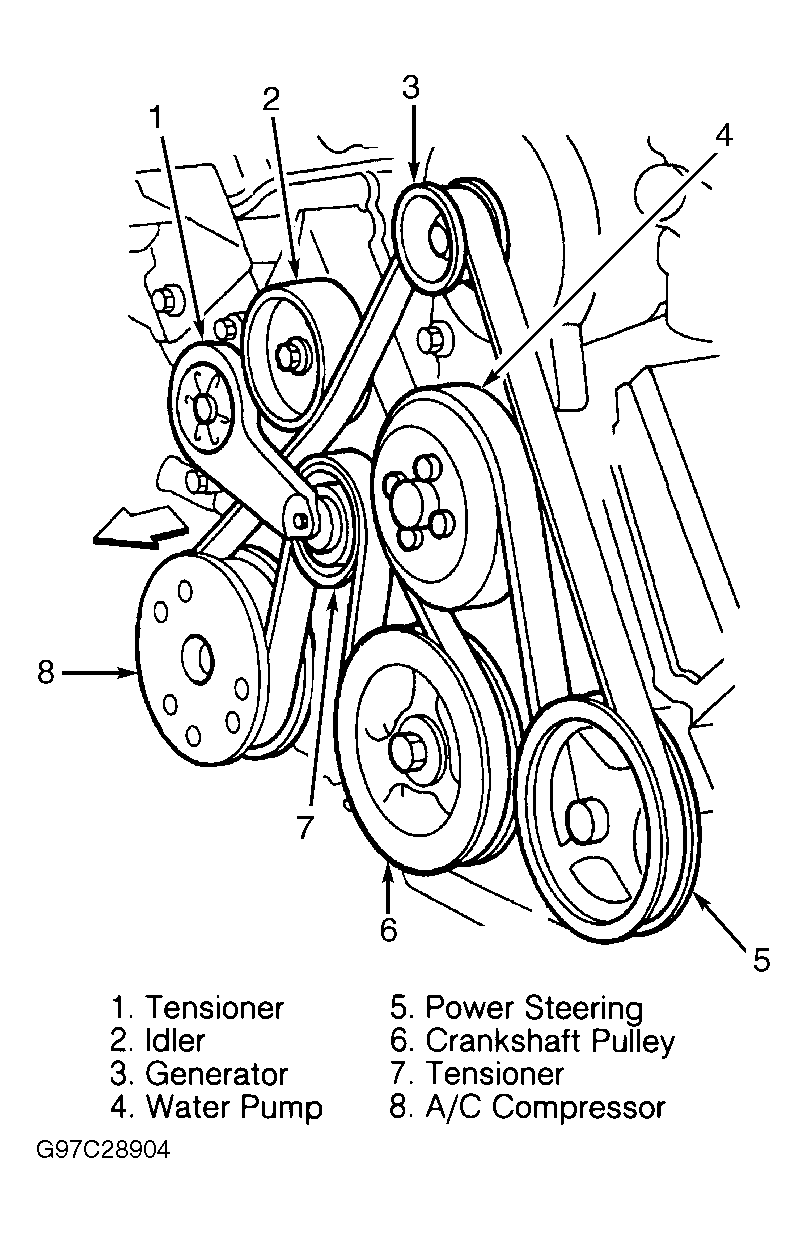

Fig 1: Drive Belt Routing (4.6L Expedition)

G97C28904

Courtesy of FORD MOTOR CO.
