Pinpoint Tests: Notes

Use the following Procedure to find correct test and test step to go to after retrieving DTC. If no DTCs are given, perform test according to symptom. See Fig 1 .

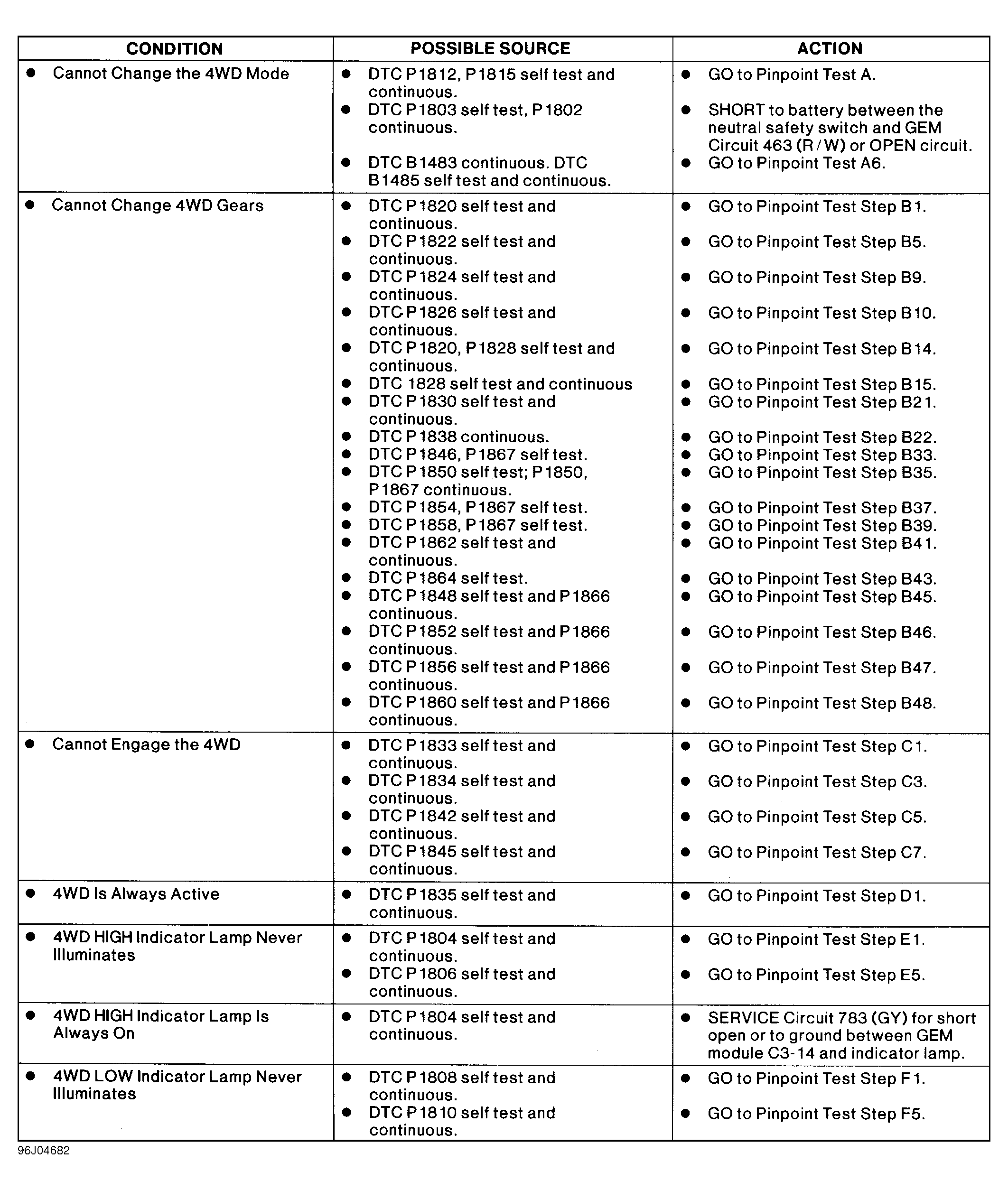

Fig 1: DTC/Symptom Reference Chart (Electronic Shift Transfer Cases)

Courtesy of FORD MOTOR CO.

NOTE: Self-diagnostic testing does not apply to manually shifted transfer case or non-OBD-II compliant vehicles. The testing provided can be helpful in diagnosing some faults in these vehicles. For further information on self-diagnostic equipment and testing methods, see EEC-V testing in appropriate AUTO TRANS DIAGNOSIS article.
