Pinpoint Test HC - Charge System Warning Always On

Start engine. Observe warning for several minutes. Test charging system. If charging system is okay, go to next step. Repair as necessary.
Unplug connector C154 from alternator. Connector C154 has a Light Green/Red wire. Connect jumper wire between harness connector and ground. If charge warning remains, go to next step. If charge warning light goes away, repair alternator.
Turn ignition off, then on. Remove jumper wire at connector. Measure voltage between alternator terminal for Light Green/Red wire at connector to ground. If voltage is not higher than 4 volts, go to next step. If voltage is higher than 4 volts, go to step 5).

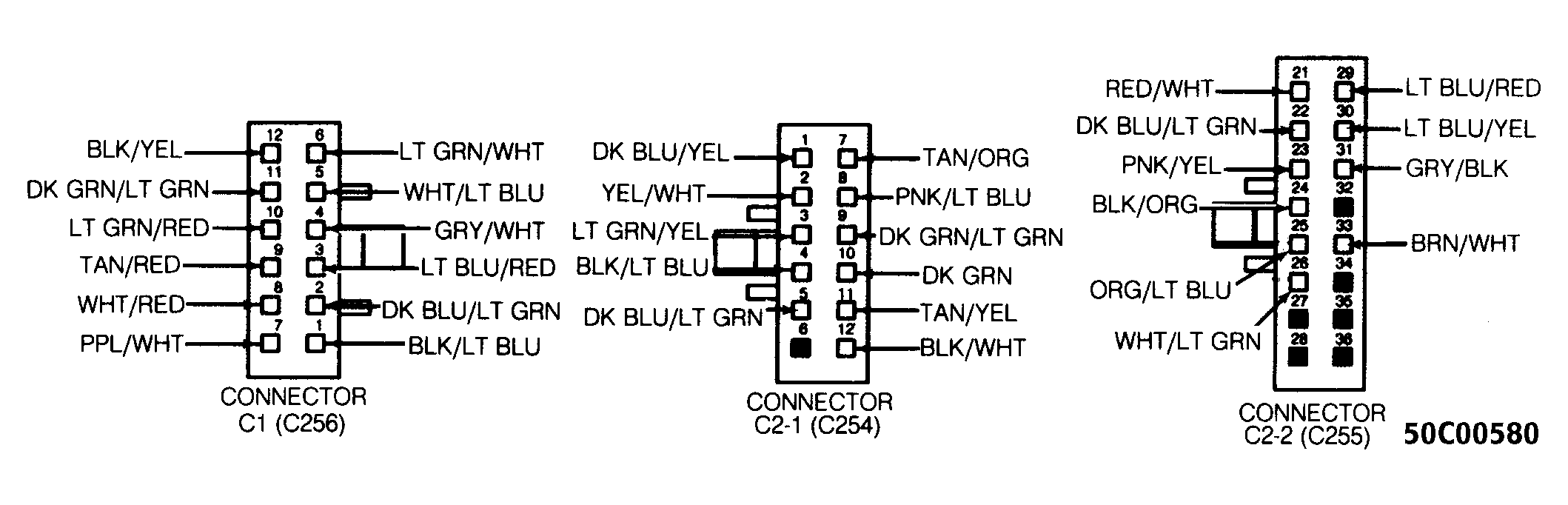

Turn ignition off. Remove EIC. See, under REMOVAL & INSTALLATION, ELECTRONIC INSTRUMENT CLUSTER (EIC) . Inspect for loose or corroded screws on charge indicator resistor located on back of EIC. Replace resistor if resistance is not 400 - 500 ohms. Check for continuity between resistor screws and Light Green/Red wire at connector C256 pin No. 10. Inspect for short to ground on Light Green/Red wire between EIC connector C256 pin No. 10 and connector C154 at alternator. See Figure . Repair wiring as necessary.
Turn ignition off. Remove EIC. See, under REMOVAL & INSTALLATION, ELECTRONIC INSTRUMENT CLUSTER (EIC) . Inspect Light Green/Red wire for continuity between EIC connector C256 pin No. 10 and connector C154 at alternator. Repair as necessary. If continuity exists, replace EIC. If continuity does not exist, repair Light Green/Red wire.
