Bushing Replacement

If upper control arm rear bushing is to be replaced, use Bushing Remover and Installer Set (T79P-5638-A) and (T86P-5638-AH). Place upper control arm rear bushing remover tool in position, and pull bushing out. See Fig 1 . Using installer, install NEW bushing assembly into bushing ear of rear axle. See Fig 2 .

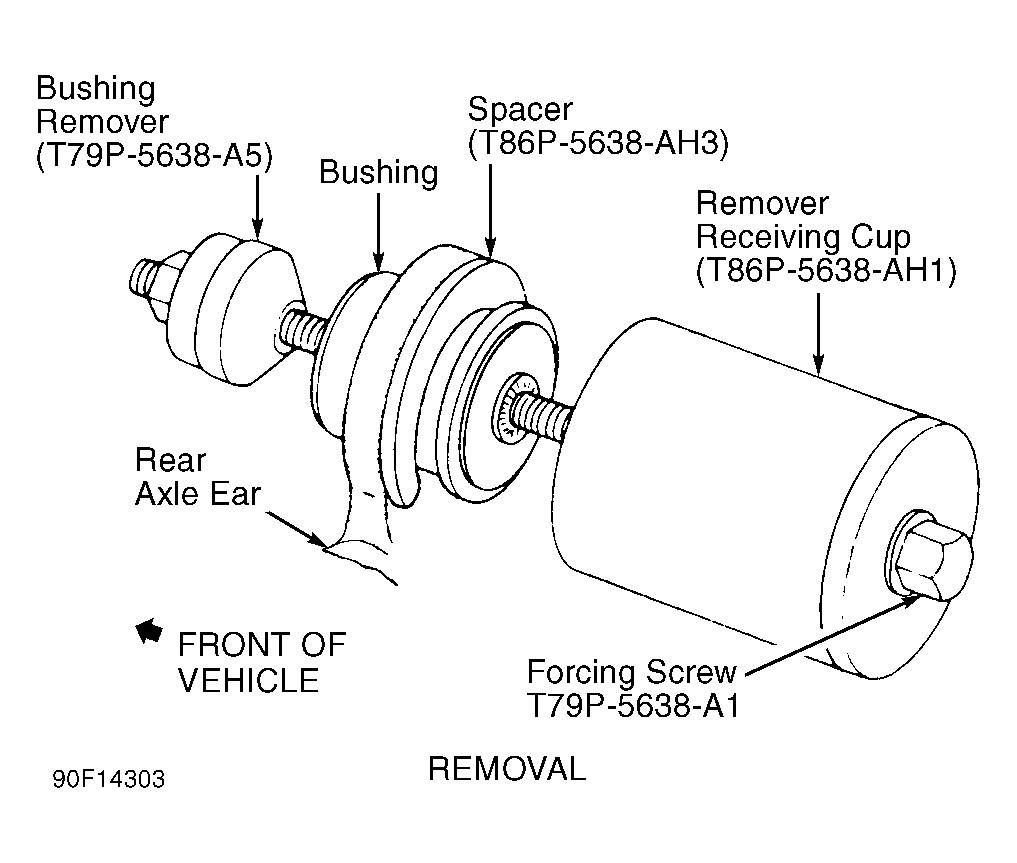

Fig 1: Removing Upper Control Arm Bushing

Courtesy of FORD MOTOR CO.

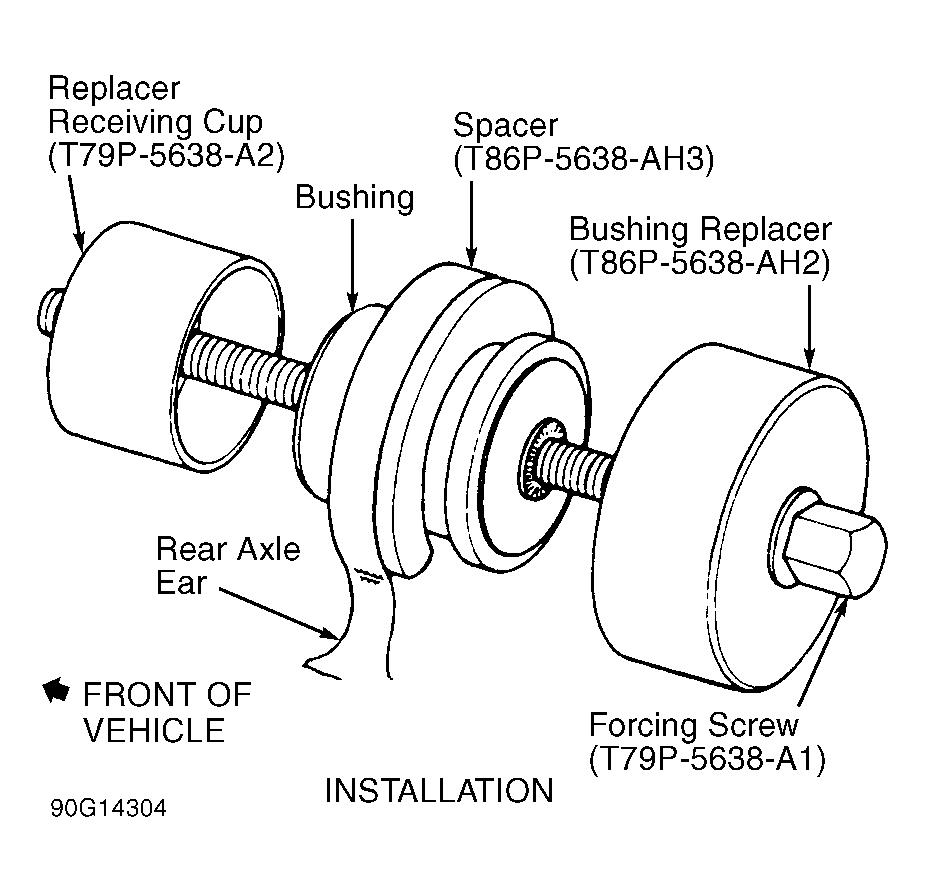

Fig 2: Replacing Upper Control Arm Bushing

Courtesy of FORD MOTOR CO.
