Riding Height
- Turn ignition on. Check riding height. Riding height is measured vertically from rear axle tube to frame rail. See RIDING HEIGHT SPECIFICATIONS TABLE.

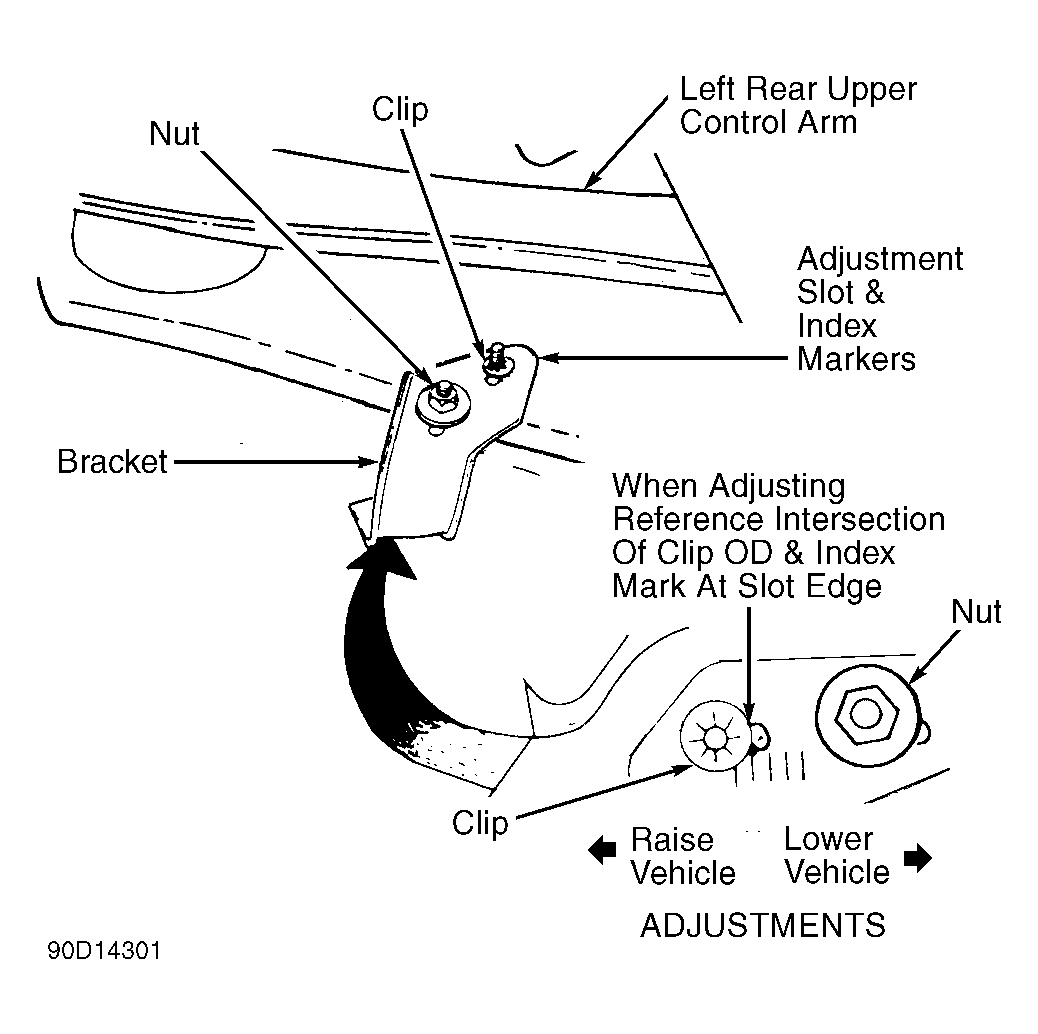

- Rear suspension riding height is adjusted by moving rear height sensor mounting bracket up or down based on left rear upper control arm position. A slot is provided on the bracket to adjust sensor up or down as required. Adjusting sensor attaching bracket one index mark will change riding height, or vertical dimension "D", approximately .35" (9 mm). See Fig 1 and Fig 2 .
RIDING HEIGHT SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Base Vehicle | 5.19-5.81 (131.8-147.5) |
| Touring Package | 4.80-5.42 (121.9-137.7) |
