Disc & Drum: Overhaul

NOTE: See Fig 1 -12 for exploded views of brake assemblies and components.

Fig 1: Exploded View of Front Brake Assembly (Capri)

Courtesy of FORD MOTOR CO.

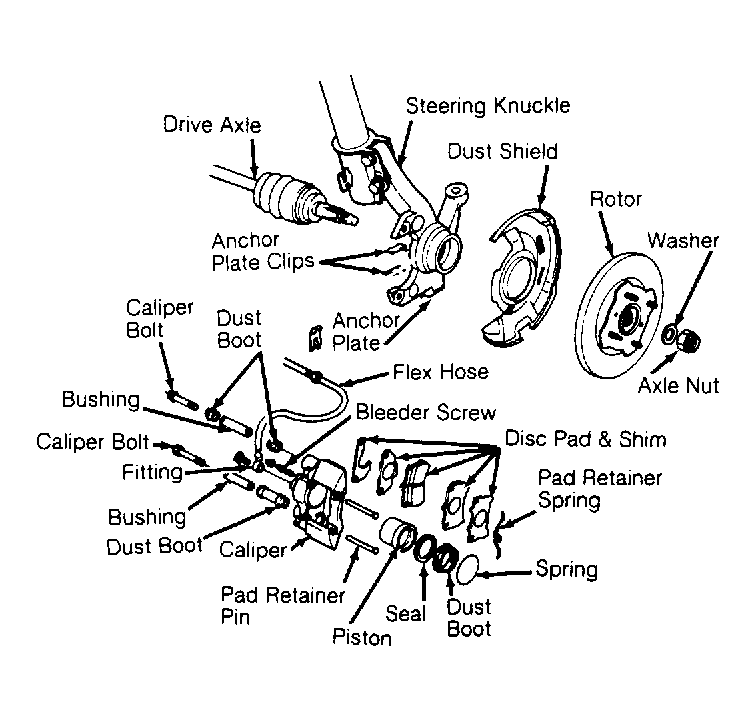

Fig 2: Exploded View of Front Brake Assembly (Festiva)

Courtesy of FORD MOTOR CO.

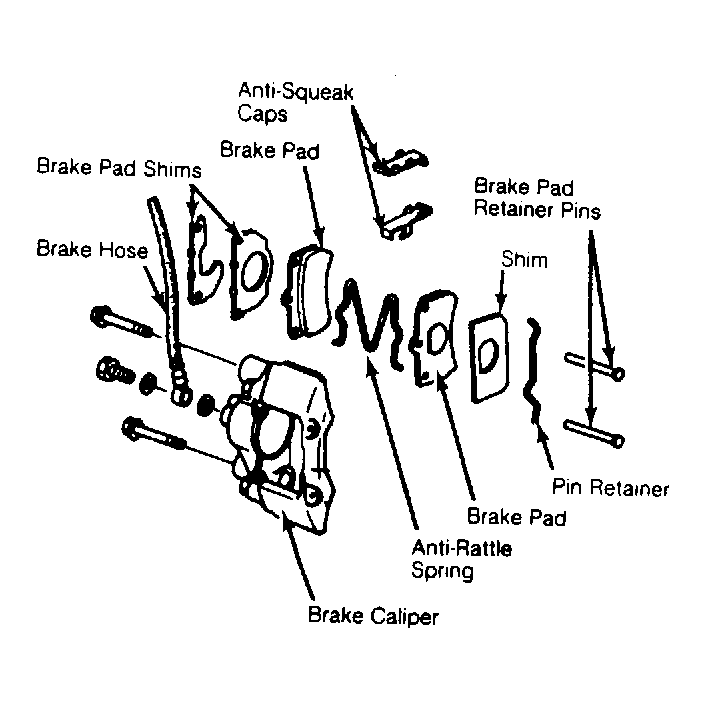

Fig 3: Exploded View of Rear Brake Caliper (Capri)

Courtesy of FORD MOTOR CO.

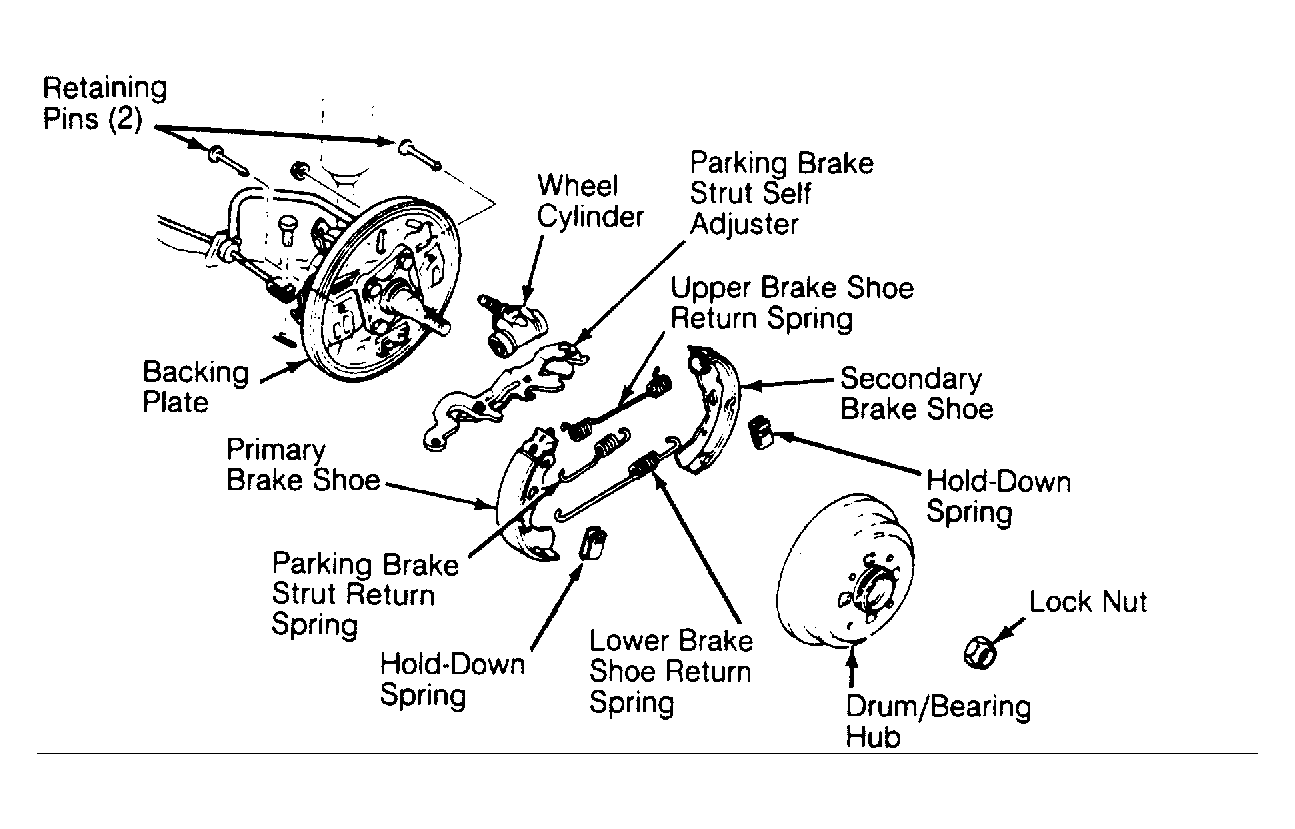

Fig 4: Exploded View of Rear Brake Assembly (Festiva)

Courtesy of FORD MOTOR CO.

Fig 5: Exploded View of Rear Wheel Cylinder (Festiva)

Courtesy of FORD MOTOR CO.

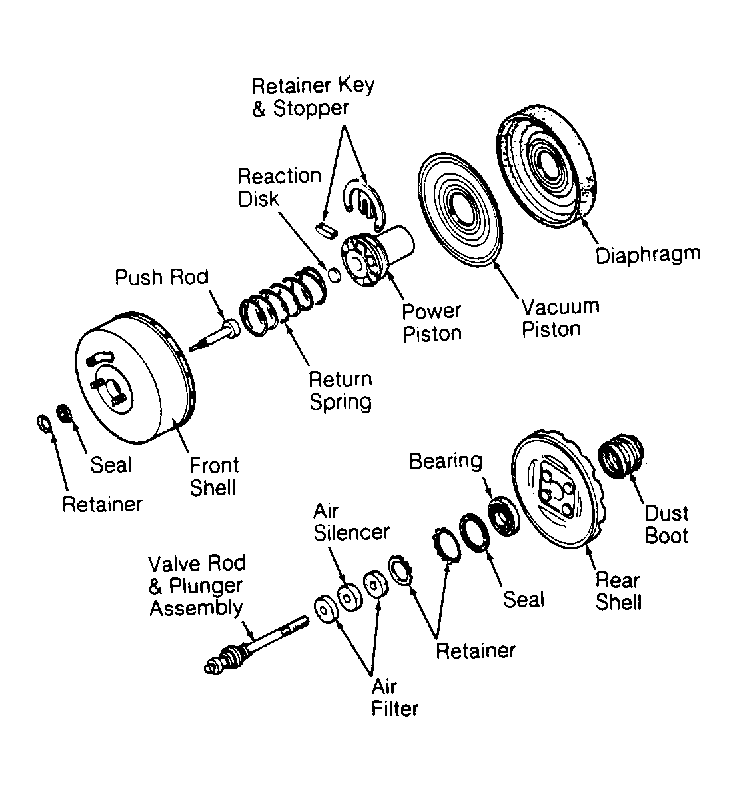

Fig 6: Exploded View of Power Brake Booster (Festiva)

Courtesy of FORD MOTOR CO.

Fig 7: Exploded View of Master Cylinder (Capri)

Courtesy of FORD MOTOR CO.

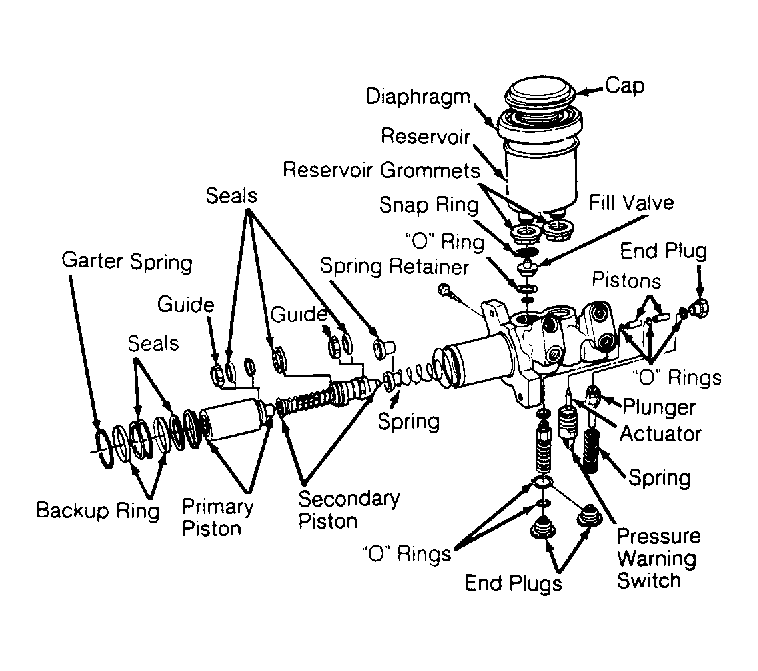

Fig 8: Exploded View of Master Cylinder (Festiva)

Courtesy of FORD MOTOR CO.
