Removal & Installation (Explorer)

  1. Remove the nuts, bolts and washers and disconnect the stabilizer from the links. See Fig 1 .
  2. Remove the bolts from the stabilizer bar axle retainers. Remove the retainers and stabilizer bar.
  3. To install, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

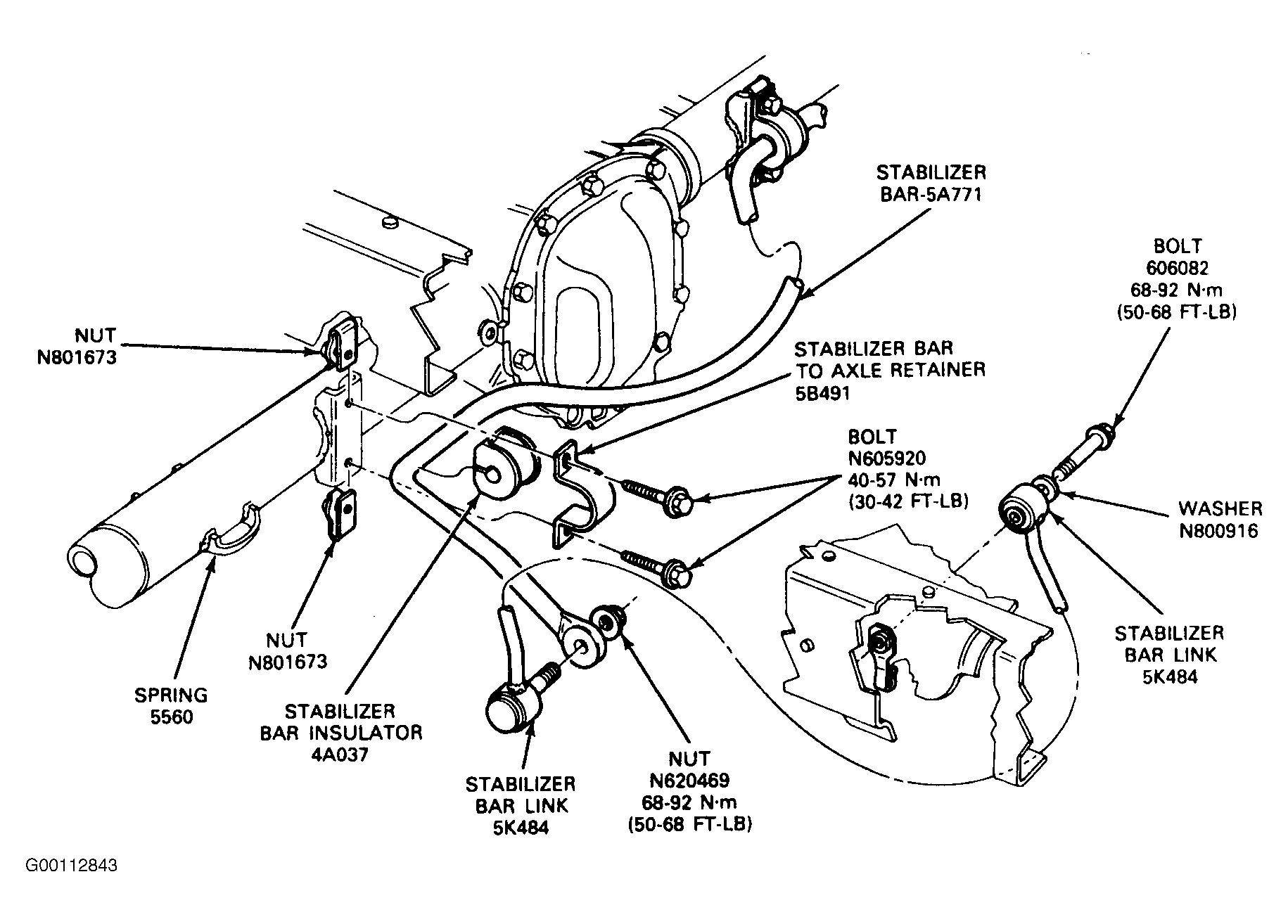

Fig 1: Installing Rear Stabilizer Bar (Explorer)
G00112843Courtesy of FORD MOTOR CO.
