Steering Knuckle R & I: Installation

To install, reverse removal procedure. Ensure camber adjuster is installed in original position. Install NEW nuts on ball joints. Install remaining components.

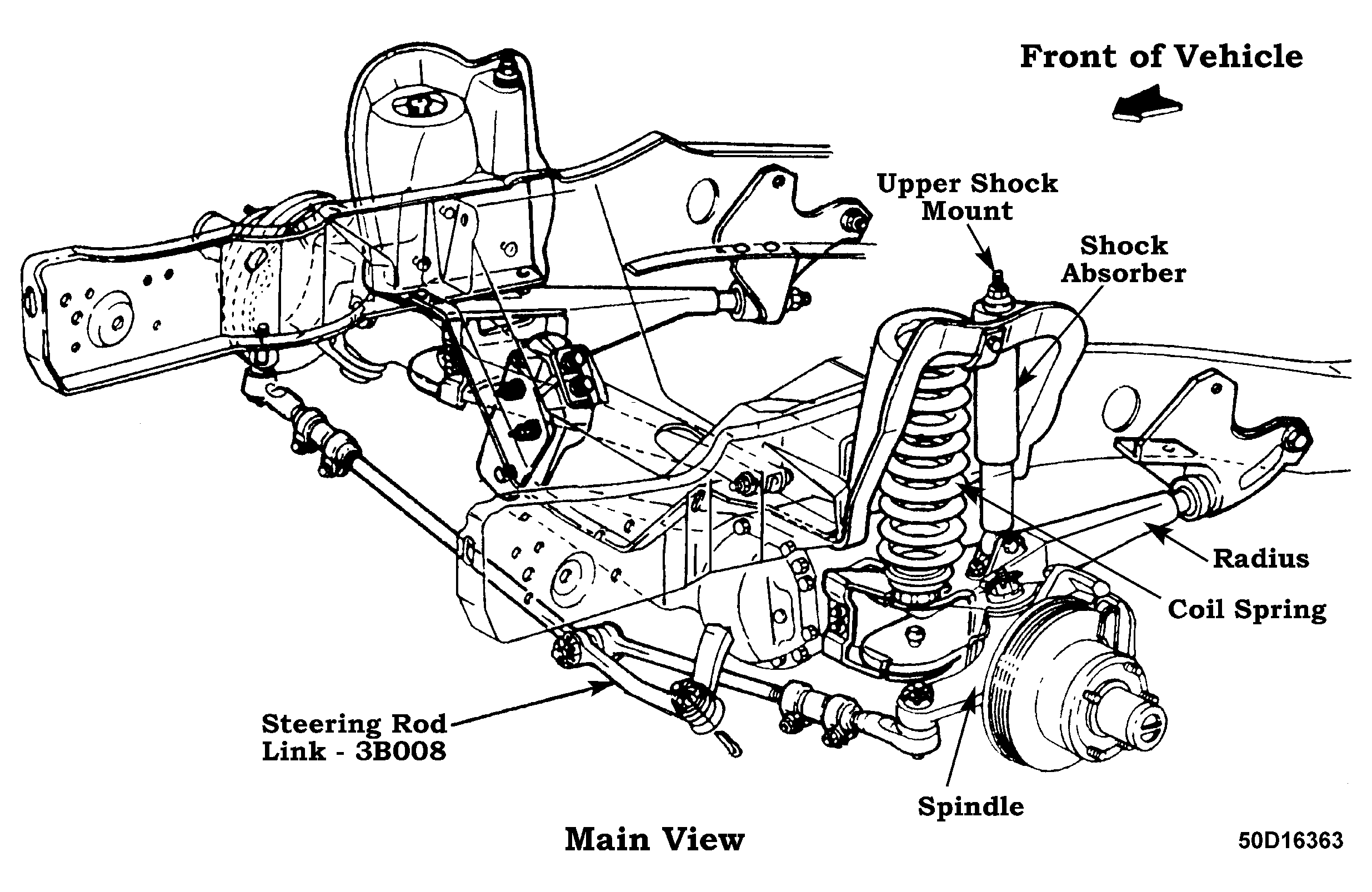

Fig 1: Identifying Front Suspension Components (Explorer & Ranger)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Front Suspension Components (Bronco & F150)

Courtesy of FORD MOTOR CO.
