Radius Arm R & I

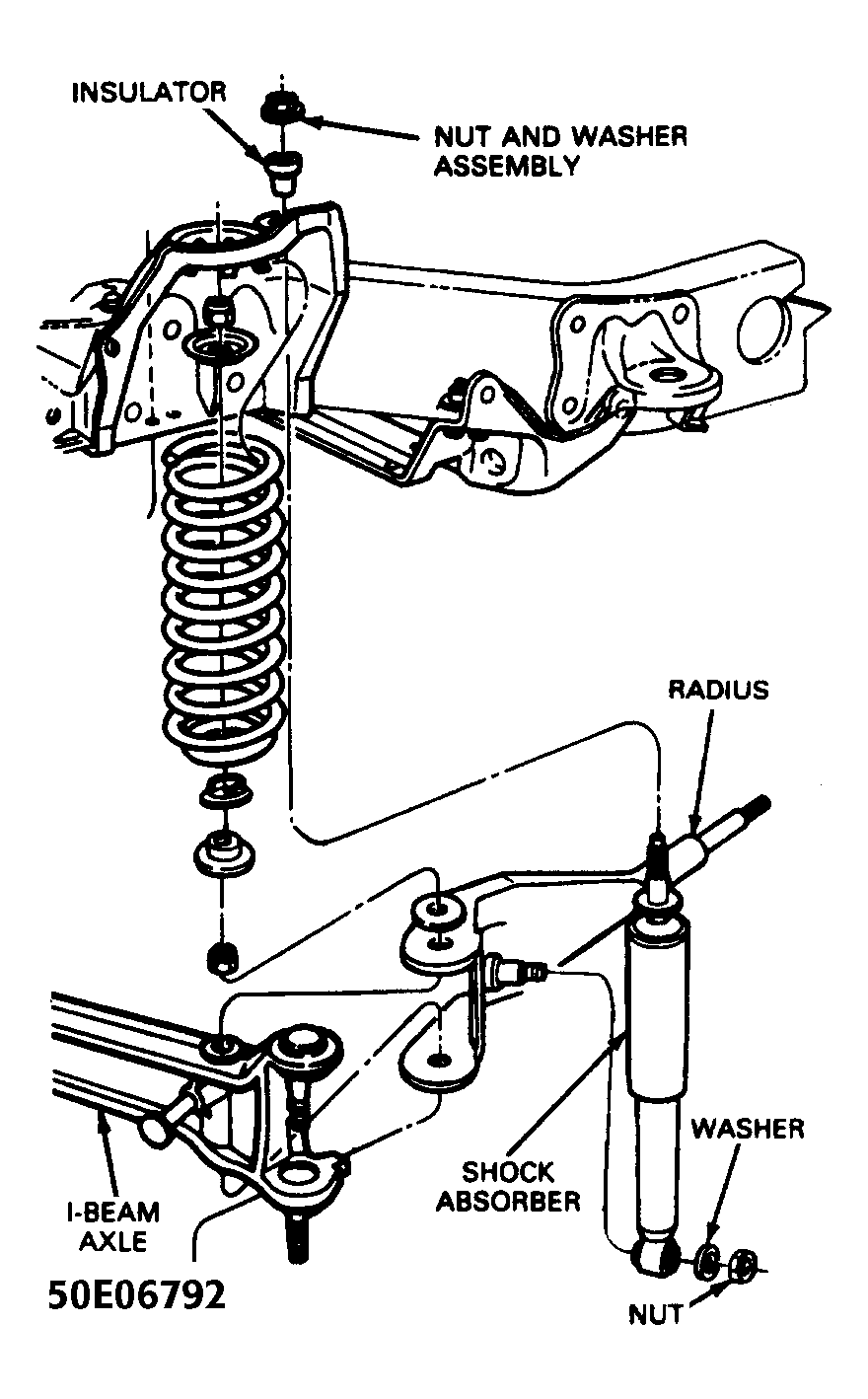

- Remove coil spring. See COIL SPRING R & I. Loosen axle pivot bolt. Remove lower spring seat from radius arm. Remove radius arm-to-axle bolt. See Fig 1.
- Remove nut and radius arm bushing from rear of radius arm. Remove inner bushing and retainer from radius arm stud. See Fig 1. To install, reverse removal procedure.
NOTE:
Figure 5 is a courtesy of Ford Motor Co.
