10-Pin Connector

For functions of 10-pin connector, See Fig 1 .

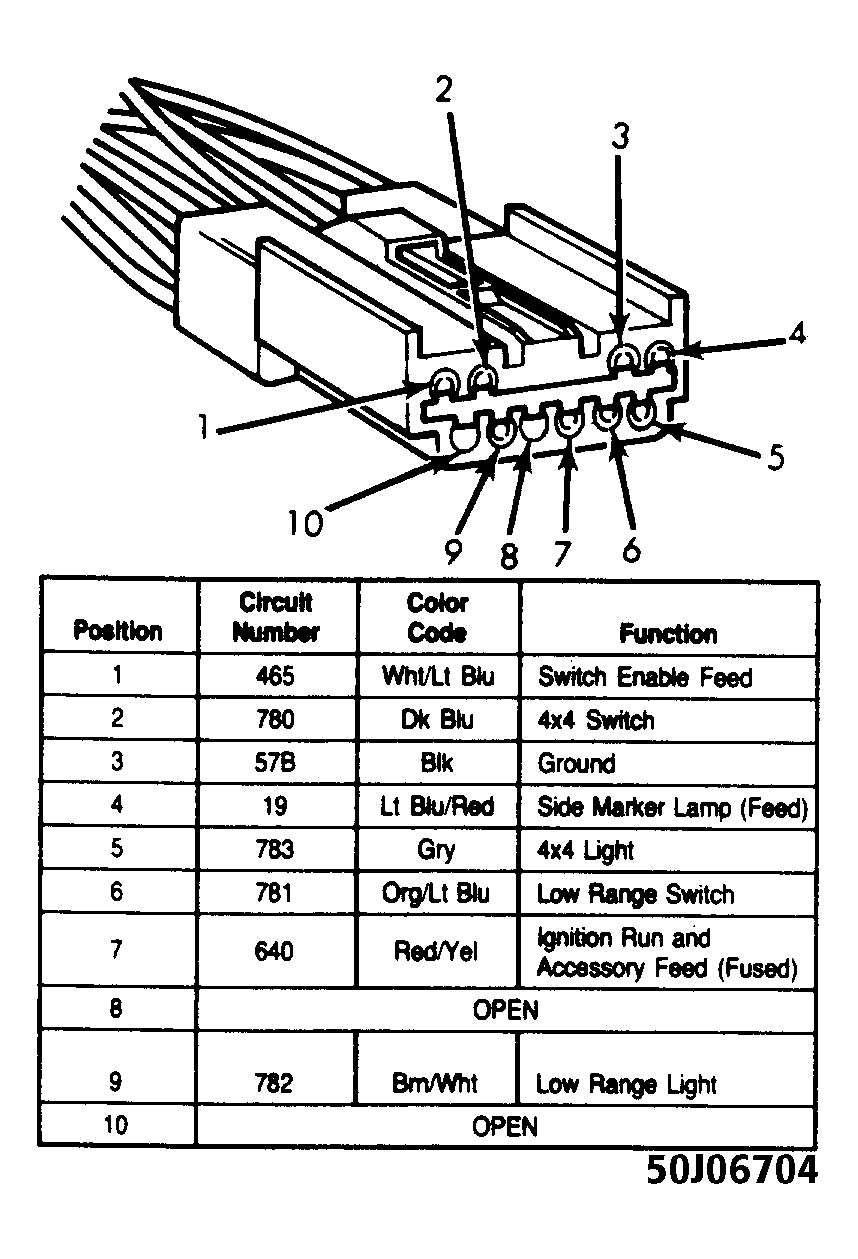

Fig 1: 5-Wire Connector Harness & Function Chart

G50J06704

Courtesy of FORD MOTOR CO.

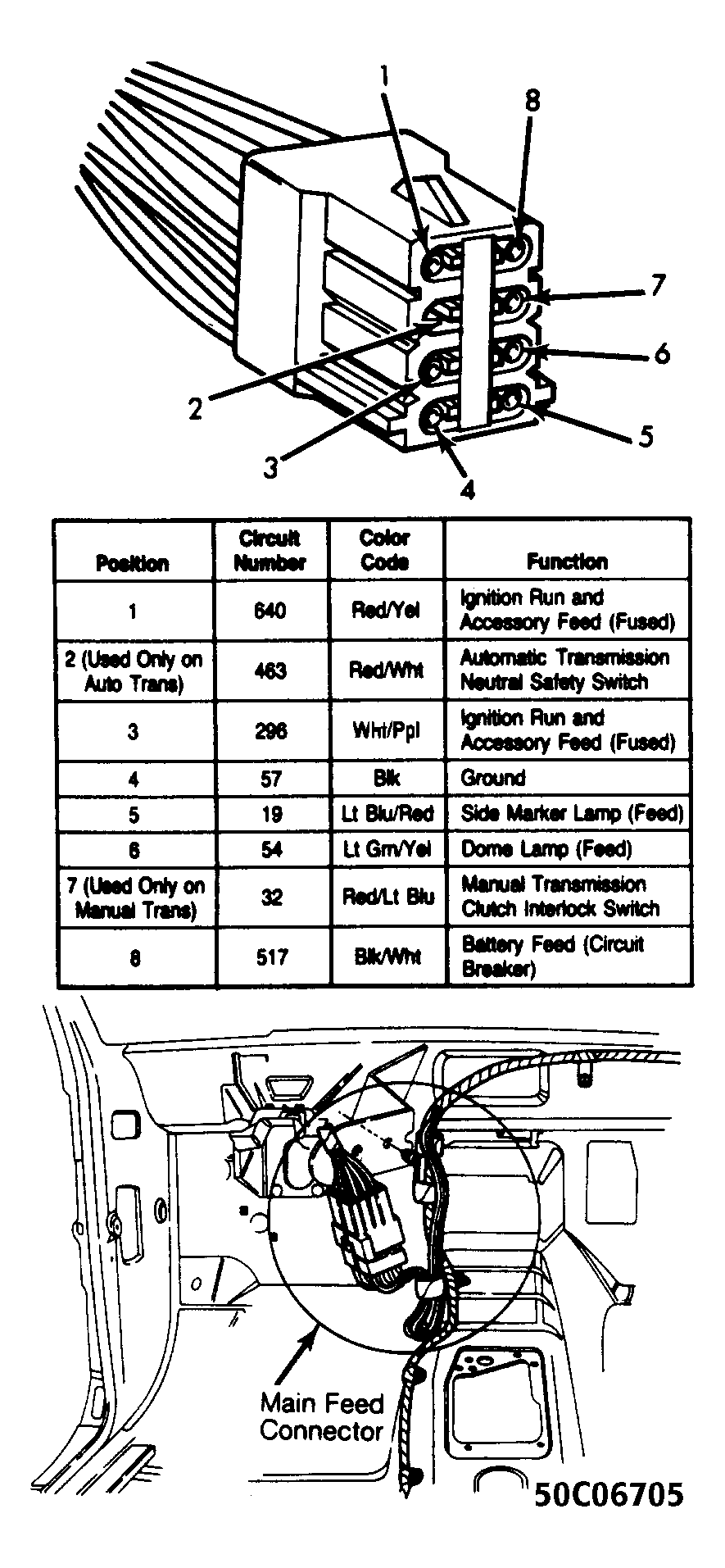

Fig 2: Main Feed Connector

G50C06705

Courtesy of FORD MOTOR CO.
