Clutch Packs: Removal

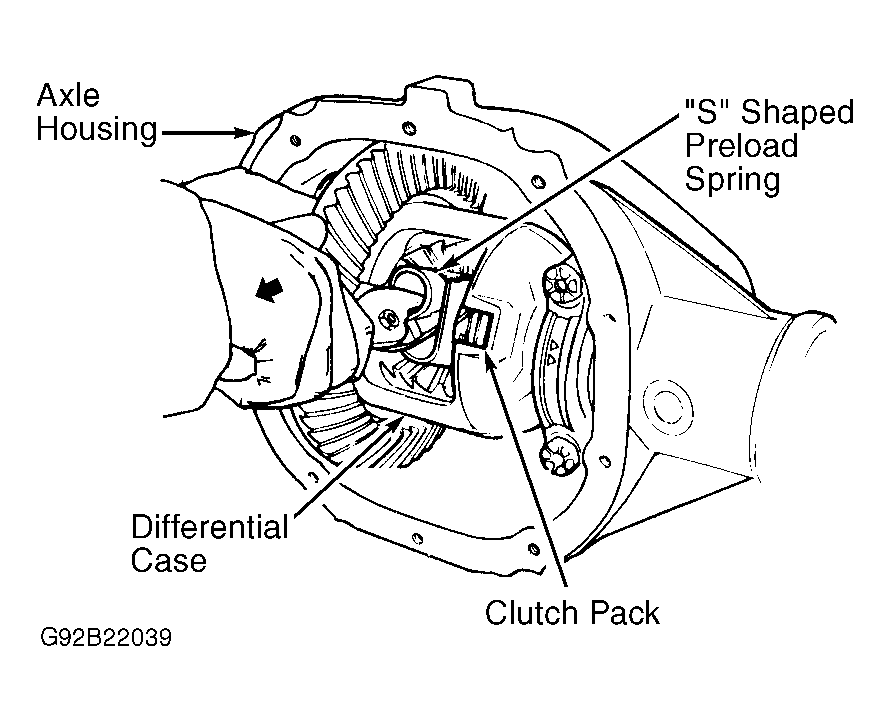

  1. Remove axle shafts. Using drift, drive "S"-shaped preload spring half-way out of differential case. See Figure . Rotate differential case 180 degrees. Grasp preload spring with pliers. Pull and tap preload spring until it is removed.
  2. Using Pinion Gear Rotator (T84P-4205-A for 7 1/2" ring gear; T80P-4205-A for 8 3/4" ring gear) with a 12" extension, rotate pinion gears until they can be removed from differential case. Remove both side gear and clutch pack assemblies, marking each assembly for installation reference.
