Removal (E250/350 & F250/350)

  1. Remove wheel assembly and brake drum. Remove parking brake lever assembly retaining nut from backing plate. Remove parking brake lever assembly. See Fig 1. Remove adjusting cable assembly from anchor pin, cable guide and adjusting lever.
  2. Remove brake shoe return springs, hold-down springs and brake shoes. Remove and disassemble adjusting screw assembly.

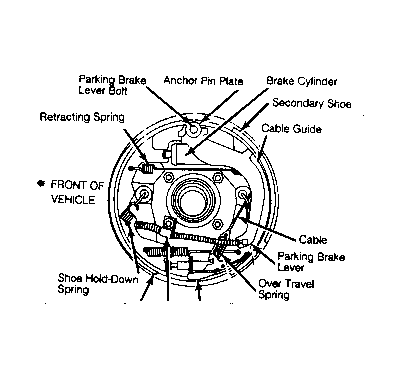

Fig 1: Examining Brake Assemblies (E250/350 & F250/350)
G117334Courtesy of FORD MOTOR CO.
