Drums Removed

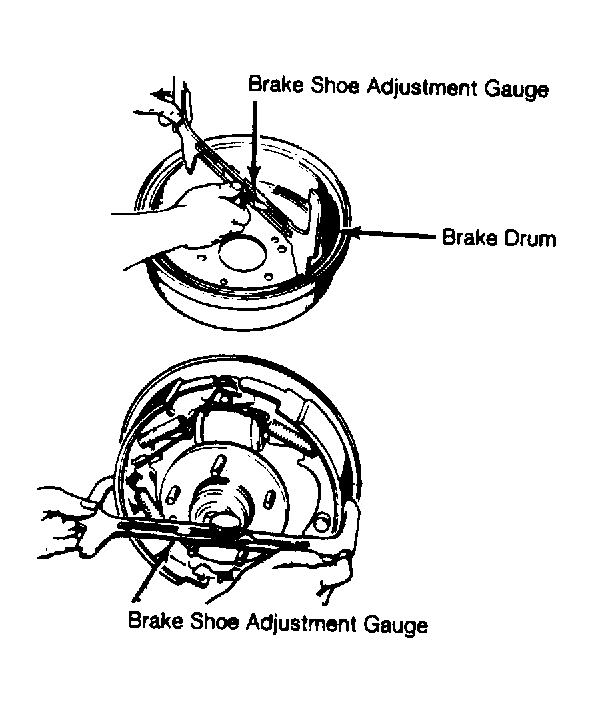

- Adjust with brake drums cold and parking brake correctly adjusted. Measure brake drum inside diameter using brake shoe adjustment gauge. See Fig 1.
Courtesy of FORD MOTOR CO.
- Reverse adjustment gauge. Apply gauge to brake shoes on a line parallel to ground and through center of axle. Hold adjusting lever away from adjusting screw. Turn screw until outside diameter of shoes contacts gauge. See Fig 1.
- Install brake drum and wheel assembly. Complete adjustment by applying brakes quickly several times while driving vehicle alternately forward and backward. Check brake operation by stopping often while driving forward.
