Cruise Control System Wiring Diagram (1991 Explorer & Ranger)
Cruise Control System Wiring Diagram (1991 Explorer & Ranger)

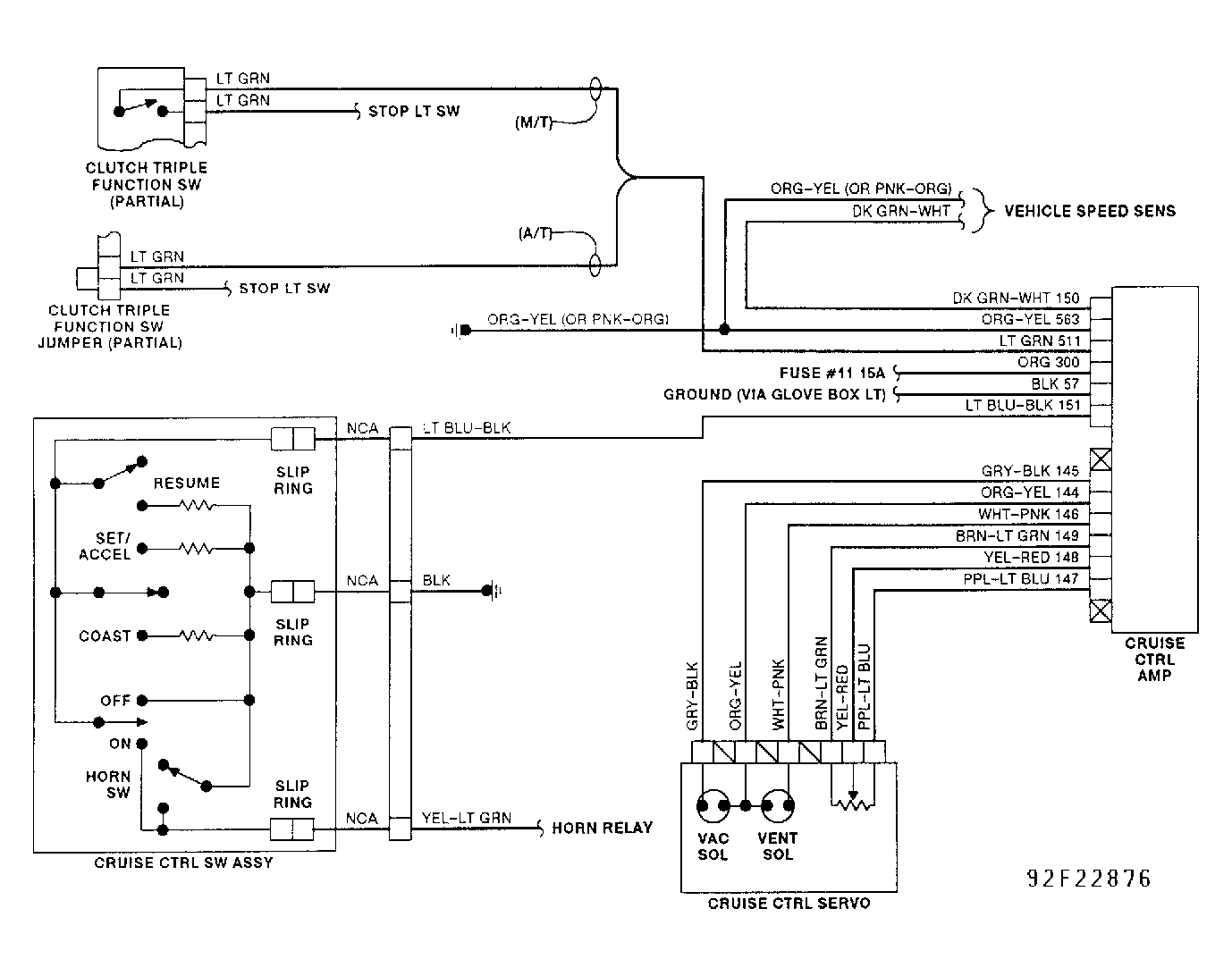

Fig 1: Cruise Control System Wiring Diagram (1991 Explorer & Ranger)
