Cruise Control System Wiring Diagram (1991 Bronco & Pickup)

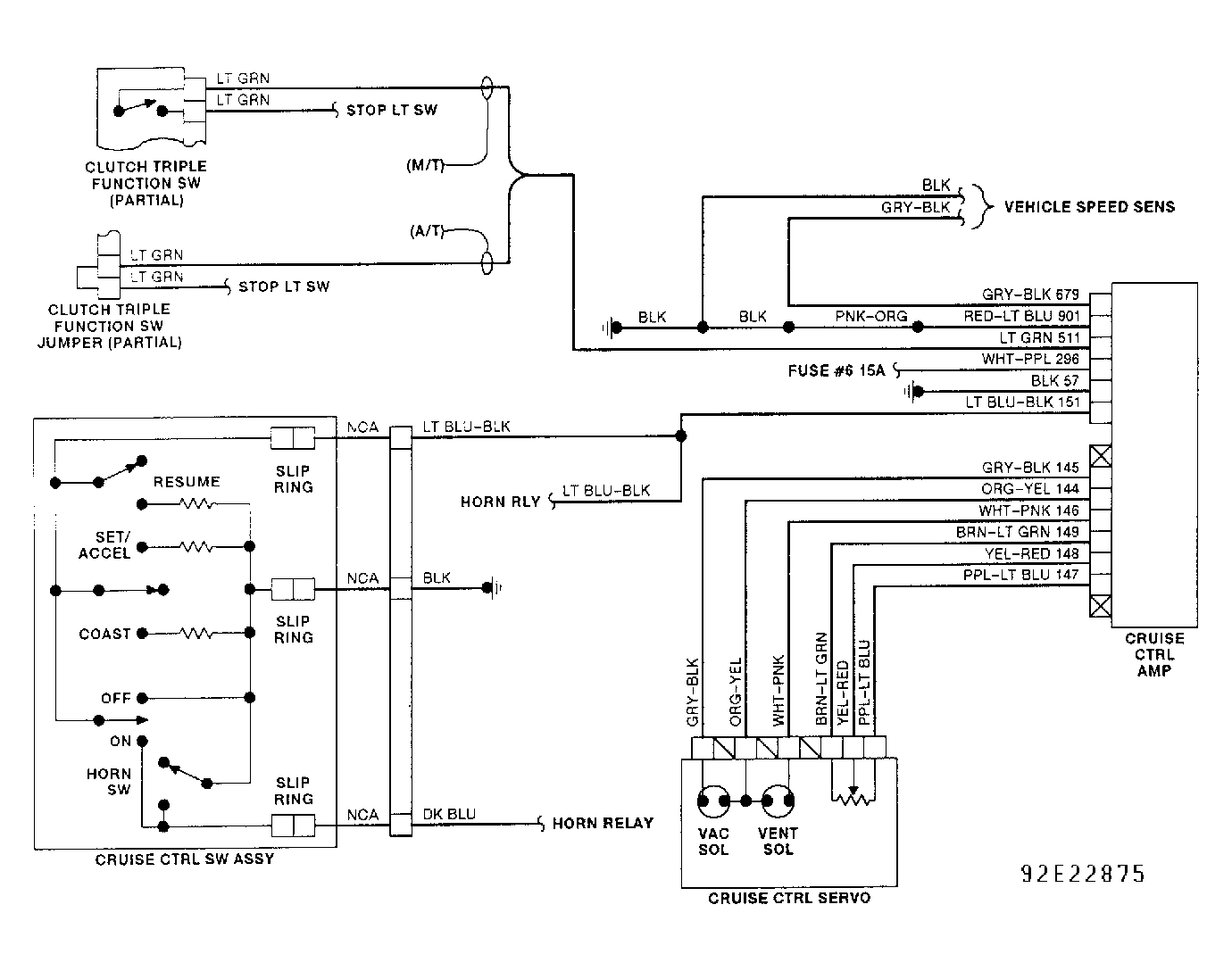

Fig 1: Cruise Control System Wiring Diagram (1991 Bronco & Pickup)

G92E22875
