Cruise Control System Wiring Diagram (1991 Aerostar)

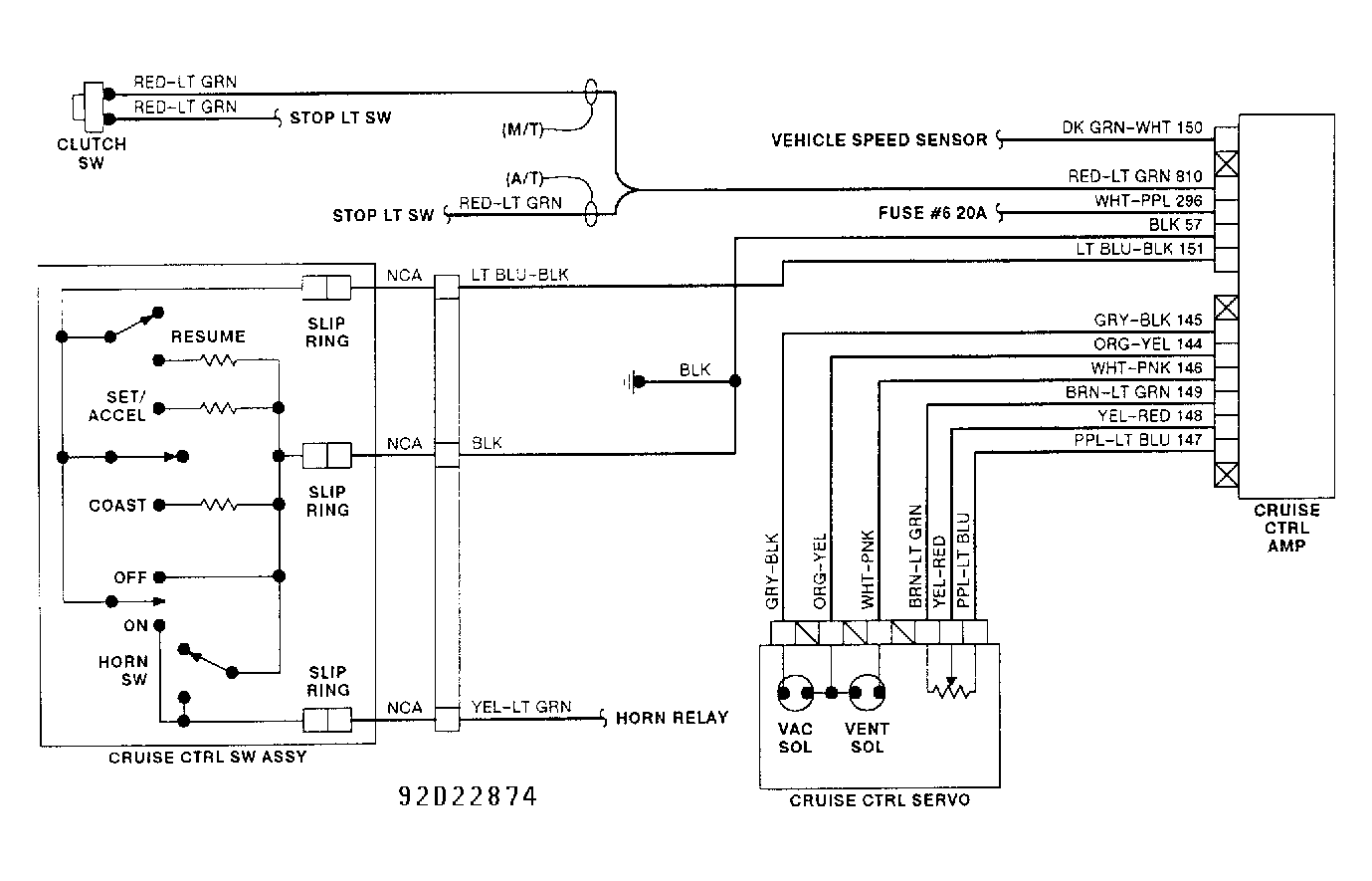

Fig 1: Cruise Control System Wiring Diagram (1991 Aerostar)

G92D22874
