Wiring Diagrams - Crown Victoria & Grand Marquis
Wiring Diagrams - Crown Victoria & Grand Marquis

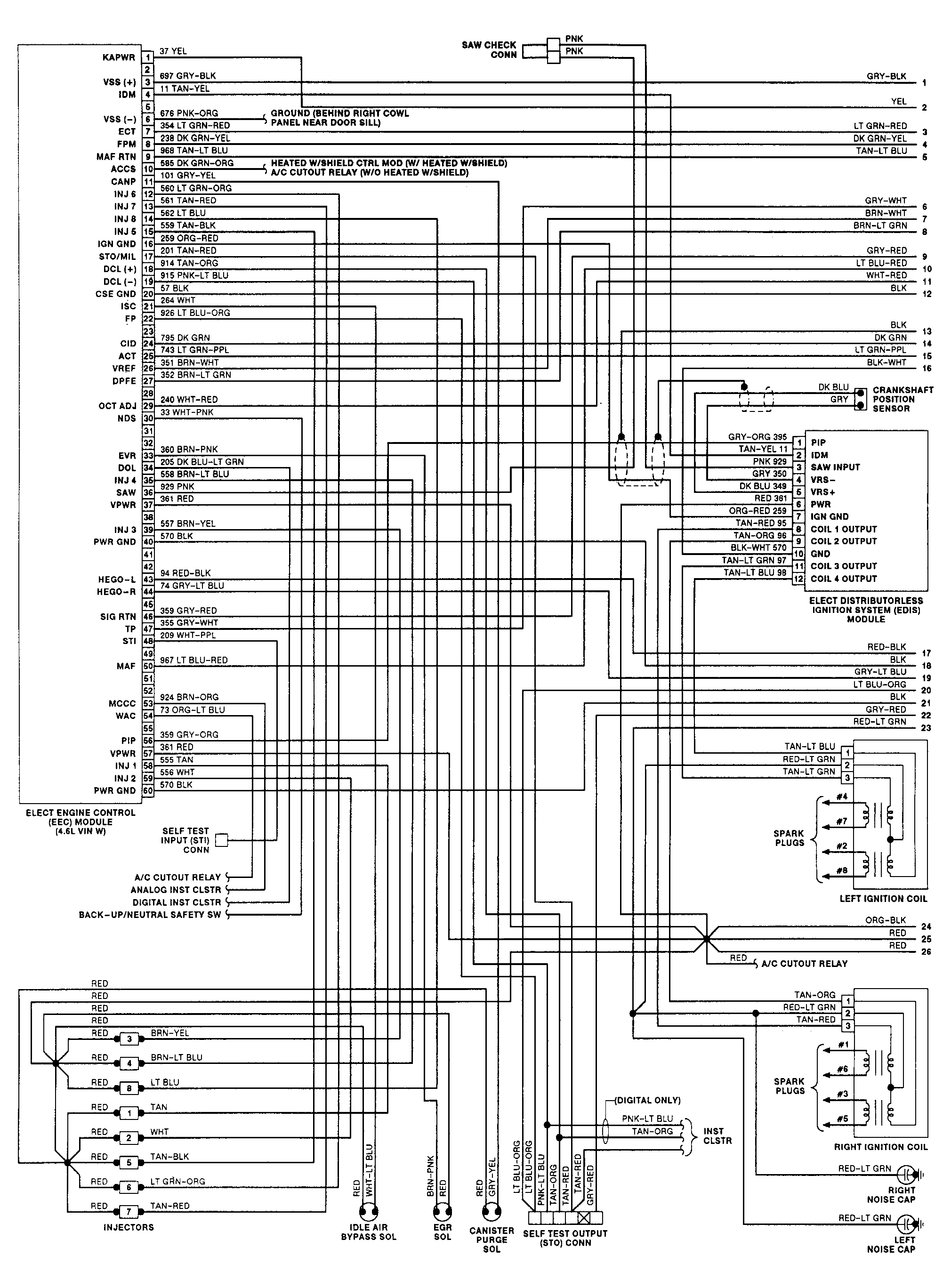

Fig 1: EEC-IV Wiring Diagram (Crown Victoria/Grand Marquis 1 of 2)

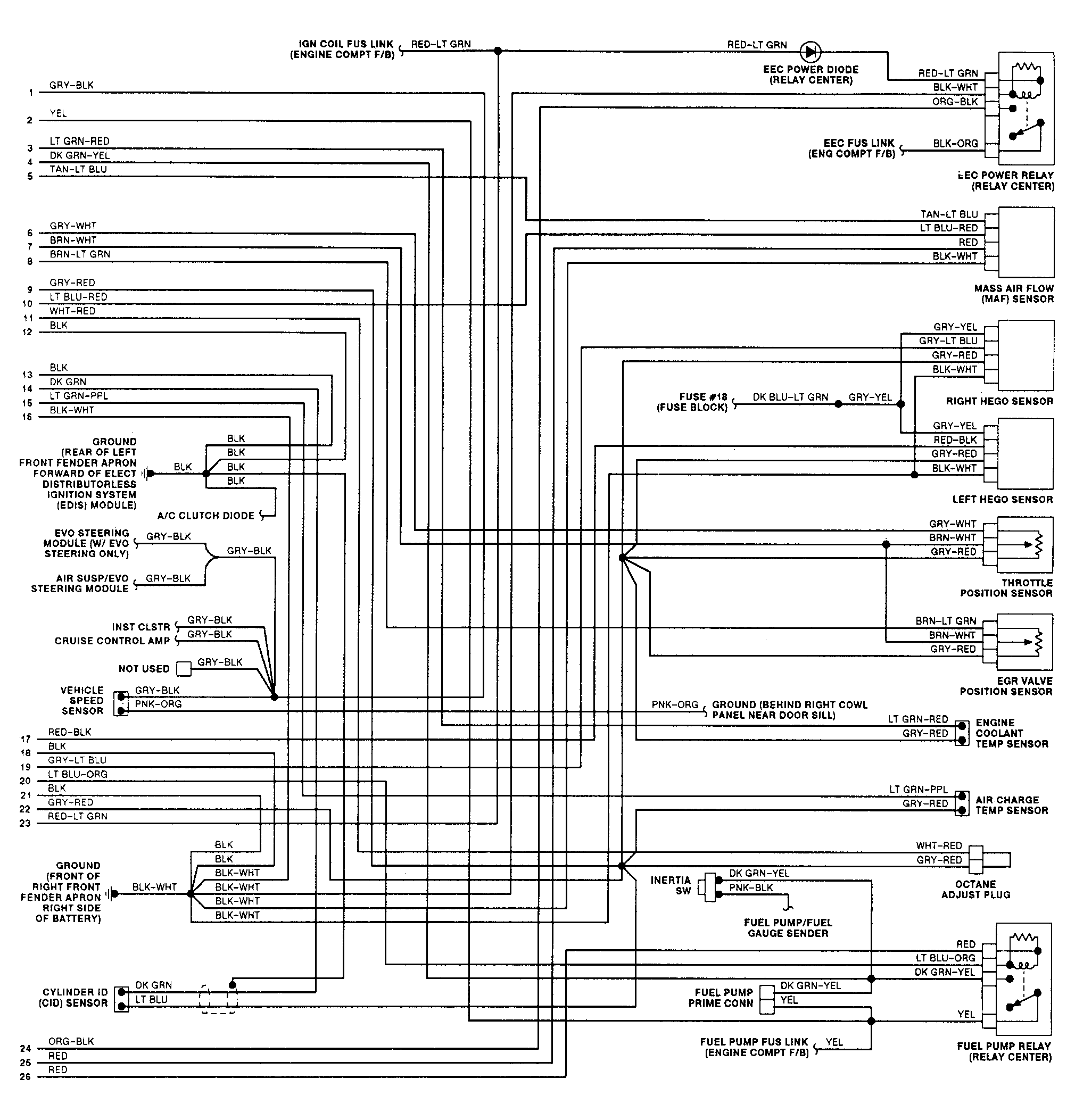

Fig 2: EEC-IV Wiring Diagram (Crown Victoria/Grand Marquis 2 of 2)
