Serpentine Belt Routing (Tempo 2.3L & Topaz 2.3L)

NOTE: Fig 1 has been revised as per TSB #93-26-11 dated December 22, 1993.

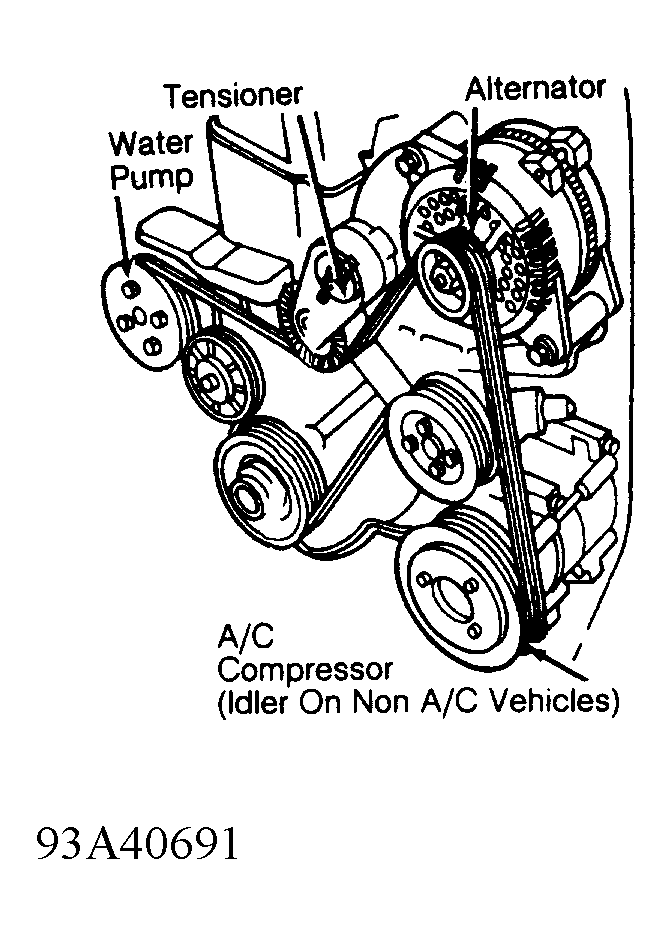

Fig 1: Serpentine Belt Routing (Tempo 2.3L & Topaz 2.3L)
G93A40691Courtesy of FORD MOTOR CO.
