Serpentine Belt Routing (Sable 3.8L & TAURUS 3.8L)

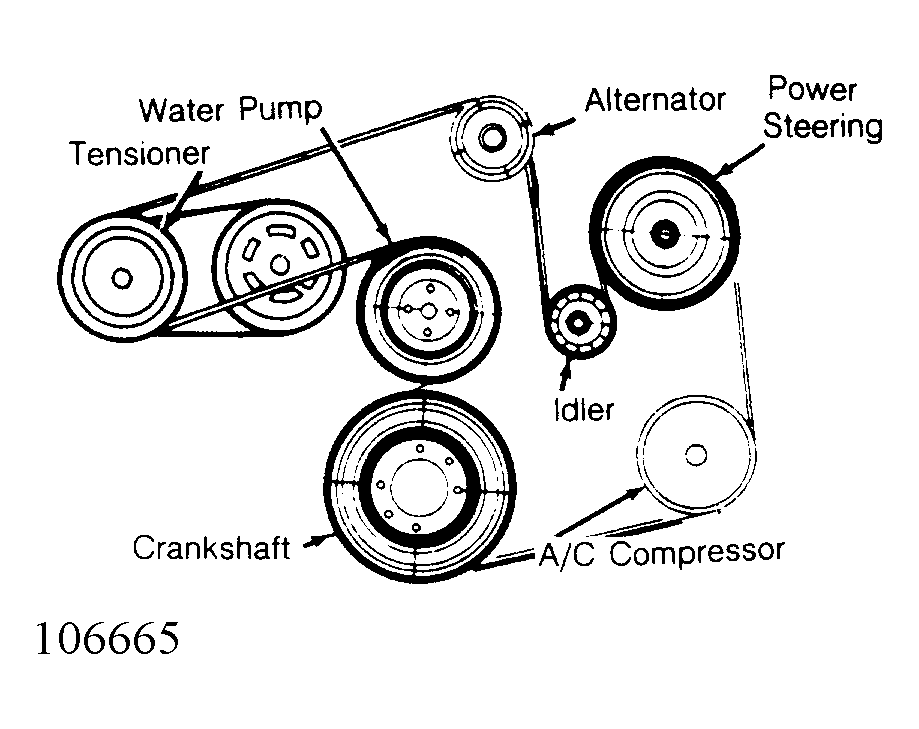

Fig 1: Serpentine Belt Routing (Sable 3.8L & Taurus 3.8L)

G106665

Courtesy of FORD MOTOR CO.
