Serpentine Belt Routing (Sable 3.0L & TAURUS 3.0L)

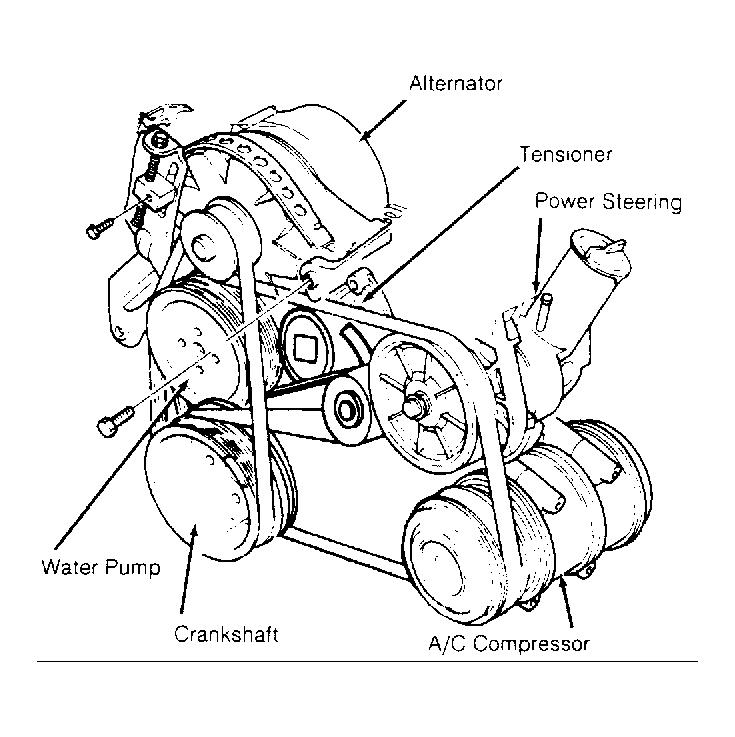

Fig 1: Serpentine Belt Routing (Sable 3.0L & Taurus 3.0L)

G106663

Courtesy of FORD MOTOR CO.
