Serpentine Belt Routing (Escort 1.9L & Tracer 1.9L)

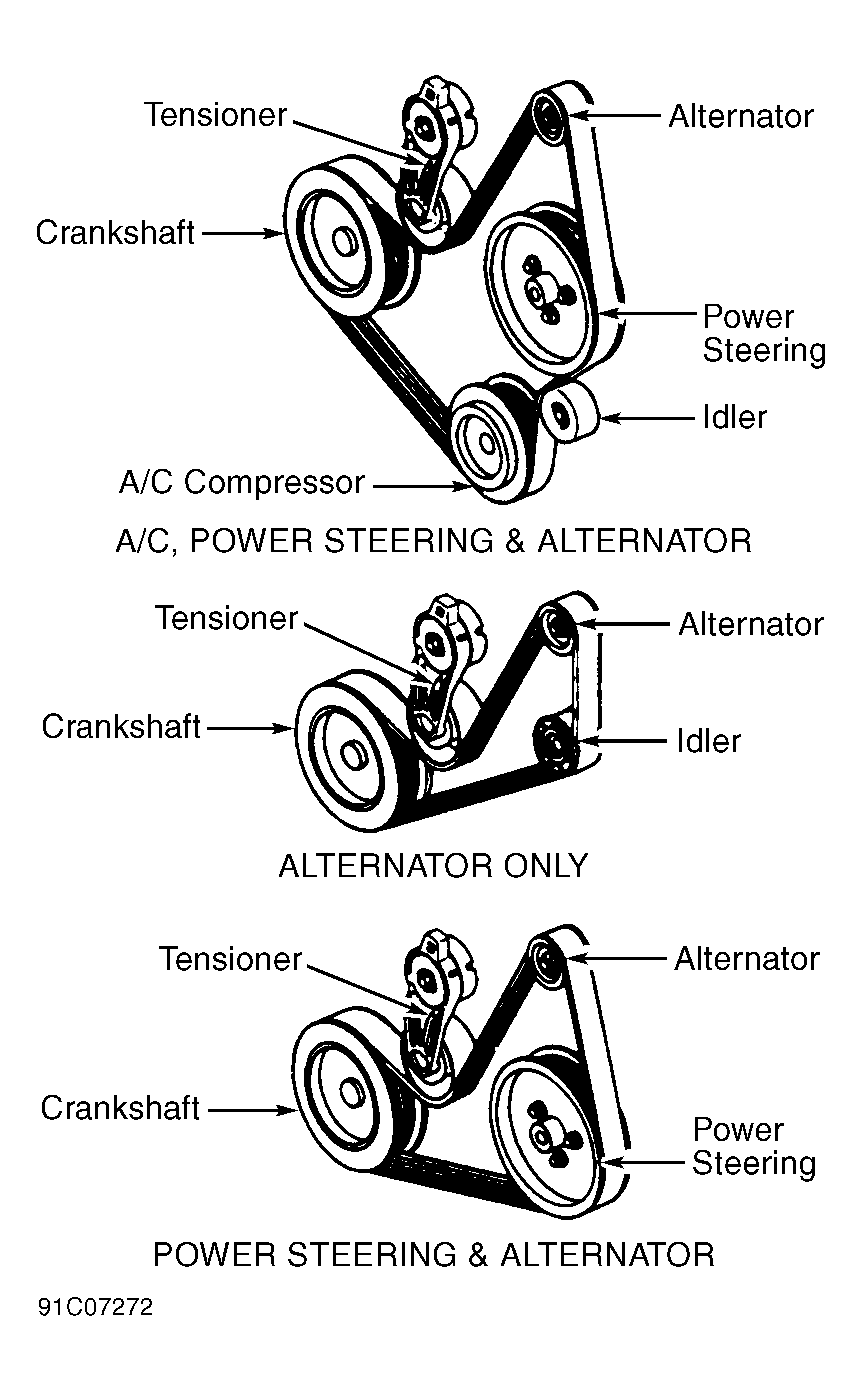

Fig 1: Serpentine Belt Routing (Escort 1.9L & Tracer 1.9L)

G91C07272

Courtesy of FORD MOTOR CO.
