Sliding Glass Panel Height (Rear Area of Glass)

From inside the vehicle, move the sun shade rearward. Loosen the adjusting screw. Slide the glass panel up or down as necessary. Tighten the adjusting screw. See Fig 1. Close the sliding glass panel and verify that the adjustment between the glass panel and the roof is not greater than 1.5mm (0.06 inch). See Fig 2.

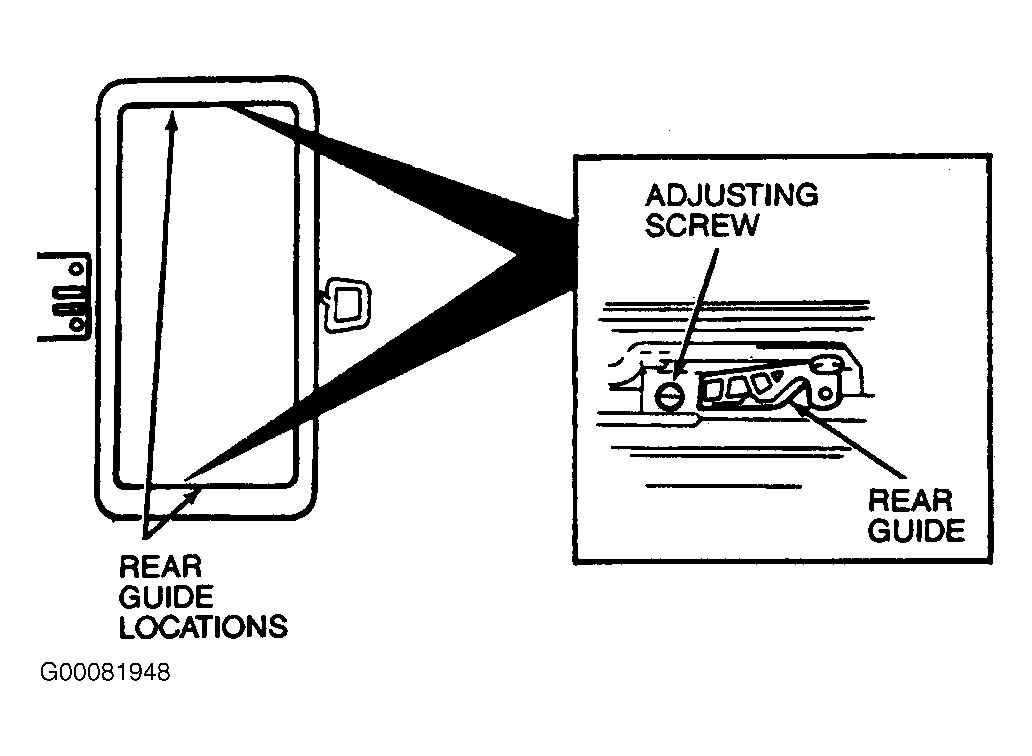

Fig 1: Adjusting Sliding Glass Panel Height (Rear Area Of Glass)

Courtesy of FORD MOTOR CO.

Fig 2: Verifying Sliding Panel Adjustment

Courtesy of FORD MOTOR CO.
