Valve Body Assembly: Disassembly

  1. Remove and discard valve body gasket. Remove retaining bolts. Remove separator plate, reinforcement plates, and separator plate gasket. Discard gasket.

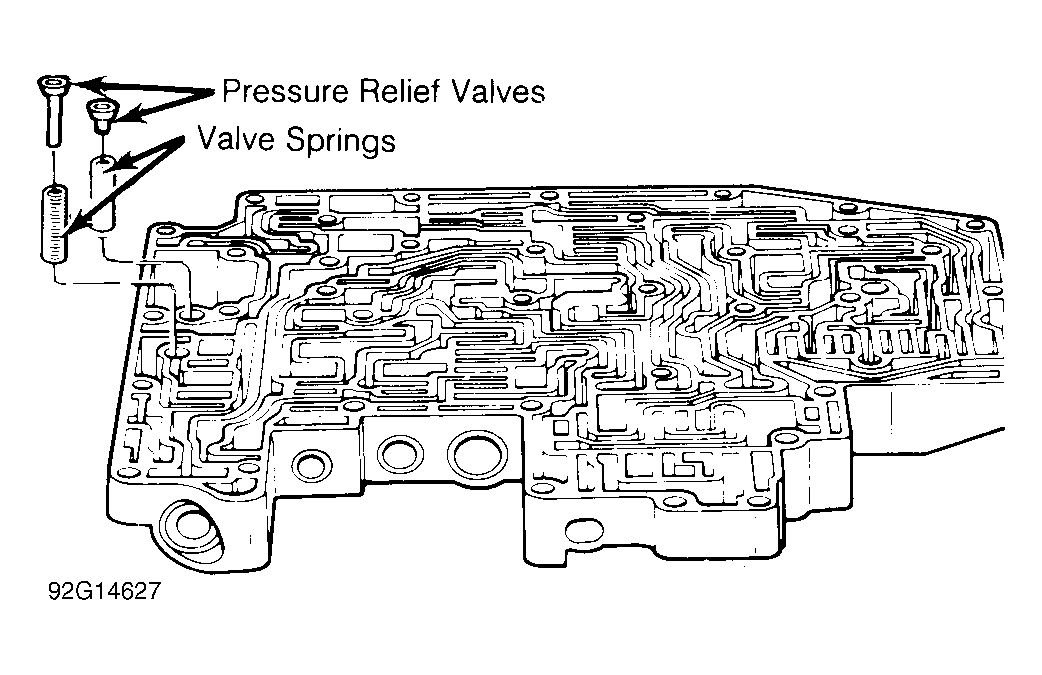

  2. Remove 2 relief valves and 7 check balls from valve body. Note location of Orange check ball. Orange check ball is NOT  interchangeable with 6 Black check balls. See Fig 1 .
  3. Remove retaining plates, valves and springs. Keep all valves and springs in original order for reassembly reference. See Figure .
Fig 1: Locating Check Balls in Valve Body
G92E14625Courtesy of FORD MOTOR CO.

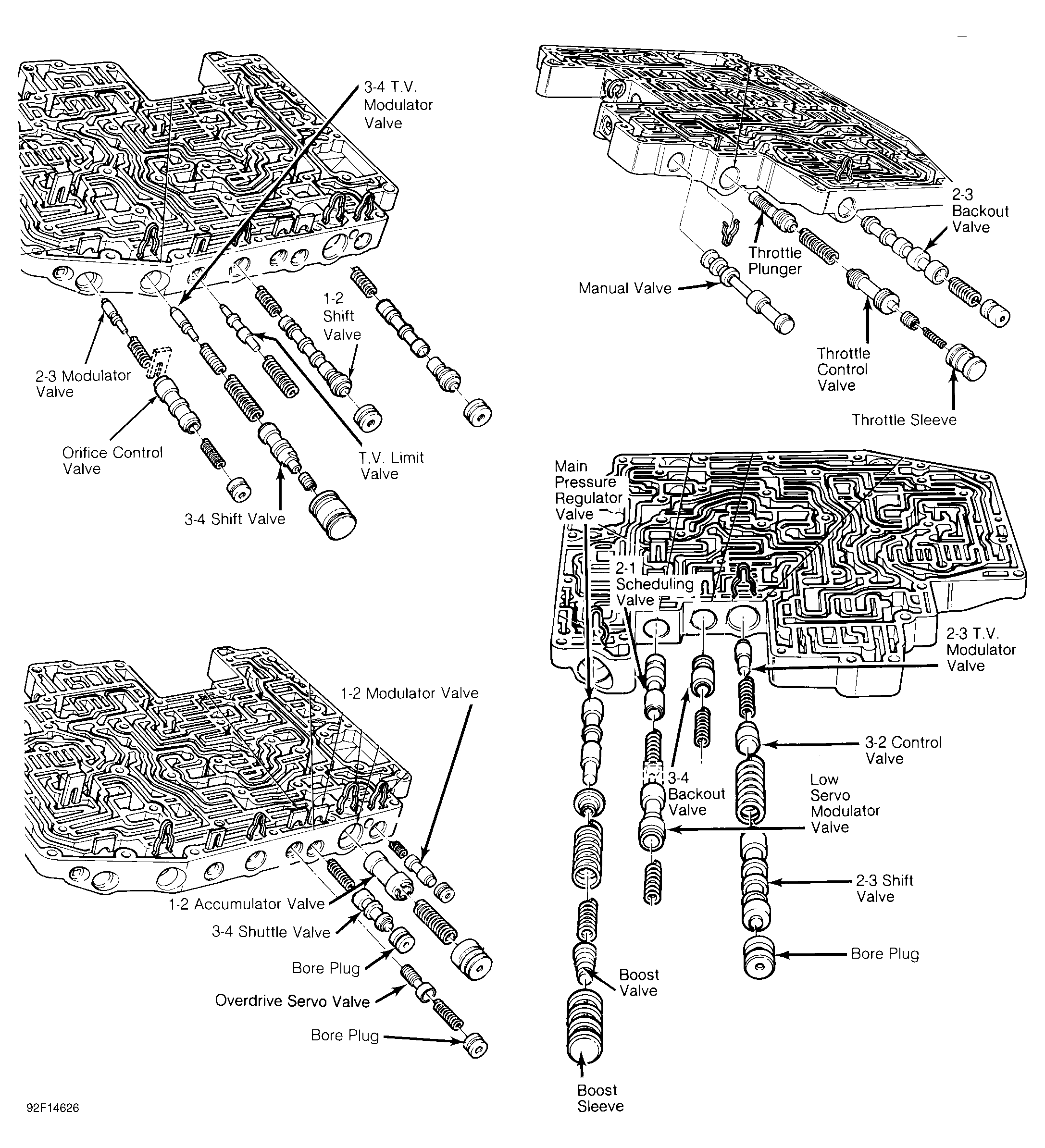

Fig 2: Exploded Views of Valve Body Components
G92F14626Courtesy of FORD MOTOR CO.
