Manual & Throttle Linkage: Reassembly

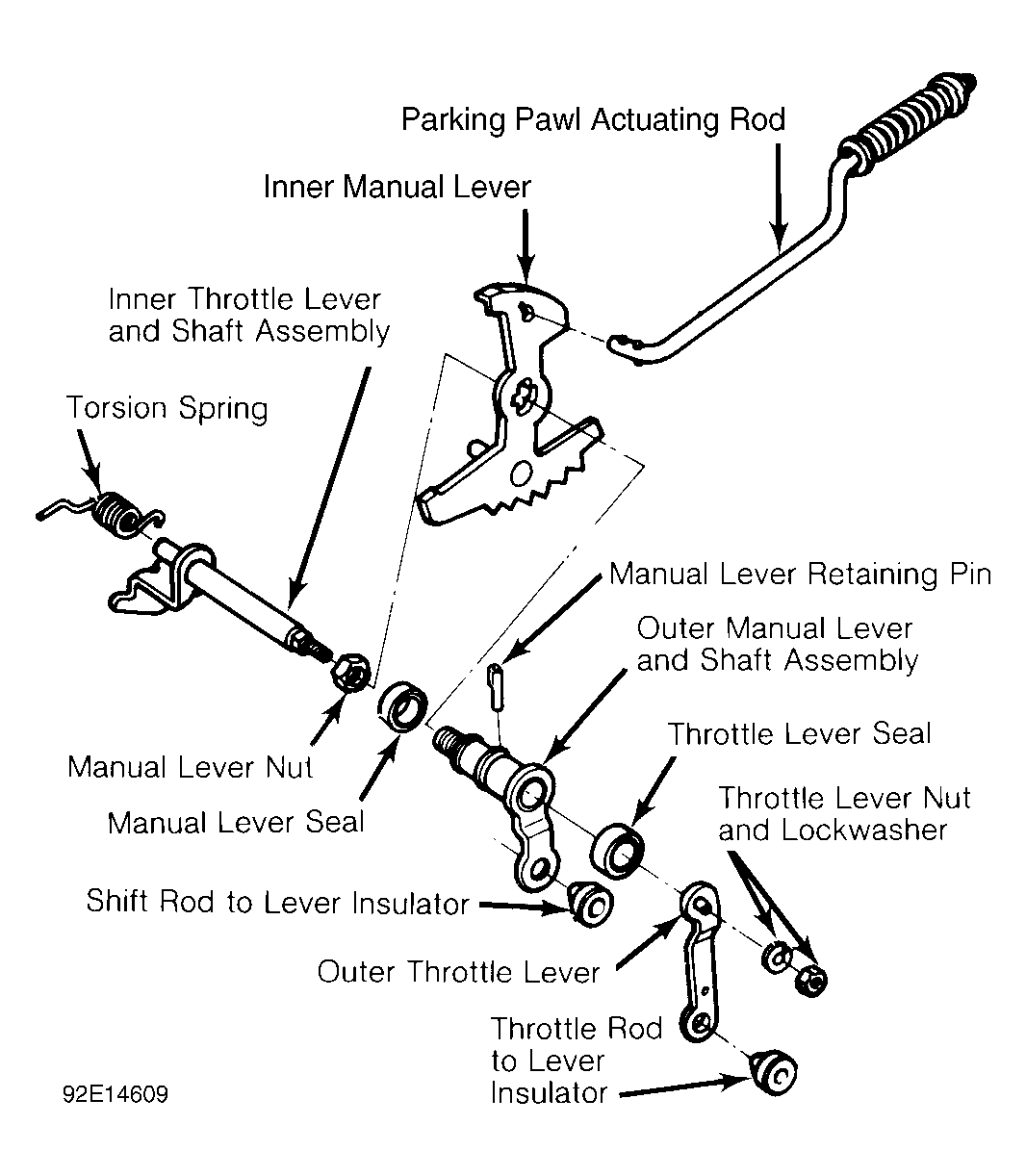

To reassemble, reverse disassembly procedure. See Figure . Install new manual lever seal using Seal Installer (T74P-77498-A). Before installing outer throttle lever, install NEW seal in outer manual lever using a 13 mm socket. Install seal with identification number facing forward.
