Disassembly & Reassembly

Remove clutch retaining ring and lift off clutch retaining plate. Remove clutch outer race by lifting on race while turning counterclockwise. Carefully lift one-way clutch from inner race. See Fig 1 . To reassemble, reverse disassembly procedure.

NOTE: If a roller is damaged or lost, entire one-way clutch assembly must be replaced.

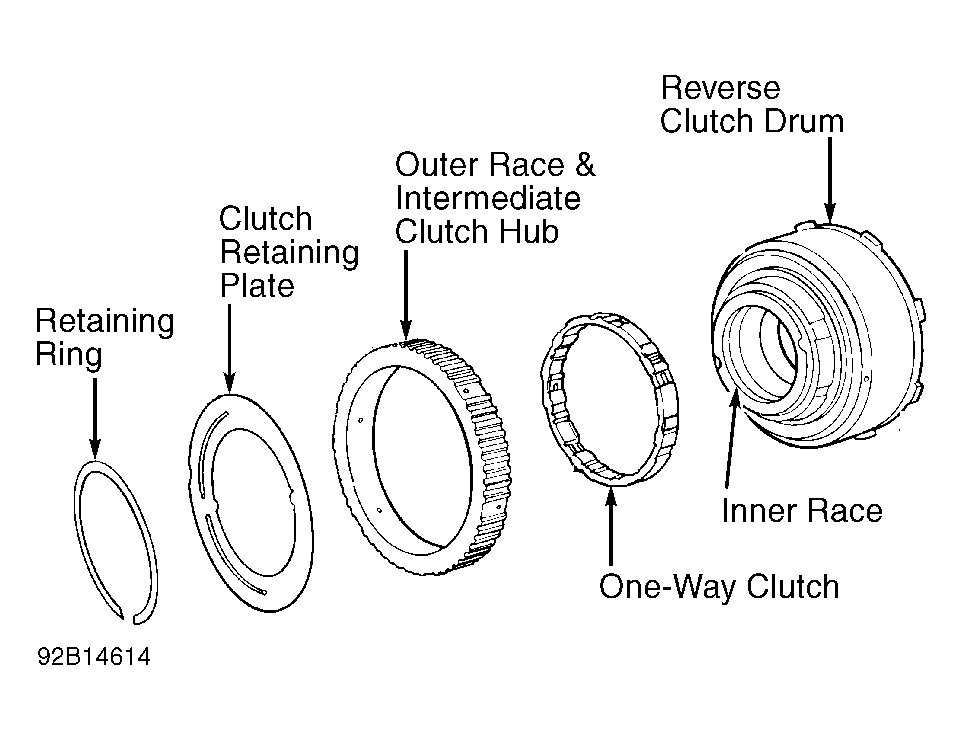

Fig 1: Exploded View of Intermediate One-Way Clutch Assembly

Courtesy of FORD MOTOR CO.
