Low-Reverse Servo

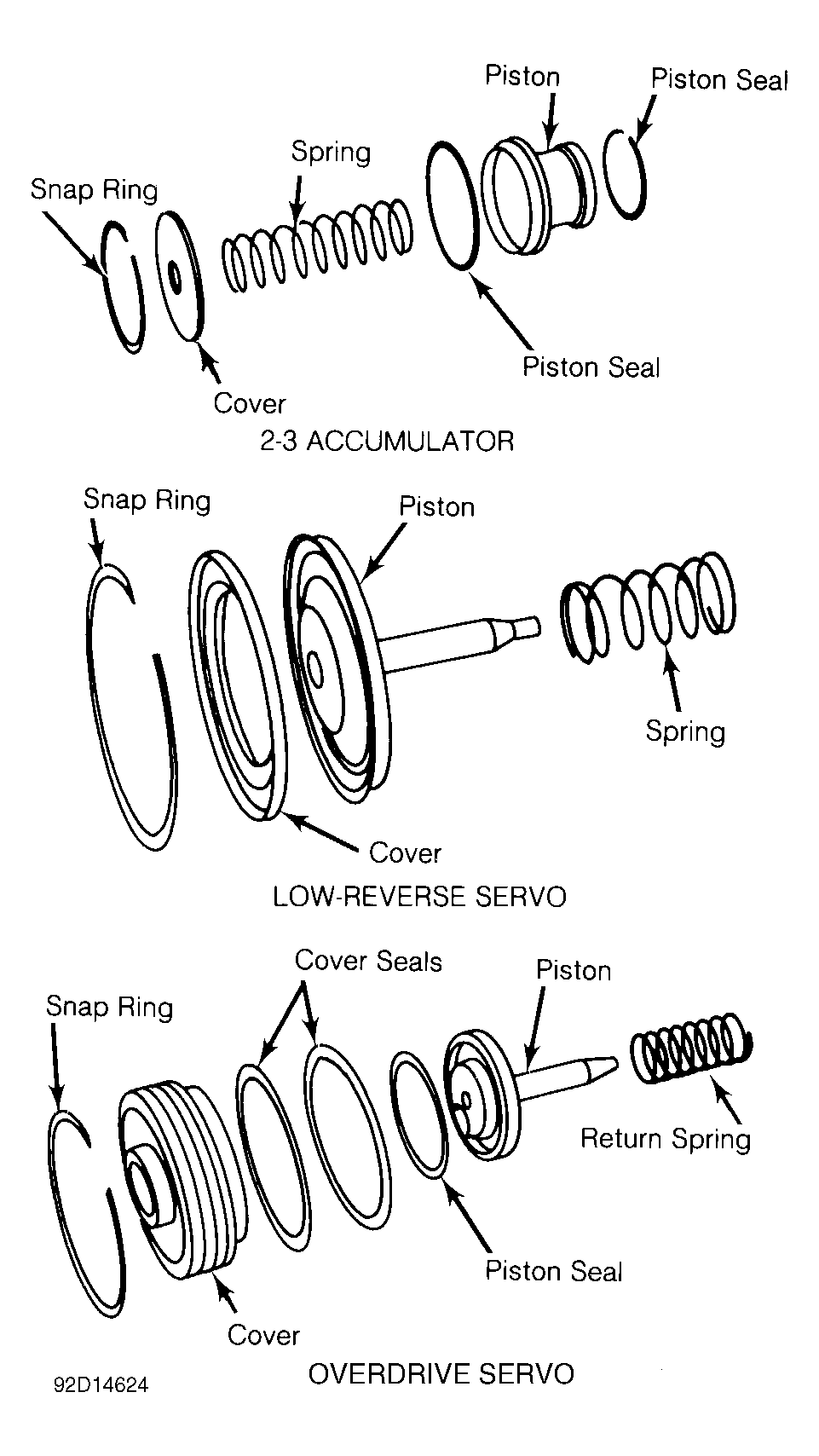

Inspect sealing edge on both servo cover and piston. Replace cover or piston, if necessary. Ensure servo piston rod length is same as the one removed. See Figure .
