Diagnosis - AOD-E: Wiring Diagram

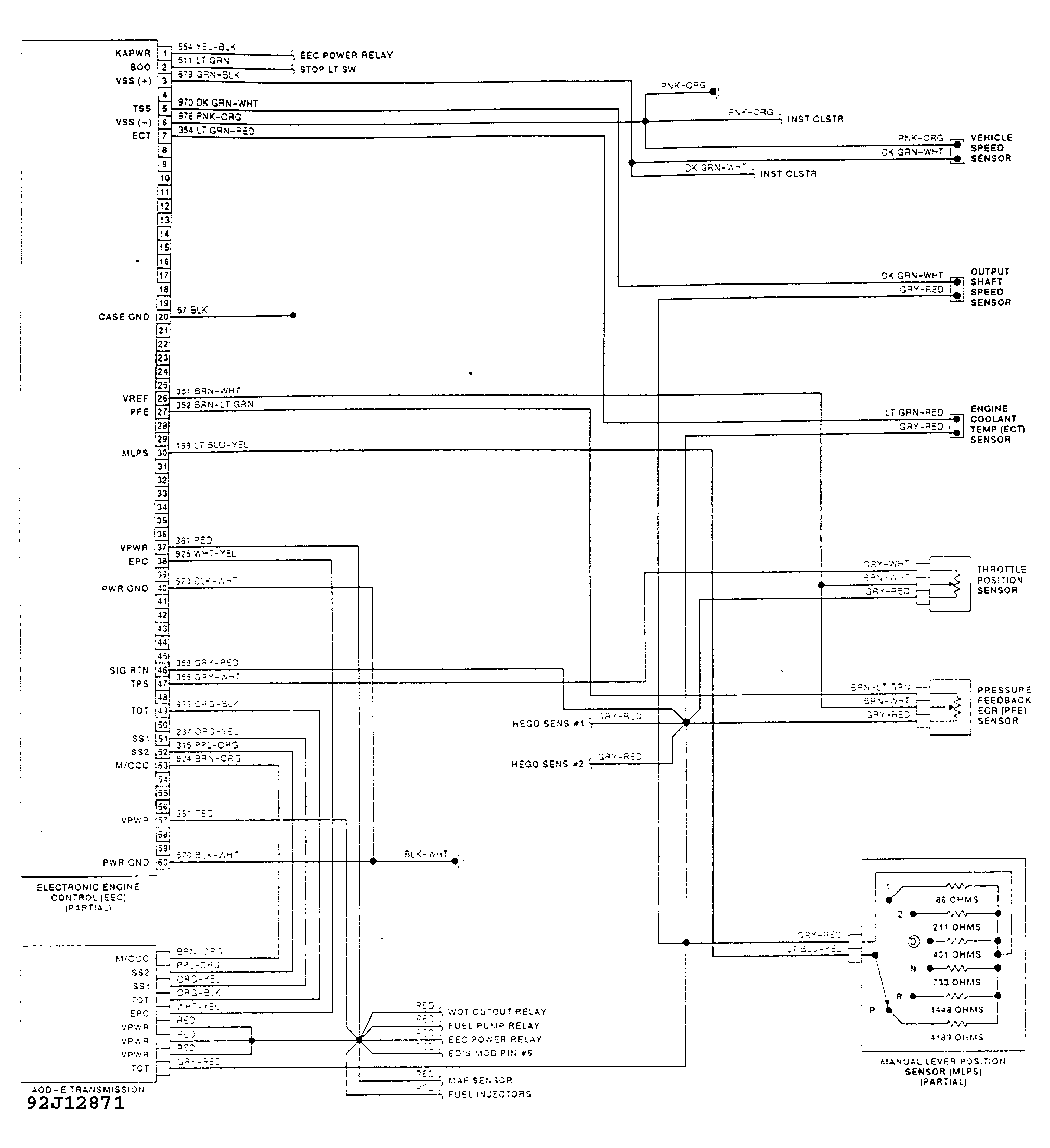

Fig 1: AOD-E Wiring Diagram (Town Car Shown; Others Similar)

G92J12871
