Removal (Mustang)

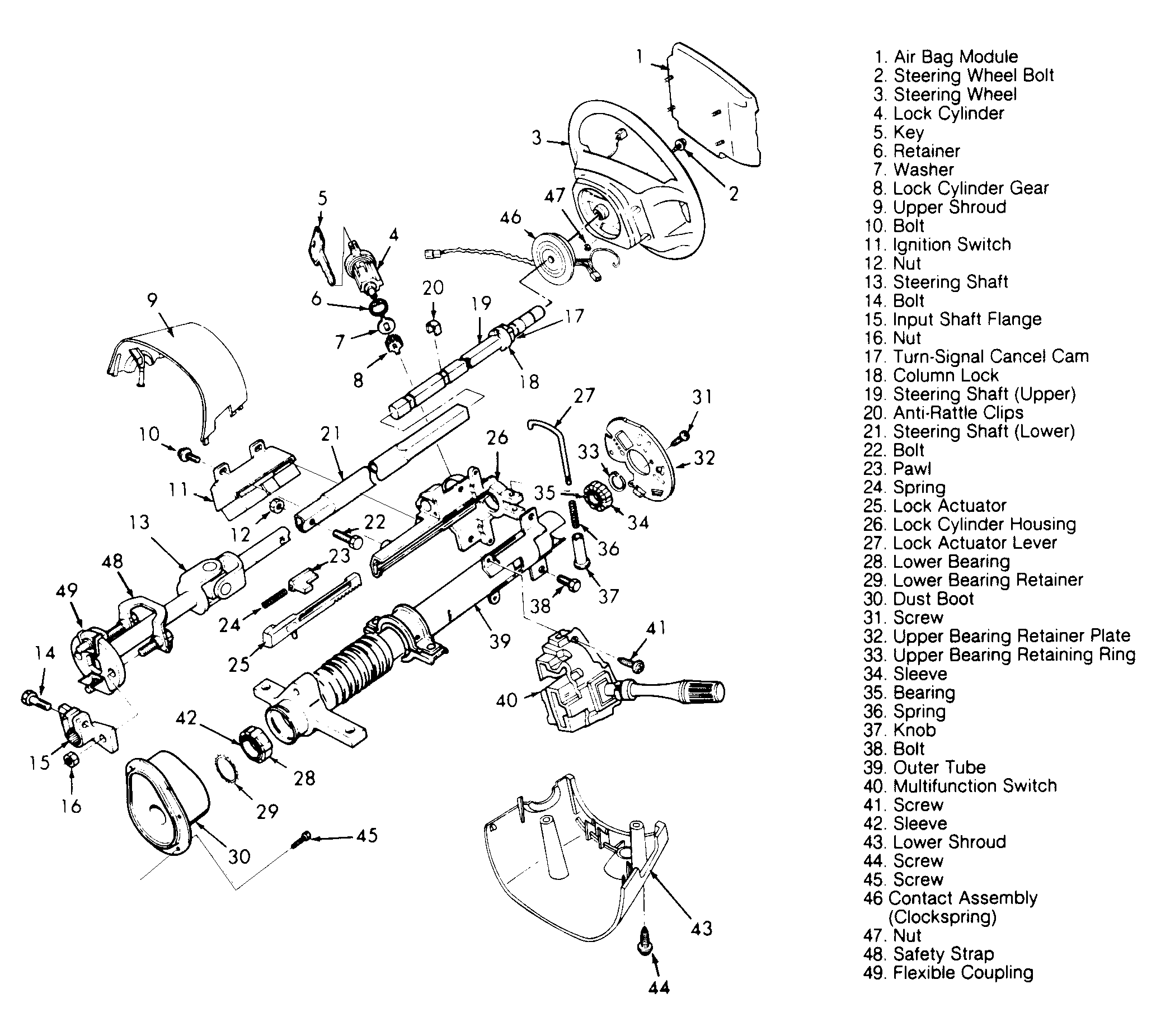

  1. Disconnect battery ground cable. On models with air bag, disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Remove 2 nuts retaining steering shaft flexible coupling to flange on input shaft. See Figure . Disengage metal safety strap and bolt assembly from flexible coupling.
  2. Remove upper and lower shrouds. Remove trim panel and hood release mechanism at knee level of instrument panel. Disconnect all electrical connectors from column. Remove 4 dust boot-to-floor panel screws at base of steering column.
  3. Remove 4 column-to-brake pedal support nuts. Lower column enough to clear mounting bolts and pull column out through hole in instrument panel.
