Repair Procedure

Cut shrink tubing 1" longer than butt connector. Slide shrink tubing onto one wire end first. Insert pre-stripped wire ends into proper size butt connector and crimp connector using appropriate crimping pliers. Slide shrink tubing over butt connector, leaving 1/2" of tubing on each side of connector. Using heat gun, hair dryer, or match, heat tubing until it shrinks and adhesive oozes from each end of tubing. Connection is now waterproofed.

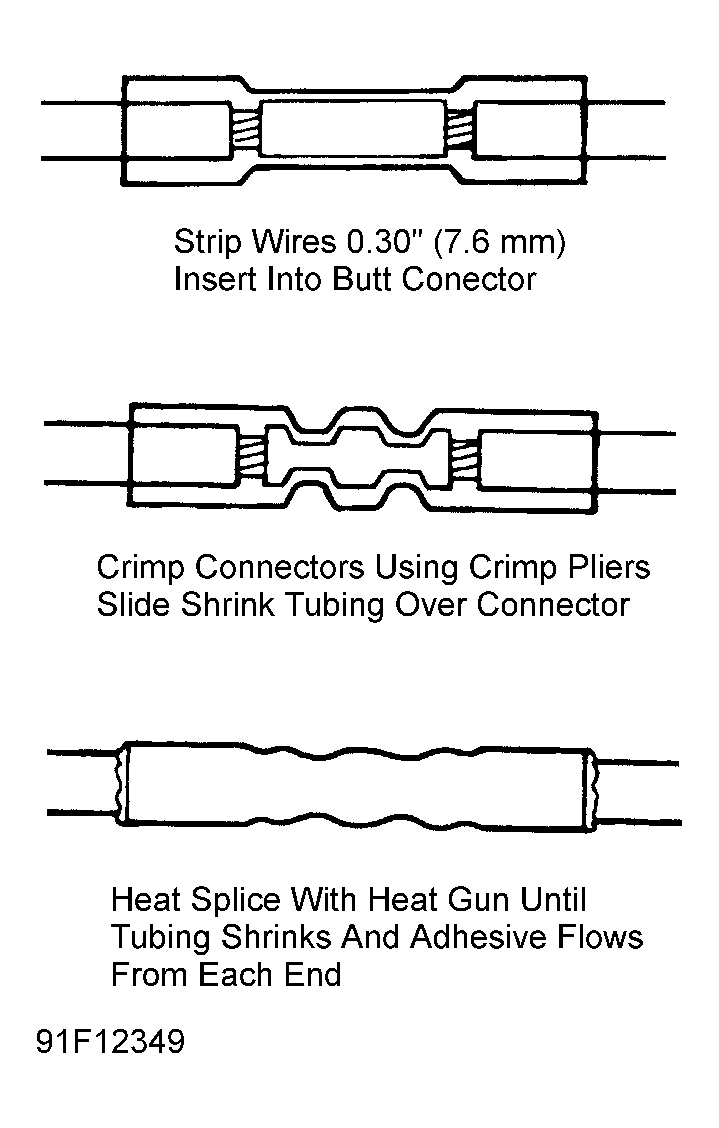

Fig 1: Repairing & Waterproofing Wiring Connections
G91F12349Courtesy of FORD MOTOR CO.
